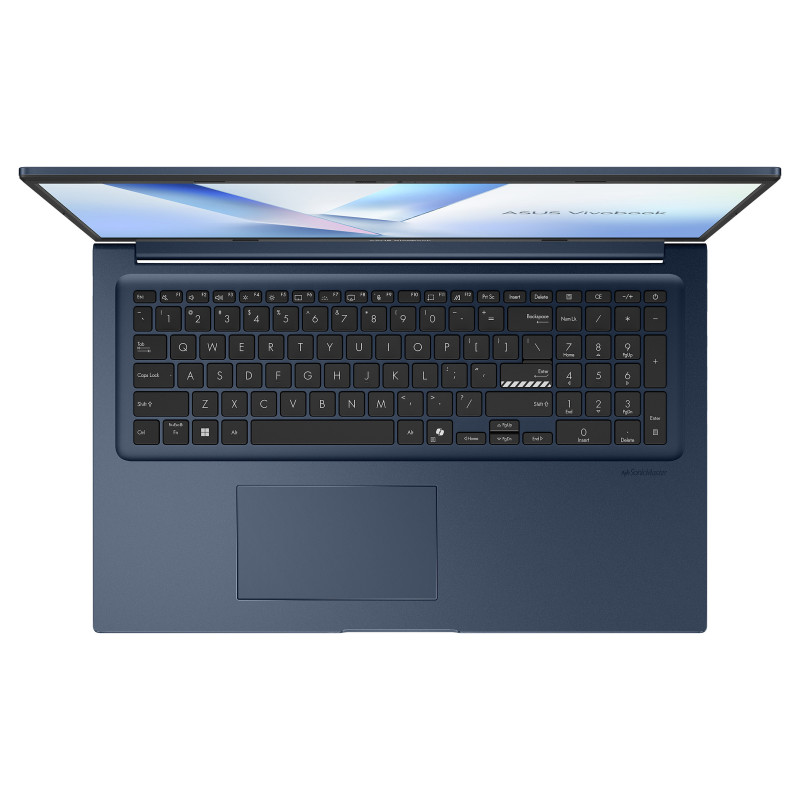

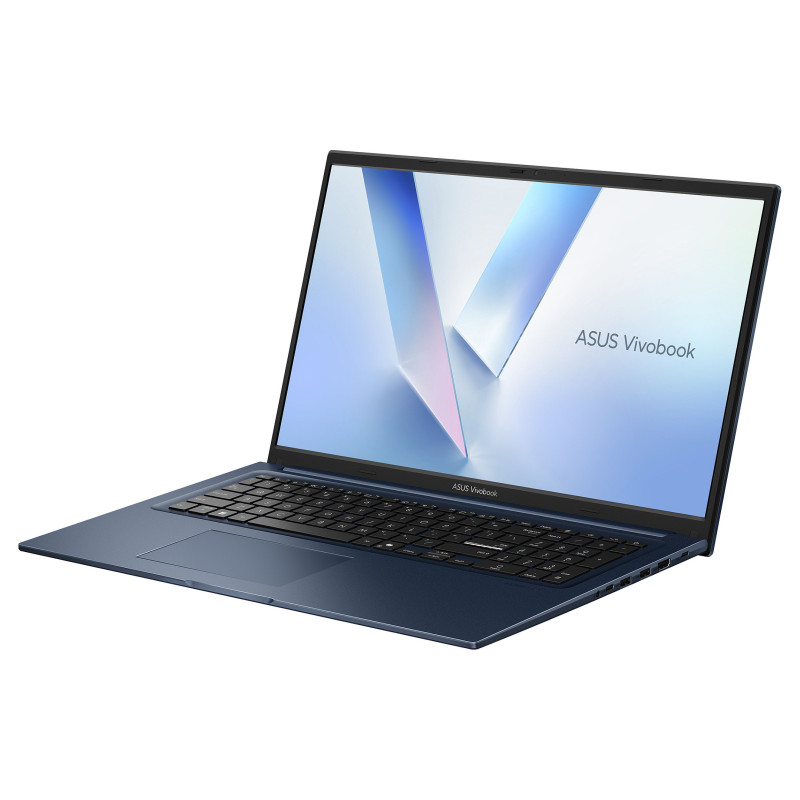

ASUS Vivobook 17 X1704MA-ISSAU215W

ASUS Vivobook 17 X1704MA-ISSAU215W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core 7, Processor model: 350. Display diagonal: 43.9 cm (17.3"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Home. Product colour: Blue. Weight: 2.1 kg

Make every day your day

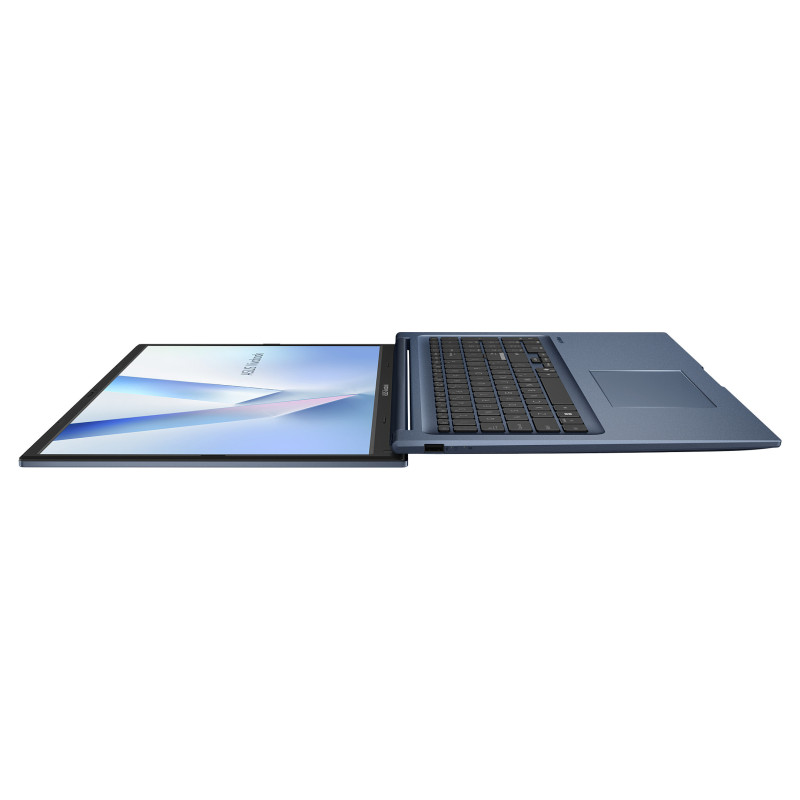

Turn everyday tasks into something special with Vivobook 17, your essential tool for getting things done easier, anywhere. It's completely user-friendly too, with its 180° lay-flat hinge and physical webcam shield. ASUS Antimicrobial Guard Plus protects frequently-touched surfaces from harmful bacteria, safeguarding your health. Make all your days more enjoyable with Vivobook 17!

Design

Colour name: Quiet Blue
Product type: Laptop
Product colour: Blue
Form factor: Clamshell
Housing material: Plastic
Display back cover material: Plastic
Market positioning: Home

Display

Display diagonal: 43.9 cm (17.3")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Panel type: IPS-Level
Feature: LED backlight
Native aspect ratio: 16:9
Feature: Anti-glare screen
Display brightness: 250 cd/m²
RGB colour space: NTSC
Colour gamut: 45%
Maximum refresh rate: 60 Hz

Processor

Processor manufacturer: Intel
Processor family: Intel Core 7
Processor generation: Intel Core (Series 3)
Processor model: 350
Processor cores: 6
Processor threads: 6
Processor boost frequency: 4.8 GHz
Performance cores: 2
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.8 GHz
Low Power Efficient-core Max Turbo Frequency: 3.6 GHz
Performance-core base frequency: 1.5 GHz
Low Power Efficient-core Base Frequency: 1400 MHz
Processor cache: 6 MB
Processor cache type: Smart Cache
Processor socket: FCBGA1516
Processor base power: 15 W
Maximum turbo power: 35 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: OpenVINO, Windows ML, WebNN, ONNX RT
NPU performance up to: 15 TOPs
GPU performance up to: 9 TOPs

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory form factor: SO-DIMM
Memory slots: 1x SO-DIMM
Maximum internal memory: 32 GB
Memory channels: Single-channel

Storage

Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Audio

Audio system: SonicMaster
Feature: Built-in microphone

Camera

Feature: Front camera
Front camera HD type: HD
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Antenna type: 1x1
Feature: Bluetooth
Bluetooth version: 5.3

Ports & interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
HDMI ports quantity: 1
HDMI version: 1.4
Feature: Combo headphone/mic port

Performance

Repairability index: 8.3

Keyboard

Pointing device: Touchpad
Feature: Numeric keypad

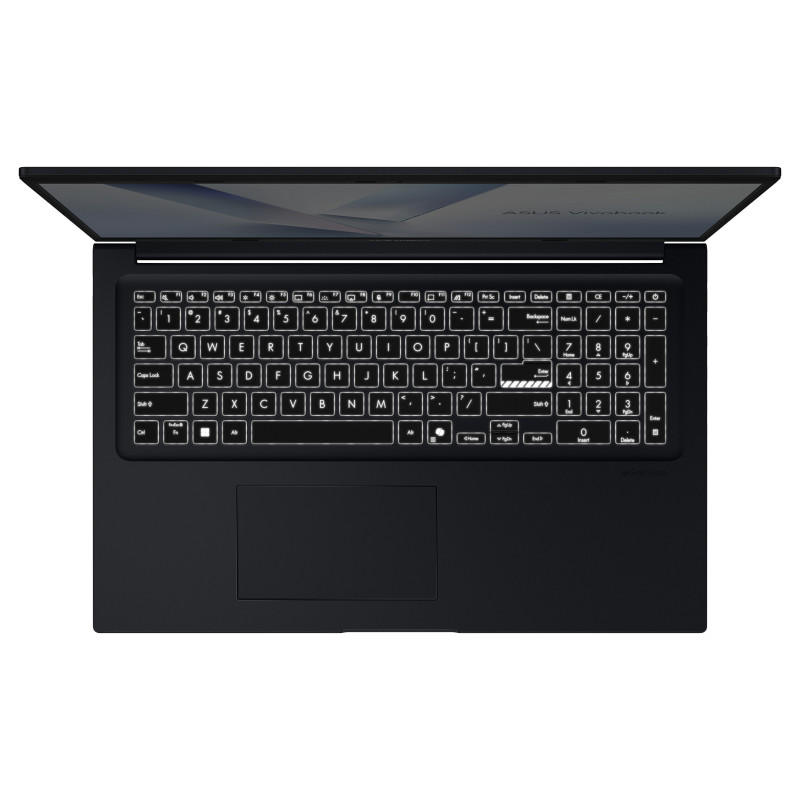

Feature: Keyboard backlit

Software

Operating system architecture: 64-bit
Trial software: 1-month trial for new Microsoft 365 customers. Credit card required. McAfee® 30 days free trial
Operating system installed: Windows 11 Home

Battery

Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 3
Battery capacity: 50 Wh

Power

AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
Feature: USB Type-C charging port
USB Type-C required charging power (min): 33 W
USB Type-C required charging power (max): 48 W
Feature: USB Power Delivery (USB PD)

Security

Feature: Trusted Platform Module (TPM)
Feature: Password protection
Password protection type: BIOS, User

Certificates

Compliance certificates: REACH

Weight & dimensions

Width: 399.3 mm
Depth: 254.3 mm
Height: 19.9 mm
Weight: 2.1 kg

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
