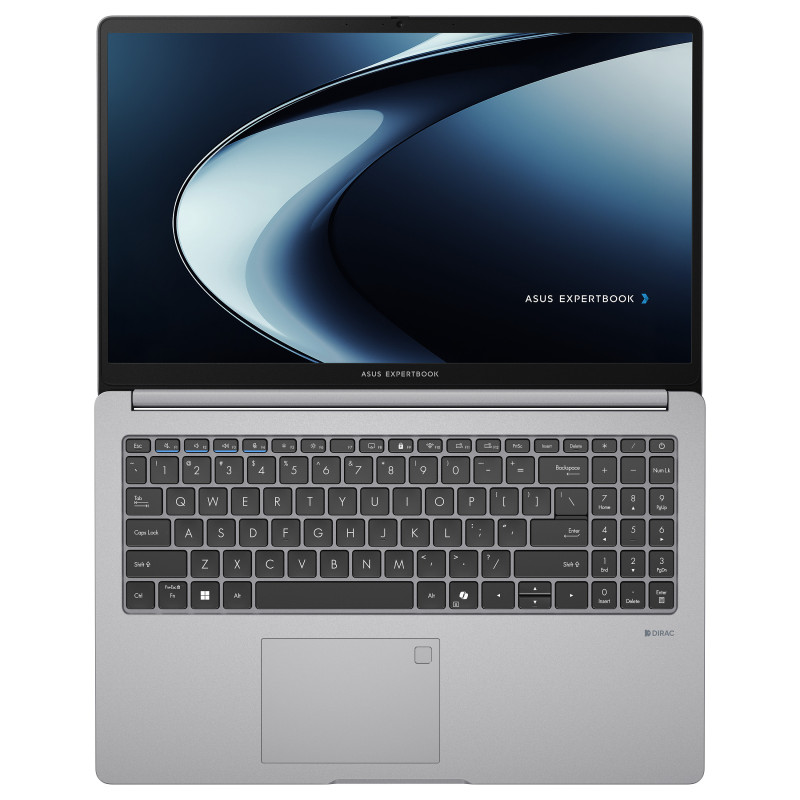

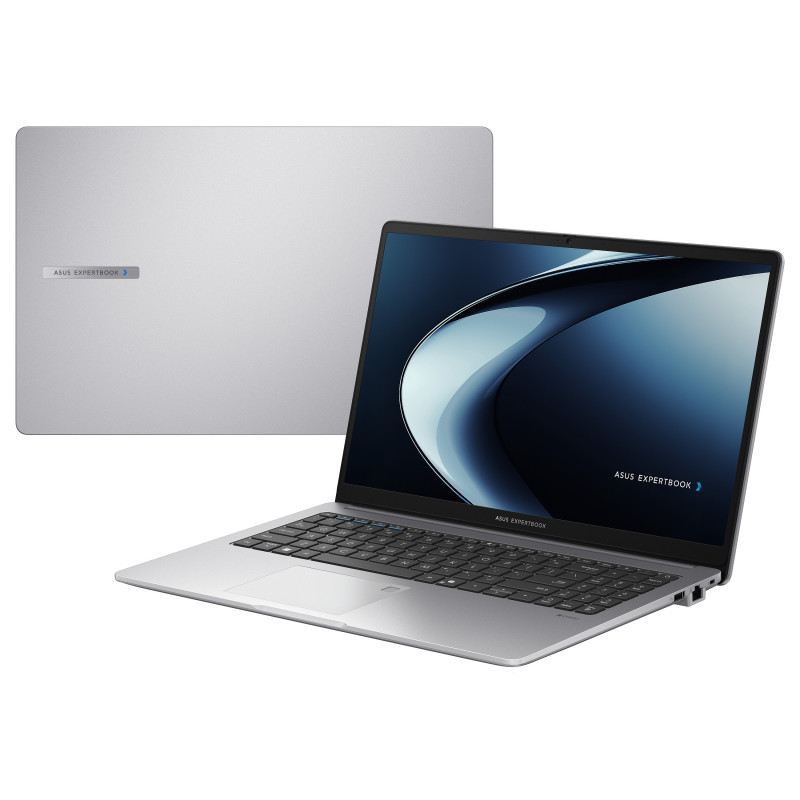

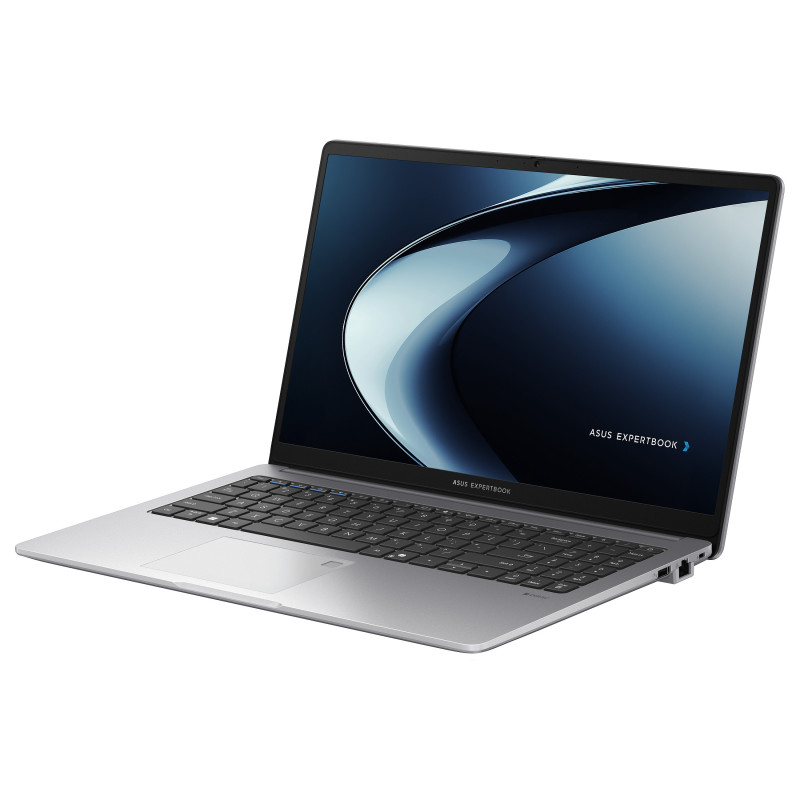

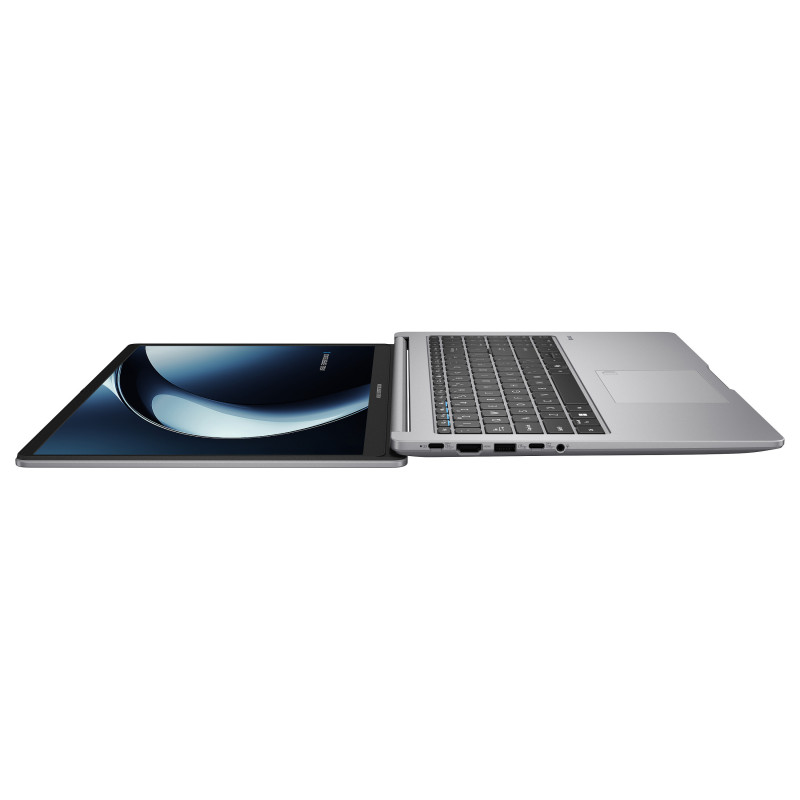

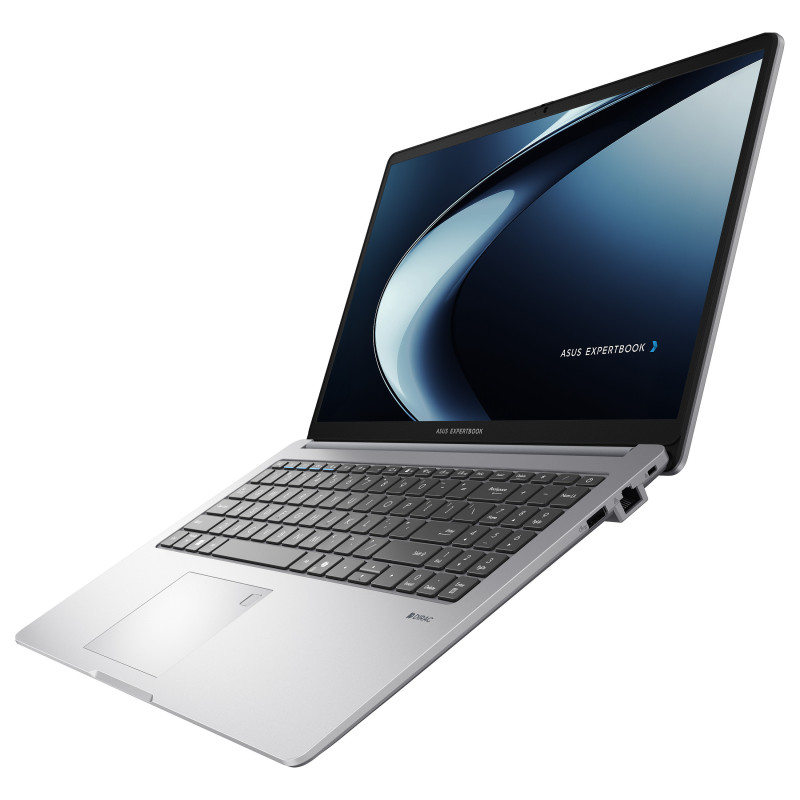

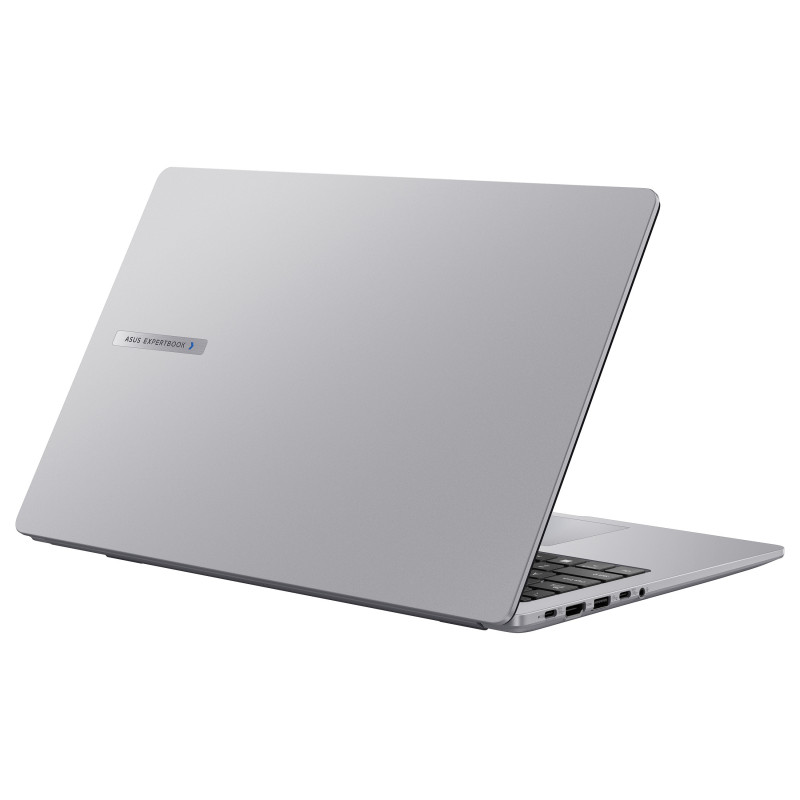

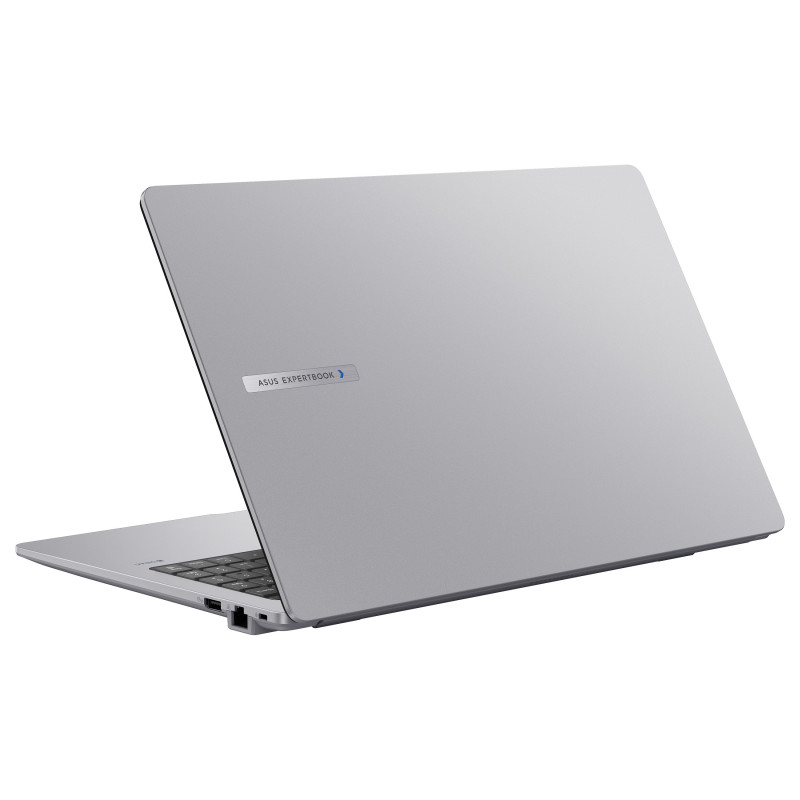

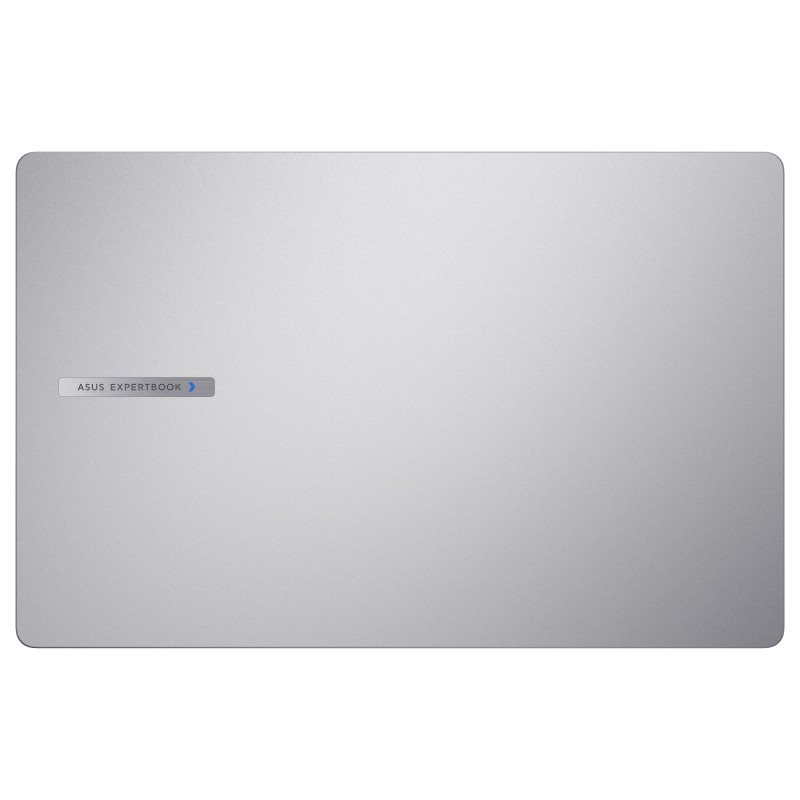

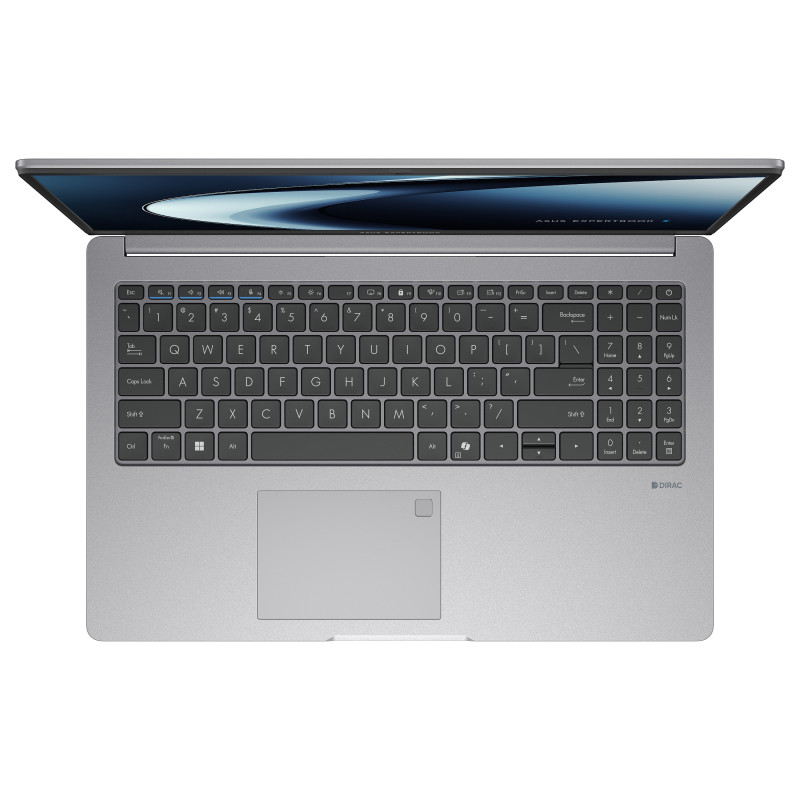

ASUS ExpertBook P1 PM1503CDA-S70262

ASUS ExpertBook P1 PM1503CDA-S70262. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen™ 7, Processor model: 170, Processor frequency: 3.2 GHz. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon 680M. Product colour: Grey. Weight: 1.81 kg

Elevate your efficiency, anywhere
The compact and elegant ASUS ExpertBook P1 weighs a mere 1.6kg1 with a breathtaking new design, and features exceptional efficiency to supercharge your productivity. It's engineered to deliver superb performance powered by an up to AMD® Ryzen™ 7 processor and packs up to 1TB capacity with dual SSDs. ASUS ExpertBook P1 is also engineered to protect your privacy and business data via a built-in fingerprint sensor and integrated TPM 2.0 chip2 — your reliable, trusted traveling companion, ready to complete every task on time.

Design

Colour name: Misty Grey
Product type: Laptop
Product colour: Grey
Form factor: Clamshell
Market positioning: Work

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Panel type: IPS-Level
Feature: LED backlight
Native aspect ratio: 16:9
Feature: Anti-glare screen
Display brightness: 300 cd/m²
RGB colour space: NTSC
Colour gamut: 45%
Maximum refresh rate: 60 Hz

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 7
Processor generation: AMD Ryzen 100 Series
Processor model: 170
Processor cores: 8
Processor threads: 16
Processor boost frequency: 4.75 GHz
Processor frequency: 3.2 GHz
Processor cache type: L2 & L3
L3 cache: 16 MB
L2 cache: 4 MB

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory form factor: SO-DIMM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Maximum internal memory: 64 GB

Storage

Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon
On-board graphics card model: AMD Radeon 680M

Audio

Audio system: Dirac
Feature: Built-in microphone

Camera

Feature: Front camera
Front camera resolution: 1920 x 1080 pixels
Front camera HD type: Full HD
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Feature: Mobile network connection
Antenna type: 2x2
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.4

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 1.4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode

Keyboard

Pointing device: Touchpad
Feature: Numeric keypad
Keyboard layout: QWERTZ
Keyboard language: German

Software

Operating system installed: No

Battery

Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 3
Battery capacity: 50 Wh

Power

AC adapter power: 65 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
AC adapter output current: 3.25 A
AC adapter output voltage: 20 V
Feature: USB Type-C charging port
Feature: USB Power Delivery (USB PD)

Security

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Fingerprint reader
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Feature: Password protection
Password protection type: BIOS, User

Certificates

Compliance certificates: REACH

Sustainability

Sustainability certificates: ENERGY STAR, EPEAT Climate +, Forest Stewardship Council (FSC) Recycled, TCO

Weight & dimensions

Width: 359.5 mm
Depth: 232.2 mm
Height: 19.9 mm
Weight: 1.81 kg

Packaging data

Package width: 440 mm
Package depth: 65 mm
Package height: 290 mm

Packaging content

Feature: AC adapter included
