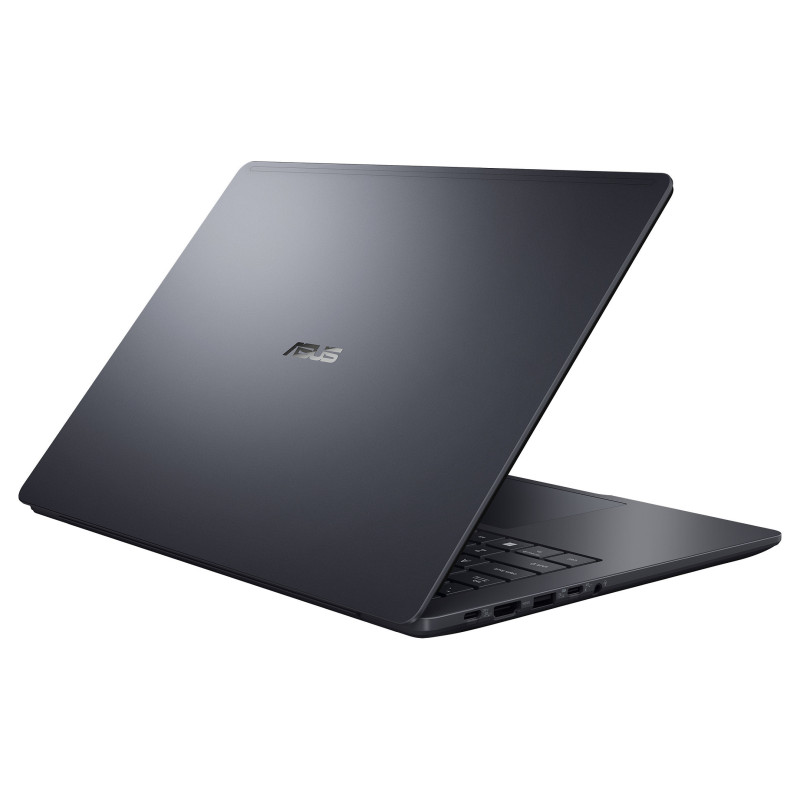

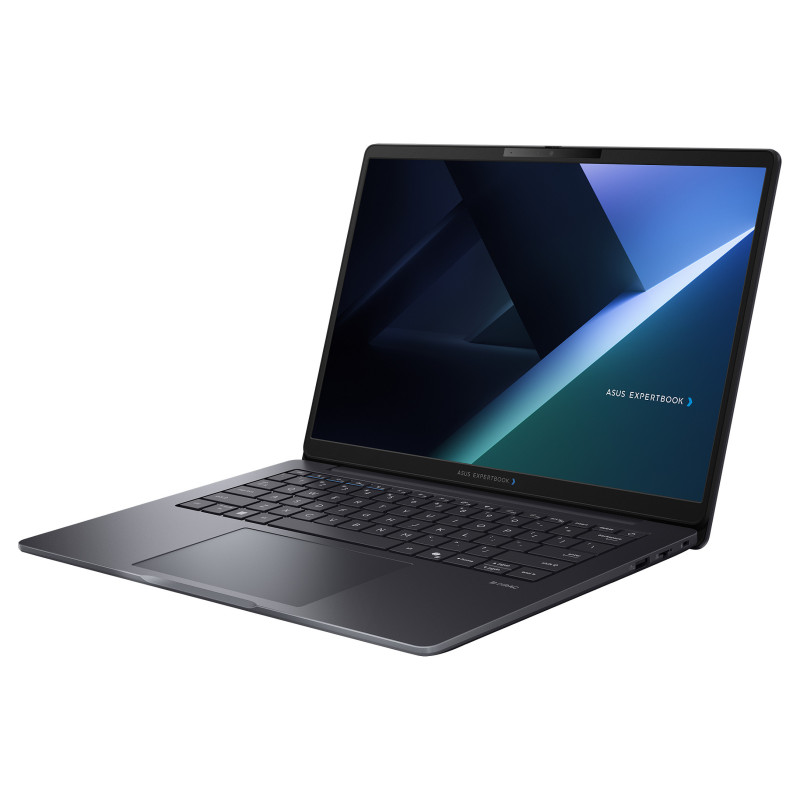

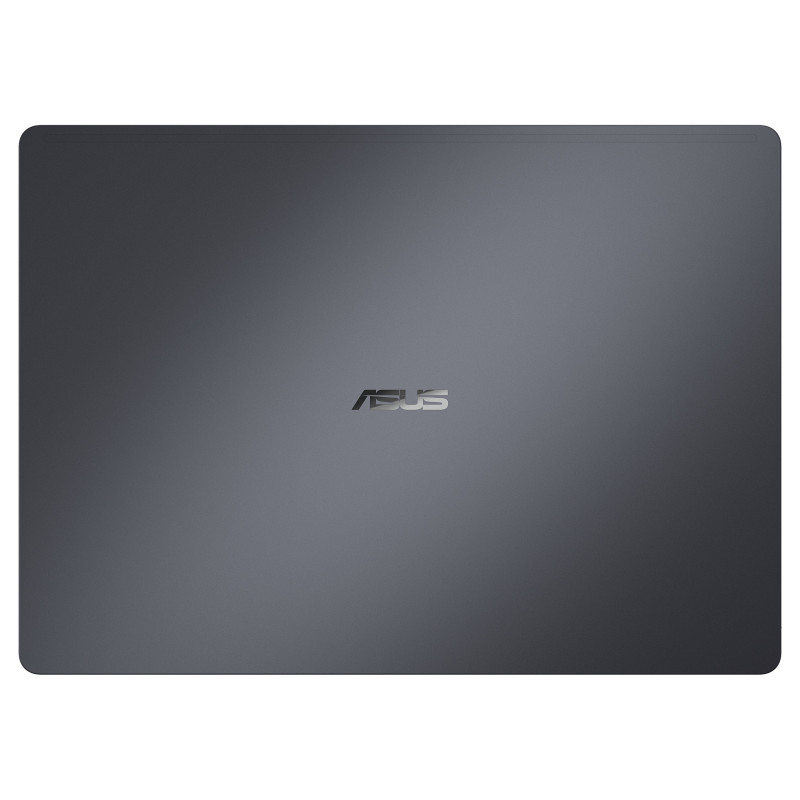

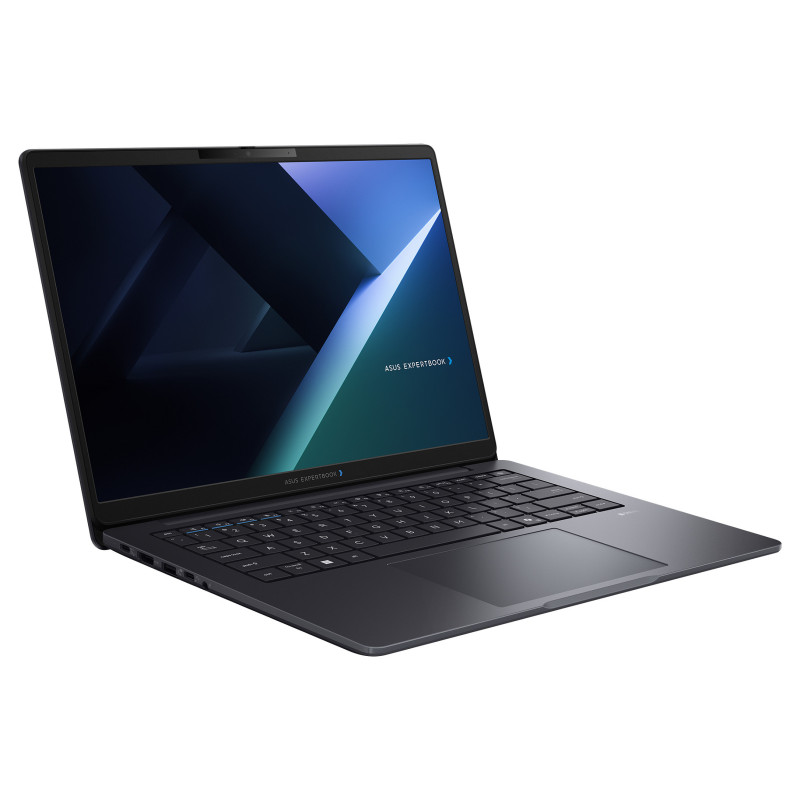

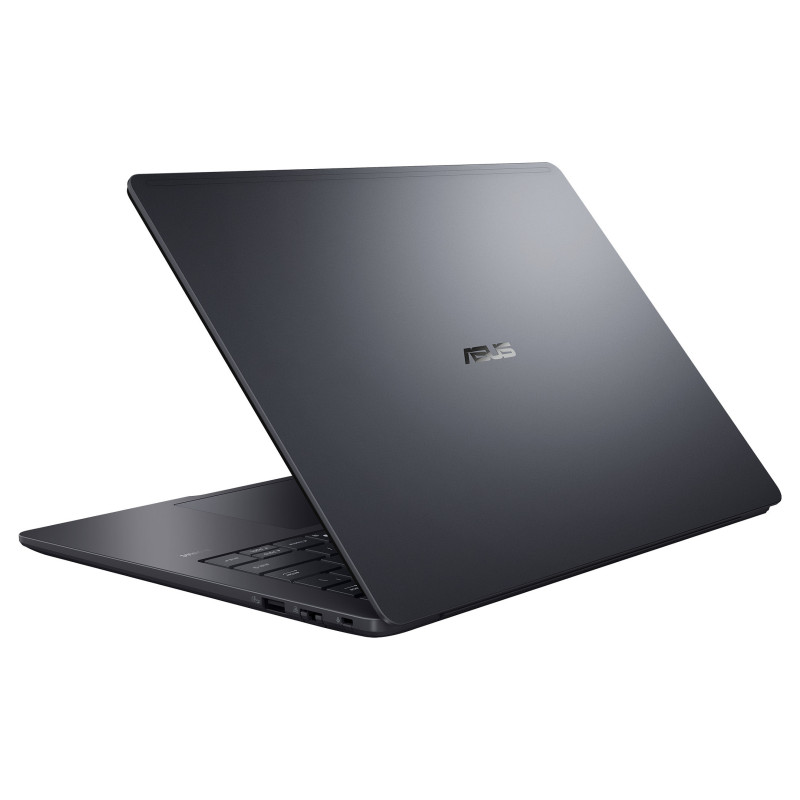

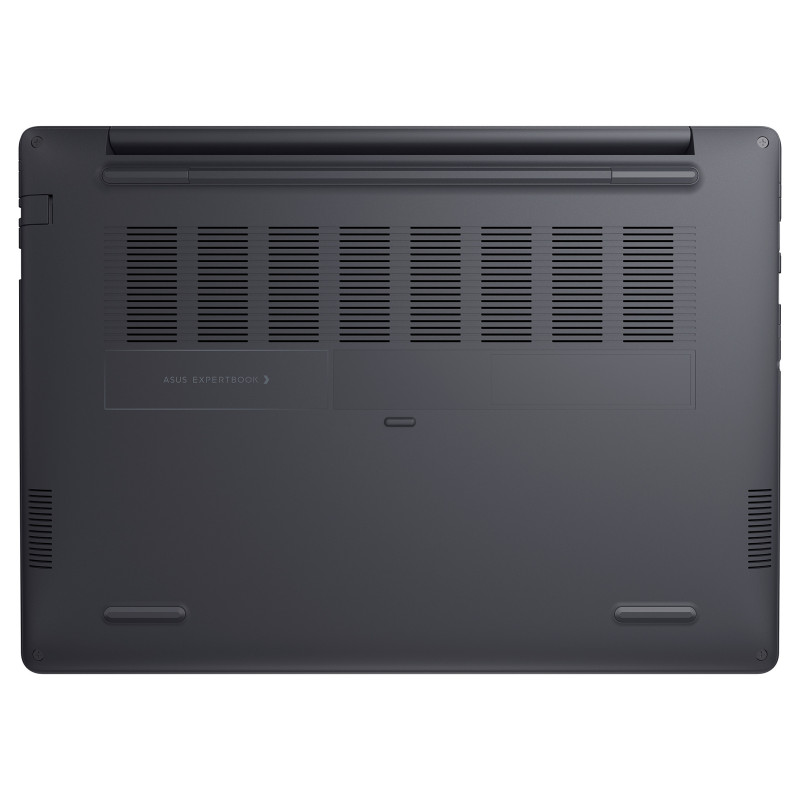

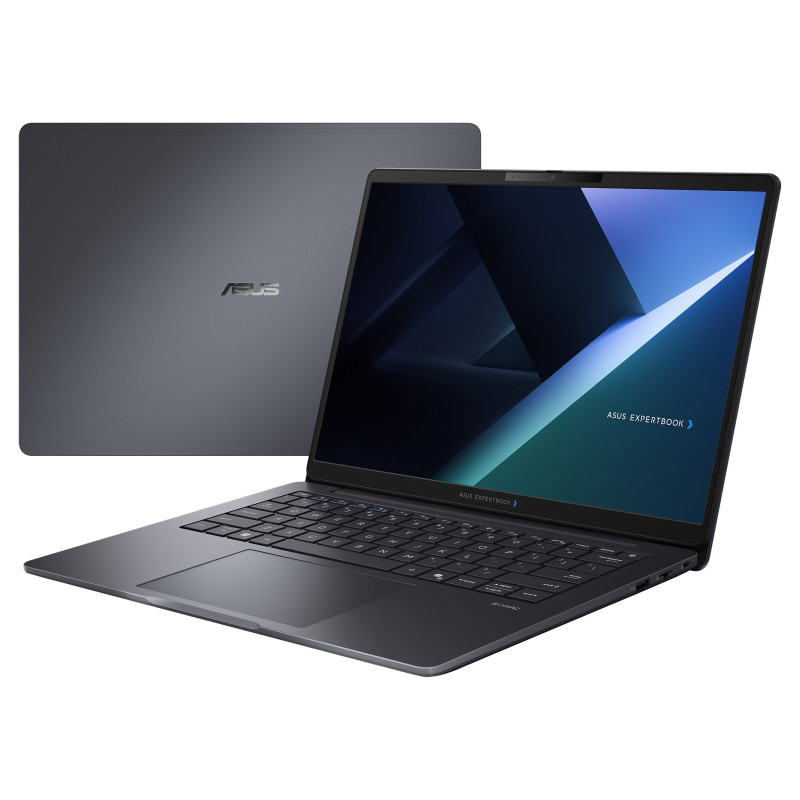

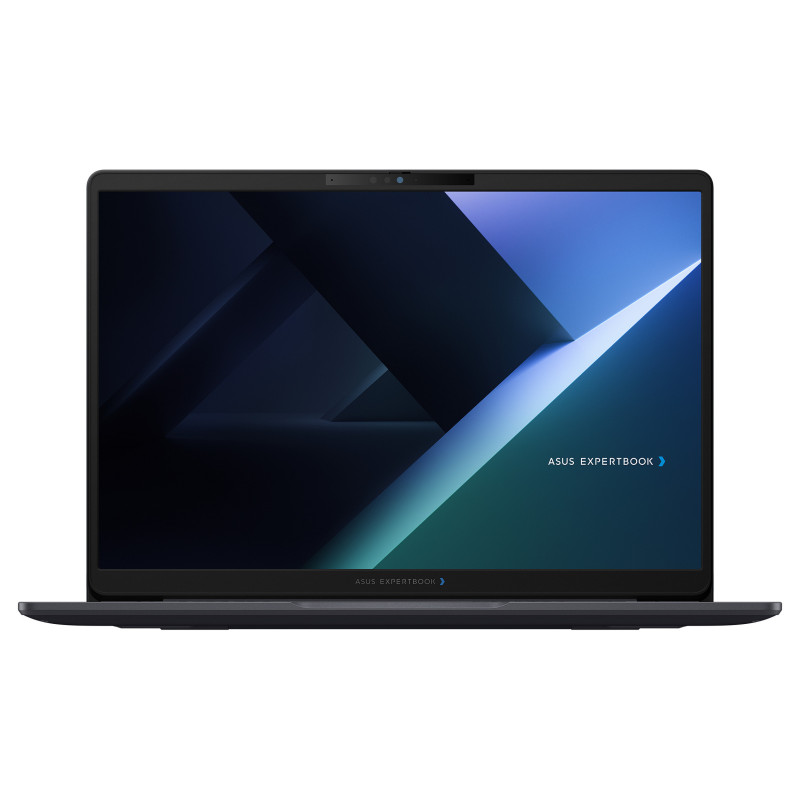

ASUS ExpertBook BM3406CHA-LY0064X

ASUS ExpertBook BM3406CHA-LY0064X. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen™ 5, Processor model: 220, Processor frequency: 12 GHz. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 740M. Operating system installed: Windows 11 Pro. Product colour: Grey

Tailored Performance for Every Business
Expertly crafted for modern professionals, the ASUS ExpertBook B3 G2 (14" AMD) elevates a true Copilot+ PC1 productivity with powerful AMD Ryzen™ AI 9 HX processor with up to NPU 55 TOPS2 for advanced AI-driven efficiency. Enjoy seamless multitasking and extended battery lifespan, letting you work uninterrupted all day. The ASUS ExpertBook B3 G2 provides enhanced durability, while enterprise-grade security features safeguard your confidential data. Sleek, lightweight, and protected by a robust metal cover, ASUS ExpertBook B3 G2 empowers you to stay connected, efficient, and professional wherever your work takes you.

Design

Colour name: Gentle Grey
Product type: Laptop
Product colour: Grey
Form factor: Clamshell
Housing material: Aluminium
Display back cover material: Plastic
Market positioning: Work

Display

Display diagonal: 35.6 cm (14")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Panel type: IPS-Level
Feature: LED backlight
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 300 cd/m²
RGB colour space: NTSC
Colour gamut: 45%

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 5
Processor generation: AMD Ryzen 200 Series
Processor model: 220
Processor cores: 6
Processor threads: 12
Processor boost frequency: 4.9 GHz
Processor frequency: 12 GHz
Processor cache type: L2 & L3
L3 cache: 16 MB
L2 cache: 6 MB

Neural processor unit (NPU)

Feature: Copilot+ PC
Neural processor unit (NPU): AMD Ryzen AI
Total processor performance up to: 59 TOPs
NPU performance up to: 50 TOPs

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory form factor: SO-DIMM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Maximum internal memory: 64 GB

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon Graphics
On-board graphics card model: AMD Radeon 740M

Audio

Audio system: Dirac
Feature: Built-in microphone

Camera

Feature: Front camera
Front camera resolution: 1920 x 1080 pixels
Front camera HD type: Full HD
Feature: Infrared (IR) camera
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.4

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB4 Gen 3x2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode

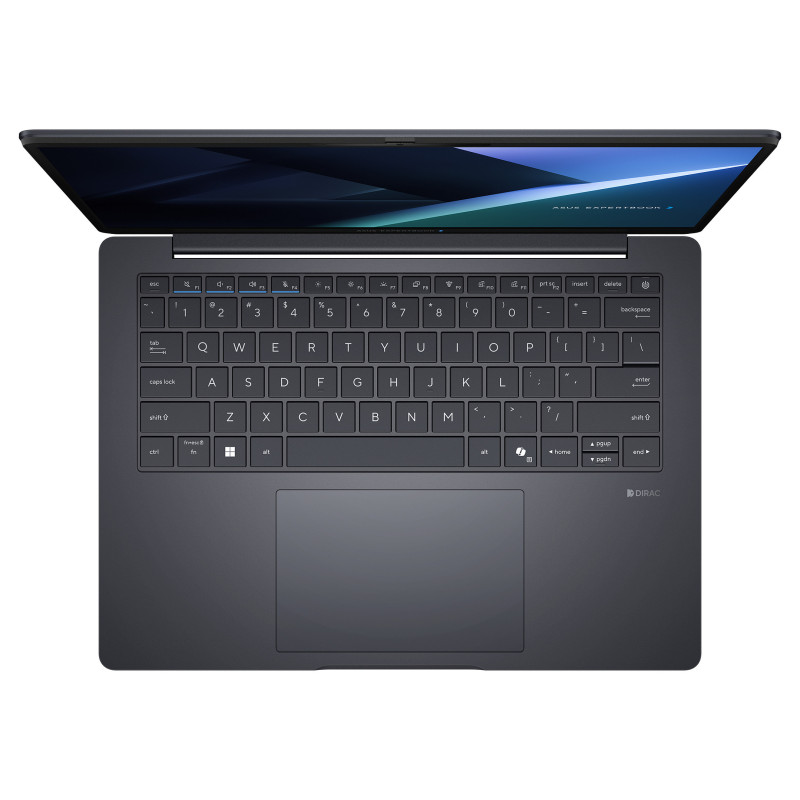

Keyboard

Pointing device: Touchpad
Feature: Keyboard backlit
Keyboard layout: QWERTZ
Keyboard language: German
Feature: Copilot key

Software

Operating system architecture: 64-bit
Feature: Microsoft Copilot
Operating system installed: Windows 11 Pro

Battery

Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 3
Battery capacity: 50 Wh

Power

AC adapter power: 65 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
AC adapter output current: 3.25 A
AC adapter output voltage: 20 V
Feature: USB Type-C charging port
USB Type-C required charging power (min): 55 W
USB Type-C required charging power (max): 65 W
Feature: USB Power Delivery (USB PD)

Security

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Fingerprint reader
Feature: Face recognition
Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Feature: Password protection

Sustainability

Sustainability certificates: Forest Stewardship Council (FSC) Recycled

Weight & dimensions

Width: 316.2 mm
Depth: 227.8 mm
Height (front): 1.07 cm
Height (rear): 1.89 cm
Weight: 1.47 kg

Packaging data

Package width: 429 mm
Package depth: 65 mm
Package height: 270 mm

Packaging content

Feature: AC adapter included
