Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.

Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.

Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.

Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.

HARDWARE FEATURES

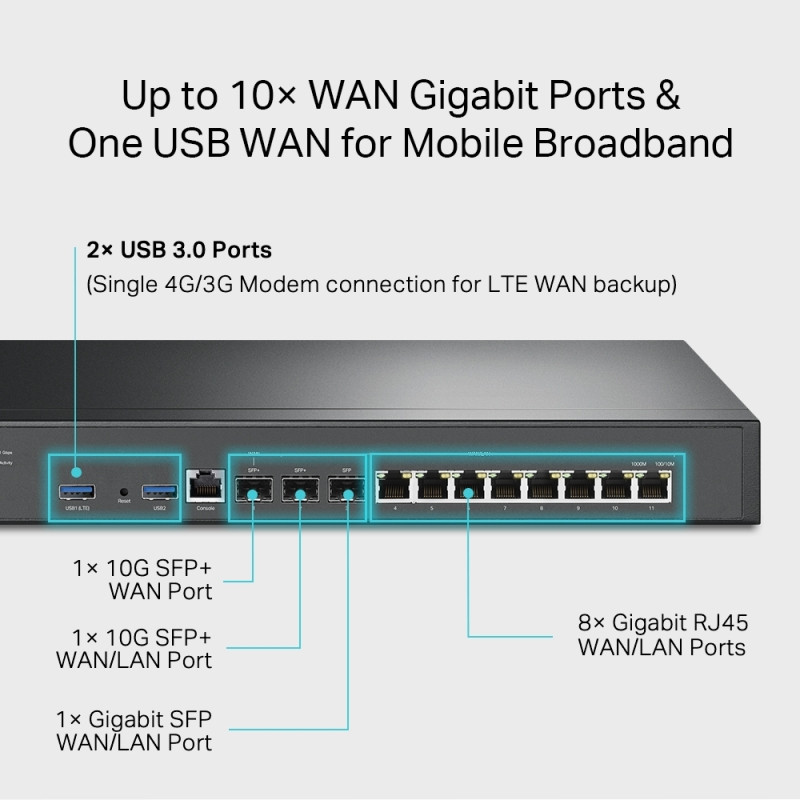

Interface	• 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) • 1× 1GE SFP WAN/LAN Ports • 8× 1GE RJ45 WAN/LAN Ports • 1× RJ45 Console Ports • 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
Button	Reset Button

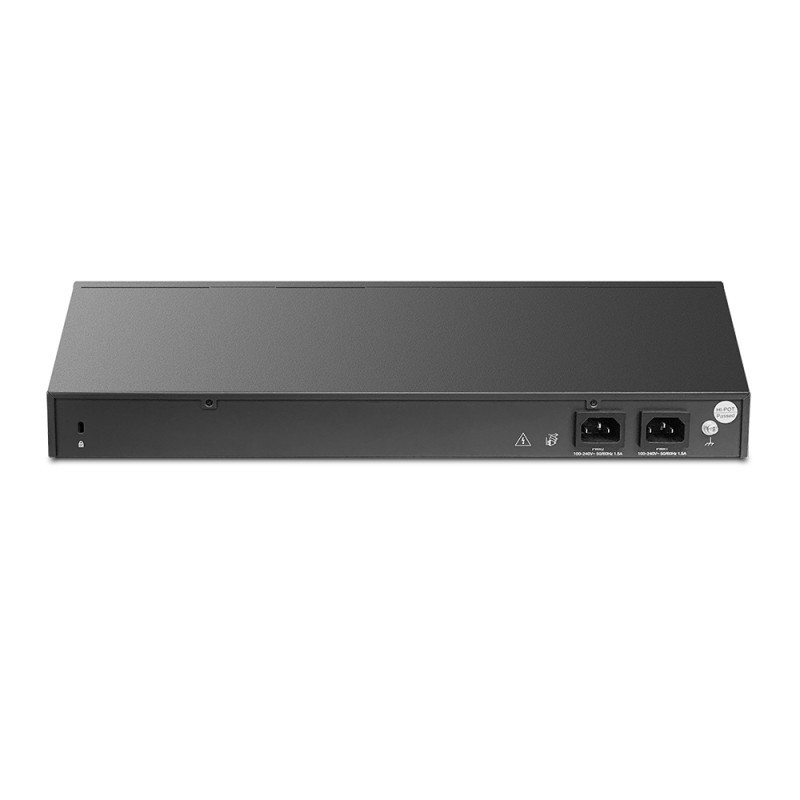

Power Supply	Redundant Dual Power Supplies (100-240 VAC, 50/60 Hz)
Flash	4MB SPI NOR + 256 MB NAND
DRAM	4 GB DDR4
LED	PWR, SYS, WAN, LAN, USB, FAN
Dimensions ( W x D x H )	17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Max Power Consumption	• 26.36 W (with USB 3.0 connected) • 19.12 W (without USB 3.0 connected)

PERFORMANCE
Concurrent Session	2,300,000
New Sessions /Second	20,000
NAT (Static IP)	• Upload: 9445.82 Mbps • Download: 9449.26 Mbps
NAT(DHCP)	• Upload: 9426.83 Mbps • Download: 9426.20 Mbps
NAT(PPPoE)	• Upload: 9413.96 Mbps • Download: 9102.01 Mbps
NAT (L2TP)	• Upload: 4230.62 Mbps • Download: 4169.53 Mbps
NAT (PPTP)	• Upload: 3933.86 Mbps • Download: 3821.97 Mbps
64 Byte Packet Forwarding Rate	• Upload: 1080 Mbps • Download: 1030 Mbps
IPsec VPN Throughput	• SHA1-AES256: 2140.45 Mbps • SHA2-AES256: 2080.20 Mbps
OpenVPN	1665.64 Mbps
L2TP VPN Throughput	• Unencrypted: 5013.50 Mbps • Encrypted: 2274.74 Mbps
SSL VPN Throughput	1511.10 Mbps

BASIC FUNCTIONS
WAN Connection Type	• Static/Dynamic IP • PPPoE • PPTP • L2TP • 6to4 Tunnel • Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone	Modify WAN/LAN MAC Address*4
DHCP	• DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP • Multi-IP Interfaces
IPv6	WAN Connection
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy

ADVANCED FUNCTIONS
ACL	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing • Policy Routing
Bandwidth Control	• IP/Port-based Bandwidth Control • Guarantee Limited Bandwidth
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing*5, Failover) • Online Detection
NAT	• One-to-One NAT5 • Multi-Net NAT • Virtual Server • Port Triggering5 • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Security	• SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management
Session Limit	IP-based Session Limit

VPN
SSL VPN	• SSL VPN Server • SSL VPN Client • 500 SSL VPN Tunnels
IPsec VPN	• 300 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (32)*6 • 300 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (32)*6 • 300 Tunnels (Shared with PPTP) • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (10)*6 • 110 OpenVPN Tunnels

SECURITY
Filtering	• WEB Group Filtering5 • URL Filtering • Web Security5
ARP Inspection	• Sending GARP Packets5 • ARP Scanning5 • IP-MAC Binding*5
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
Access Control	Source/Destination IP Based Access Control

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password2 • Hotspot（Local User / Voucher2 / SMS2 / Radius2） • External Radius Sever • External Portal Sever2 • Facebook Check-In2 • Instagram Follow*2

MANAGEMENT
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	• Web Management Interface • Remote Management • Export Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping Traceroute)5 • NTP Synchronize5 • Syslog Support
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• Omada 10G Multi-WAN Security Gateway ER8411 • Power Cord • Rack-Mount Kit • Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0-40 (32-104 ); • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing
