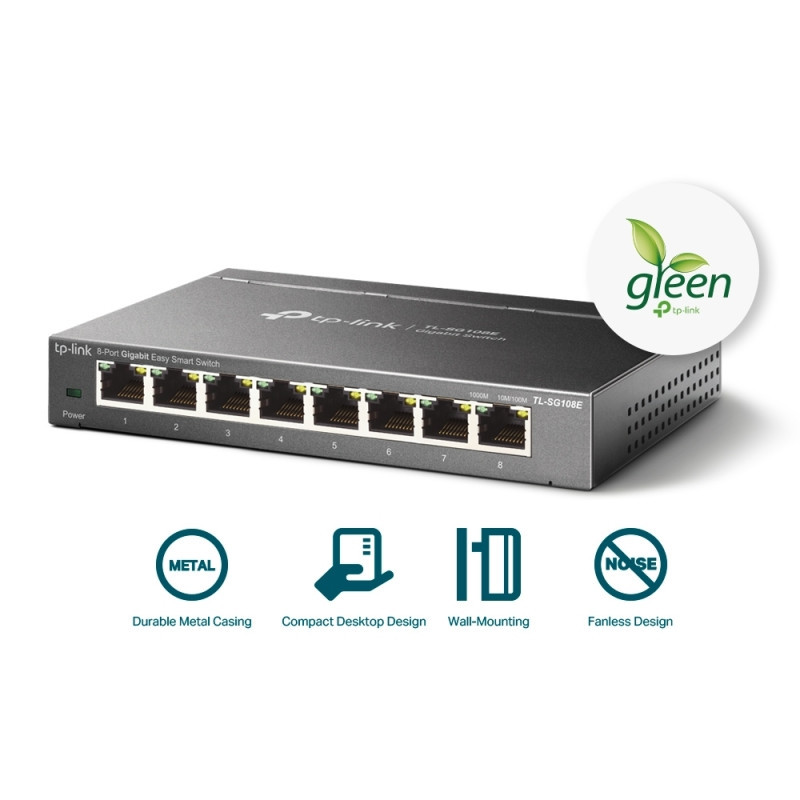

TP-LINK 8 prievadų gigabito nevaldomas „Pro“ komutatorius
Prekės kodas: 18-TL-SG108E

TP-LINK 8 prievadų gigabito nevaldomas „Pro“ komutatorius


TP-LINK 8 prievadų gigabito nevaldomas „Pro“ komutatorius

Prekės kodas: 18-TL-SG108E

TP-LINK 8 prievadų gigabito nevaldomas „Pro“ komutatorius


Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
29,65
Paskutinė prekė

Garantija
12 mėn.

Pristatymas iš Lietuvos
per 2 - 4*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*
Netaikoma

Overview


TP-Link's Unmanaged Pro Switches are ideal upgrade from unmanaged switches, designed for smalloffice and home office networks. The configuration is largely simplified by the web-based user interface and management utility. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG105E/TL-SG108E/TL-SG116E offers Port-based/802.1p/DSCP QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, making it an eco-friendly solution for your business network.


Easy to Use

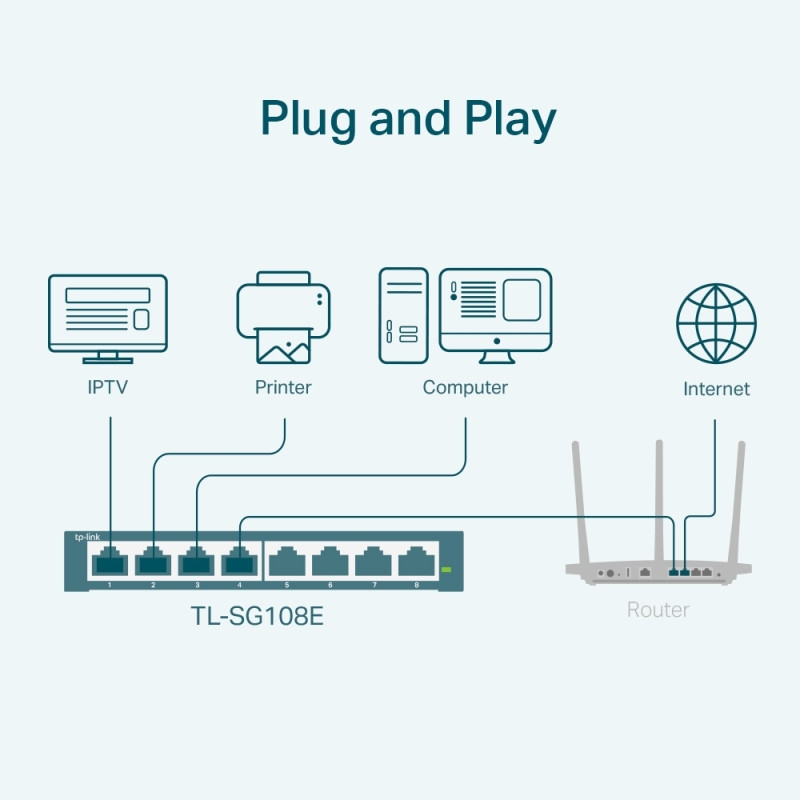

Connecting devices to Unmanaged Pro Switches is simple. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of network devices and intelligently adjusts settings for compatibility and optimal performance.


Durable Metal Casing


The interior components of Unmanaged Pro Switches are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, Unmanaged Pro Switches deliver switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.


Additional Software Features


Unmanaged Pro Switches excel not only in simple plug-and-play networks but also in more demanding environments. Network monitoring enables users to observe traffic behavior. Port Mirroring, Loop Prevention and Cable Diagnostics allow connection problems on your network to be identified and located. Administrators can designate the priority of traffic based on Port/802.1p/DSCP QoS, for example, to ensure that voice and video applications remain clear and lag-free. Combining security with network performance, Unmanaged Pro Switches support MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions.


Go Green with Your Ethernet


TP-Link's latest generation of Unmanaged Pro Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it's a win-win!












































HARDWARE FEATURES



Standards and Protocols



IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p



Interface

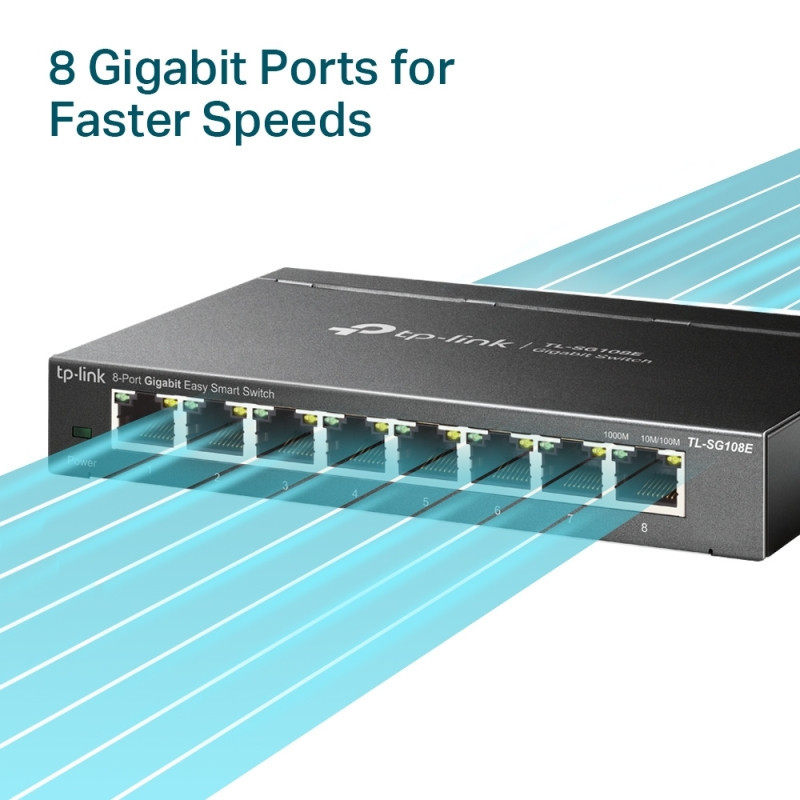

8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX



Network Media



10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)



Fan Quantity



Fanless



Power Supply

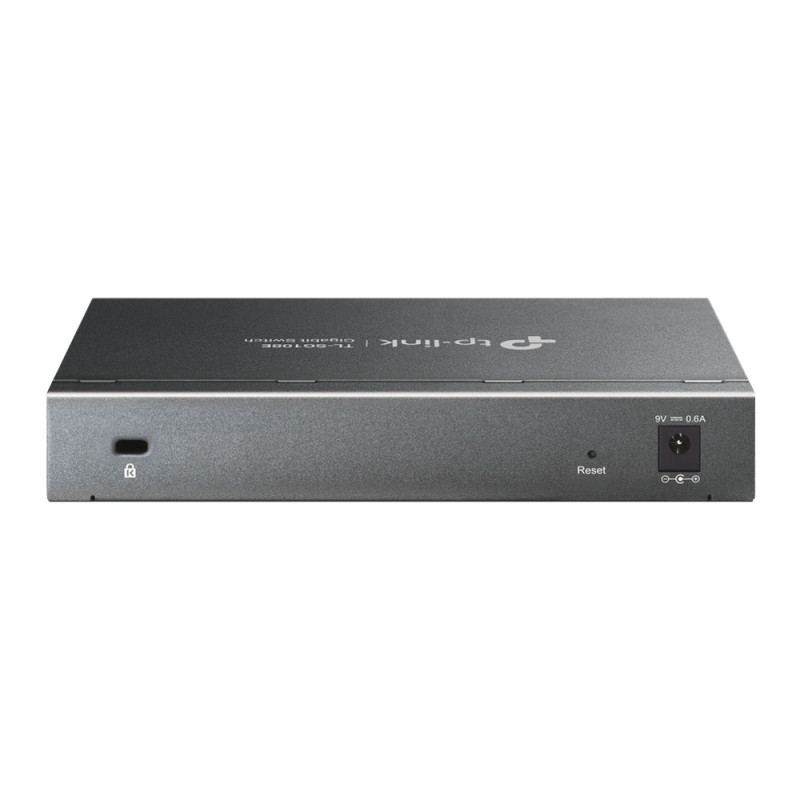

External Power Adapter(Output: 9VDC/0.6A)



Dimensions ( W x D x H )



6.2 x 4.0 x 1.0 in.

(158 x 101 x 25 mm)



Max Power Consumption



3.6W



Max Heat Dissipation



12.1 BTU/h
































PERFORMANCE



Switching Capacity



16Gbps



Packet Forwarding Rate



11.9Mpps



MAC Address Table



4K



Packet Buffer Memory



1.5Mb



Jumbo Frame



15KB




























SOFTWARE FEATURES



Quality of Service



Support Port-based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control



L2 Features



IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention



VLAN



Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN



Transmission Method



Store-And-Forward
























OTHERS



Certification



FCC, CE, RoHS



Package Contents



TL-SG108E

Power Cord

Installation Guide

Rubber Feet



Environment



Operating Temperature: 0 ~40 (32 ~104 )

Storage Temperature: -40 ~70 (-40 ~158 )

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
