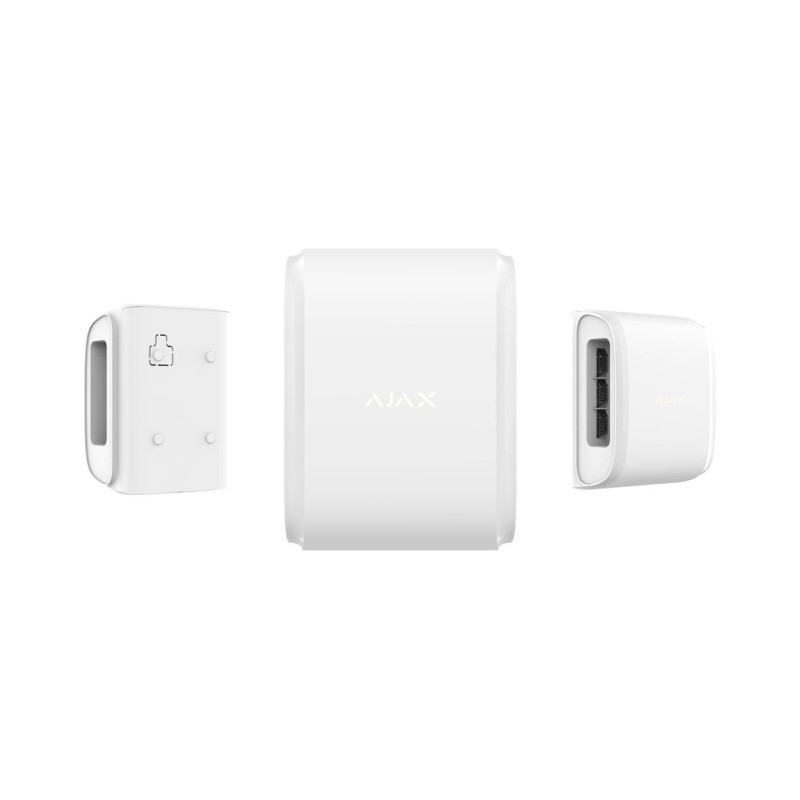

DETEKTORIUS WRL DVIGUBOS UŽUOLAIDOS / LAUKO BALTA 39055 AJAX
Prekės kodas: 2-4823114017353

DETEKTORIUS WRL DVIGUBOS UŽUOLAIDOS / LAUKO BALTA 39055 AJAX

Prekės kodas: 2-4823114017353
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
353,39 €
Prekė sandelyje

Garantija
24 mėn.

Pristatymas iš Lietuvos
per 3 - 5*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*

Protecting property boundaries
DualCurtain Outdoor controls your property perimeter without creating obstacles for people who are already inside. Two independent optical systems with narrow viewing sectors and flexible settings allow you to accurately adjust 30 meters of the detection zone, excluding possible sources of false alarms. The ELSA (Extended Live Signal Analysis) unique software reacts to intruders, screening out triggers like natural interferences and pets.

Detection
Engineering accuracy

On the sides of the detector there are two optical systems with narrow viewing sectors, each equipped with two PIR sensors. Thanks to temperature compensation, detection is always accurate. Sensor signals are analyzed by our new ELSA digital algorithm. Only if two sensors of the same optical system simultaneously capture human motion, the detector activates an alarm.

Efficiency in the near area
DualCurtain Outdoor features a technology to expand the protected area, which is unique among outdoor curtain motion detectors. When Near Area Detection is enabled, the detector's upper PIR sensor receives an additional narrow viewing sector directed at the angle of 40 degrees down against the main sector. The feature allows both sensors to detect movement when a human crosses the protected perimeter closely to the detector's body, addressing the problem of the blind spot, which is a typical problem of such detectors.

Near Area Detection is designed to protect windows and other passages that animals have no access to. The proximity of the detection zones' vectors significantly reduces the efficiency of pet immunity.

One enclosure. Two independent detectors.
The detection range of the two optical systems is adjusted independently. It allows you to precisely set the perimeter guarded by DualCurtain Outdoor and avoid false alarms caused by a bush swaying in the wind or people passing on a public sidewalk. So that the detector's field of view is not blocked by a column or downpipe on a facade, the optical systems can be shifted horizontally. In the app, you can adjust the sensitivity or deactivate one of the optical systems.

Resistant to attacks
DualCurtain Outdoor can not be unnoticeably blinded or disabled even if Ajax is disarmed. Detector's optical systems are reinforced with advanced masking sensors that respond to obstacles, covering and painting the lenses. The tamper will not allow to unnoticeably remove the device from the mount. And even if the detector is instantly destroyed, it will take the hub less than a minute to detect the loss of communication and inform a central monitoring station and users about the problem.

Outstanding autonomy
Due to its low energy consumption, DualCurtain Outdoor operates for years from pre-installed batteries. A monitoring station and users will be warned in advance about the need for the device maintenance.

Installation without brain teasers

The process of connecting and configuring DualCurtain Outdoor saves the installation engineer's time in the best possible way. To add a detector to the system, all you have to do is scan the QR code with the Ajax app, assign a name and a room to it. Configure the device in the app in real time while testing detection zones and communication. If necessary, the detector can be disabled or its system parameters can be reconfigured remotely, without site visits.


Apsauga nuo klastojimo Taip
Aptikimo atstumas 13 m
Aukštis 174 mm
Baterijos tipas CR123A
Bruto svoris 0.941 kg
Darbo santykinės drėgmės diapazonas 0 - 95 %
Darbo temperatūros diapazonas (TT) -25 - 60 °C
Ilgis 88 mm
Jutiklio tipas Inraraudonųjų spindulių jutiklis
Maitinimo šaltinio tipas Baterija
Model name DualCurtain Outdoor
Montavimo tipas Siena
Neto svoris 0.651 kg
Palaikomų baterijų skaičius 2
Persiuntimo atstumas 1700 m
Plotis 123 mm
Pridėtas montavimo kronšteinas Taip
Pridėtos baterijos Taip
Produkto spalva Balta
Ryšio technologija Bevielis
Shipping Box Depth 23 cm
Shipping Box Height 10 cm
Shipping Box Weight 0.941 kg
Shipping Box Width 20 cm
Signalo funkcija Taip
Suderinamumas Hub Plus
Hub 2 (2G)
Hub 2 (4G)
Hub 2 Plus
Hub Hybrid (2G)
Hub Hybrid (4G)
ReX
ReX 2
Summary Ajax DualCurtain Outdoor. Mounting bracket(s) included
Svoris 615 g
Talpinimo Lauke
Tarptautinės apsaugos (IP) kodas IP54
Unit Box Height 0.1
Unit Box Length 0.23
Unit Box Width 0.2
Unit Brutto Volume 0.0046 cubm
Veikimo dažnis 866 - 922 MHz
Vendor Homepage https://ajax.systems/products/dualcurtain-outdoor/
Vieneto aukštis 10 cm
Vieneto gylis 23 cm
Vieneto plotis 20 cm
Vienetų skaičius vienoje siuntimo dėžėje 1
