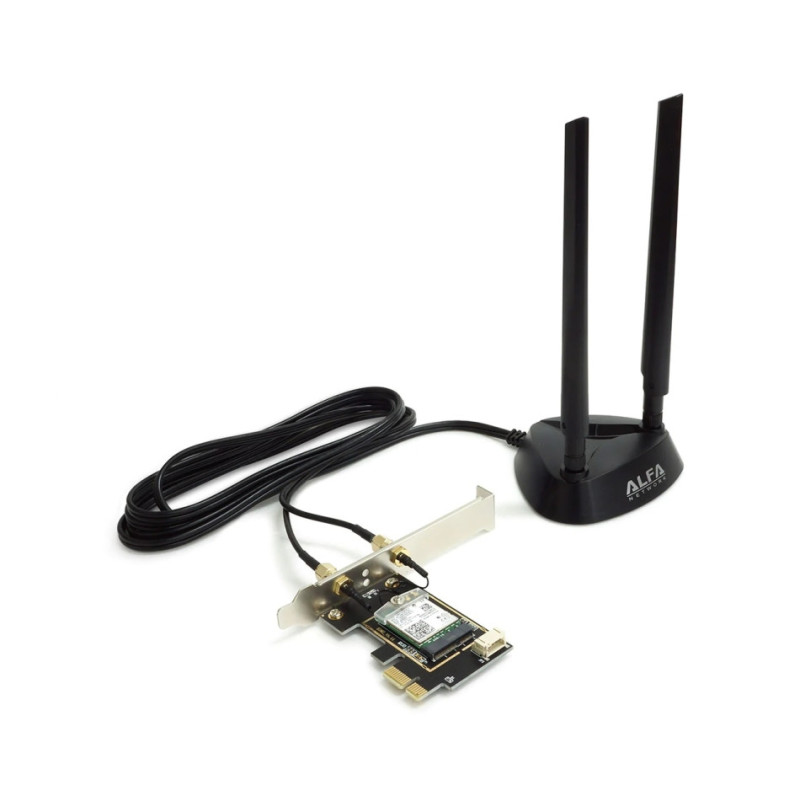

ALFA NETWORK Wi-Fi 6E PCIe Card with Magnetic Antenna
Prekės kodas:
18-AIT-AX210-EX
ALFA NETWORK Wi-Fi 6E PCIe Card with Magnetic Antenna
ALFA NETWORK Wi-Fi 6E PCIe Card with Magnetic Antenna
Prekės kodas:
18-AIT-AX210-EX
ALFA NETWORK Wi-Fi 6E PCIe Card with Magnetic Antenna
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
12 mėn.
Pristatymas iš Lietuvos
per 2 - 3*
d. d.
AIT-AX210-EX is a WiFi 6E PCIe card, based on the Intel AX210 module
AIT-AX210-EX supports the latest WiFi 6E (IEEE 802.11ax) with special features like OFDMA, 1024QAM and MU-MIMO. Module includes also Bluetooth 5.2, is backward compatible and operates in 2.4, 5 and 6 GHz bands.
The PCI Express ×1 interface allows using this set in any desktop PC equipped with PCIe ×1, ×4, ×8 or ×16 slot.
| Parameter | Value |
|---|---|
| Intel product code | AX210NGW Intel WiFi 6E (Gig+)/Typhoon Peak series |
| IEEE 802.11 standards | a/b/g/n/ac/ax |
| Special features | OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT |
| Frequency | 2.4 GHz 5 GHz 6 GHz |
| Data rate | Up to 2.4 Gbps |
| Bluetooth | 5.2 (USB 2.0 cable included) |
| Antenna type | 2× tri-band dipole (5 dBi gain) (ARS-AS02T dual magnetic antenna stand with 2-meter RG-174 RF cable included) |
| Antenna connectors (adapter) | 2× RP-SMA (pigtail RF cables included) |
| Antenna connectors (module) | 2× IPEX4 (MHF4) |
| Interface | PCIe x1 (WiFi) USB 2.0 (Bluetooth) |
| Operating systems | Microsoft Windows 10 and 11 Linux (kernel 5.10 and above) |
| Form factor (adapter) | PCI Express ×1 (compatible with ×4, ×8 and ×16 slot type) |
| Form factor (module) | M.2/NGFF A+E-key 2230 |
| Bundle contents | - 1× Intel AX210NGW module - 1× PCIe ×1 to M.2/NGFF A+E-key 2230 adapter board - 1× ARS-AS02T magnetic antenna stand - 2× dipole antenna with IPEX4 (MHF4) to RP-SMA female pigtail - 1× plastic IPEX4 (MHF4) connectors cover - 1× USB 2.0 cable for Bluetooth - Assembly accessories (screws, etc.) |
