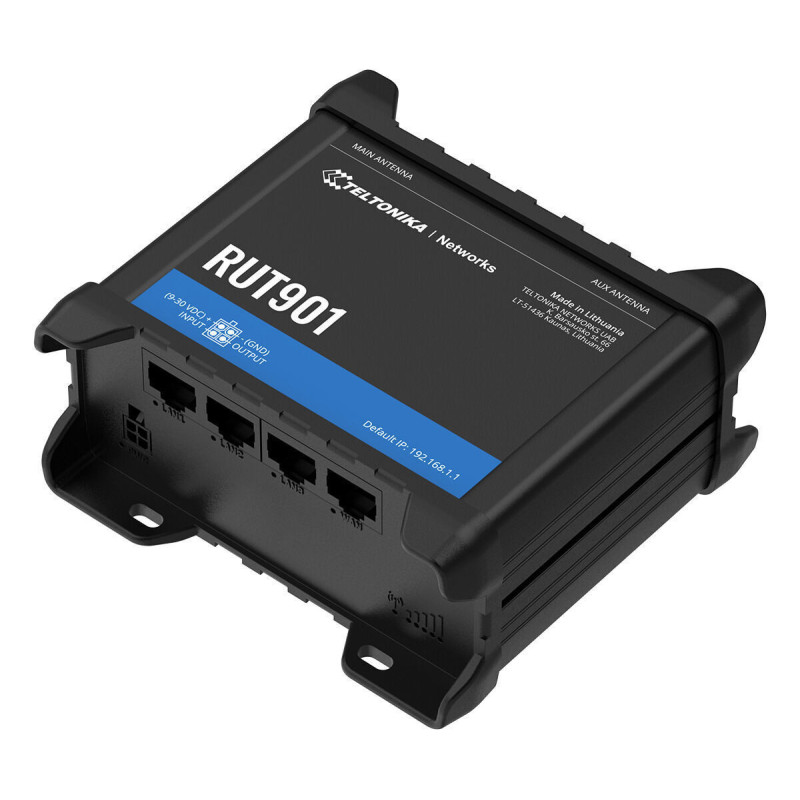

Maršrutizatorius Teltonika RUT901 LTE(4G)
Prekės kodas:
26-4779051840823
- 1 WAN, 3 LAN
- LTE(4G) - 150 Mbps, 3G - 42Mbps, 2G - 236,8 Kbps
- Belaidis prieigos taškas su Hotspot funkcija
- Su automatiniu perjungimu, atsargine WAN kopija ir kitais perjungimo scenarijais
- Palaikomi keli protokolai, įskaitant MQTT, Modbus TCP, DNP3
Maršrutizatorius Teltonika RUT901 LTE(4G)
Prekės kodas:
26-4779051840823
- 1 WAN, 3 LAN
- LTE(4G) - 150 Mbps, 3G - 42Mbps, 2G - 236,8 Kbps
- Belaidis prieigos taškas su Hotspot funkcija
- Su automatiniu perjungimu, atsargine WAN kopija ir kitais perjungimo scenarijais
- Palaikomi keli protokolai, įskaitant MQTT, Modbus TCP, DNP3
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
24 mėn.
Pristatymas iš Lietuvos
per 2 - 4*
d. d.
- Pagrindinis
- SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
- Statusas Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
- SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD Supports sending and reading Unstructured Supplementary Service Data messages
- Juodasis/baltasis sąrašas Operator black/white list
- Multiple PDN Possibility to use different PDNs for multiple network access and services
- Grupės valdymas Band lock, Used band status display
- APN Auto APN
- Tiltas Direct connection (bridge) between mobile ISP and device on LAN
- Perleidimas Router assigns its mobile WAN IP address to another device on LAN
- Belaidžio ryšio režimas IEEE 802.11b/g/n, Access Point (AP), Station (STA)
- Wifi apsauga WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP, WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE; AES-CCMP, TKIP, Auto Cipher modes, client separation
- SSID/ESSID SSID stealth mode and access control based on MAC address
- WiFi naudojotai Up to 100 simultaneous connections
- Belaidžio ryšio prieeiga Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
- WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
- LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
- Maršrutas Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
- Interneto protokolai TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
- VoIP praėjimo parama H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Ryšio stebėjimas Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Ugniasienė Port forward, traffic rules, custom rules
- DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
- QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS Supported > 25 service providers, others can be configured manually
- Tinklo atsarginės kopijos WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
- Apkrovos balansavimas Balance Internet traffic over multiple WAN connections
- Hotspot Internal/external Radius server, captive portal, built in customizable landing page
- SSHFS Possibility to mount remote file system via SSH protocol (not available in standard FW)
- Autentifikavimas Pre-shared key, digital certificates, X.509 certificates
- Ugniasienė Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Įsilaužimo prevencija DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN Port and tag based VLAN separation
- Mobiliųjų kvotų kontrolė Custom data limits for both SIM cards
- WEB filtras Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Prieigos kontrolė Flexible access control of TCP, UDP, ICMP packets, MAC address filter
- OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
- OpenVPN šifravimas DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
- IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
- GRE GRE tunnel
- PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support
- Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs code
- DMVPN Method of building scalable IPsec VPNs
- SSTP SSTP client instance support
- ZeroTier ZeroTier VPN client support
- WireGuard WireGuard VPN client and server support
- ID range Respond to one ID in range [1;255] or any
- Nuotolinės prieigos leidimas Allow access through WAN
- Pasirinktiniai registrai MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
- Palaikomos funcijos 01, 02, 03, 04, 05, 06, 15, 16
- Palaikomi duomenų formatai 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
- Protokolai HTTP(S), MQTT, Azure MQTT
- MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker
- Palaikomi režimai TCP Master, DNP3 Outstation
- WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
- FOTA Firmware update from server, automatic notification
- SSH SSH (v1, v2)
- SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
- Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off
- TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT MQTT Broker, MQTT publisher
- SNMP SNMP (v1, v2, v3), SNMP Trap
- JSON-RPC Management API over HTTP/HTTPS
- MODBUS MODBUS TCP status/control
- RMS Teltonika Remote Management System (RMS)
- Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
- ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
- Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server
- CPU Mediatek MIPS 24Kc 580 MHz
- RAM 128 MB, DDR2
- FLASH saugykla 16 MB, SPI Flash
- WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
- FOTA Update FW
- RMS Update FW/configuration for multiple devices at once
- Nustatymų įsiminimas Update FW without losing current configuration
- Operacinė sistema RutOS (OpenWrt based Linux OS)
- Kalbos Busybox shell, Lua, C, C++
- Kūrėjo įrankiai SDK package with build environment provided
- Įvestis 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
- Išvestis 1 x Digital Output, Open collector output, max output 30 V, 300 mA
- Įvykiai Email, RMS, SMS
- I/O juggler Allows to set certain I/O conditions to initiate event
- Jungtys 4-pin industrial DC power socket
- Įeinančios įtampos diapazonas 9 30 VDC, reverse polarity protection; surge protection > 31 VDC 10us max
- PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC
- Energijos sunaudojimas < 2 W idle, < 7 W Max
- Tinklas 4 x RJ45 ports, 10/100 Mbps
- I/O's 1 x Digital Input, 1 x Digital Output on 4-pin power connector
- LED indikatoriai 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
- SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
- Sistemos parametrai 1 x 4-pin power connector
- Antenos 2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors
- Perkrovimas Reboot/User default reset/Factory reset button
- Korpusas Aluminium housing, plastic panels
- Dimensions (W x H x D) 110 x 50 x 100 mm
- Svoris 297 g
- Montavimas DIN rail (can be mounted on two sides), flat surface placement
- Darbinė temperatūra -40 C to 75 C
- Drėgmė 10% to 90% non-condensing
- IP reitingas IP30
- Reguliavimas CE/RED, UKCA, EAC, UCRF
- Standartai EN 301 489-1 V2.2.3, Draft EN 301 489-17 V3.2.5, EN 301 489-52 V1.2.1, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020
- ESD EN 61000-4-2:2009
- RS EN 61000-4-2:2009
- EFT EN 61000-4-4:2012
- Surge protection EN 61000-4-5:2014+A1:2017
- CS EN 61000-4-6:2014
- DIP EN IEC 61000-4-11:2020
- Standartai EN 300 328 V2.2.2, EN 301 893 V2.1.1, EN 301 908-1 V15.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1
| Gamintojas | Teltonika Networks |
| Gamintojo kodas | LTRUT901 |
| Svoris | 0 kg |
