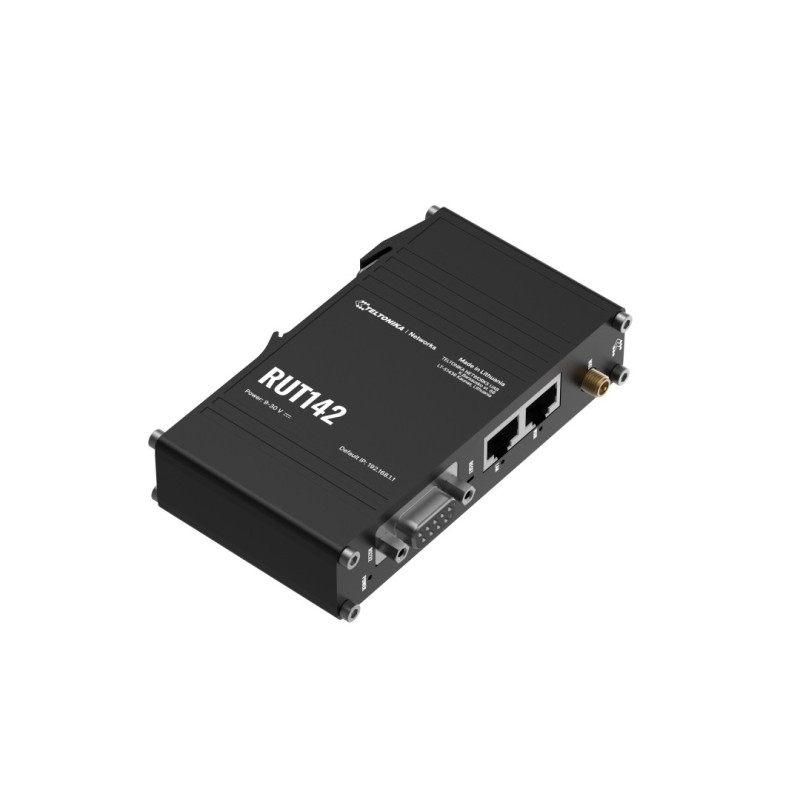

Maršrutizatorius Teltonika RUT142 su RS232
Prekės kodas:
26-TELTRUT142RS232
- Tipas: Maršrutizatorius
- Modelis: RUT142
- Prekės ženklas: Teltonika
- Jungtys: 2x RJ45 10/100Mbps (1x LAN, 1x WAN), 1x DB9 RS232
- Antena: 1x RP-SMA
- Maitinimas: 9-30V DC, passive PoE
- Atmintis: 128MB DDR2
- Vidinė atmintis: 16MB NOR Flash
- Funkcijos: SSH, SNMP, MQTT, VPN
- Apsaugos klasė: IP30
- Darbinė temperatūra: -40...75°C
Maršrutizatorius Teltonika RUT142 su RS232
Prekės kodas:
26-TELTRUT142RS232
- Tipas: Maršrutizatorius
- Modelis: RUT142
- Prekės ženklas: Teltonika
- Jungtys: 2x RJ45 10/100Mbps (1x LAN, 1x WAN), 1x DB9 RS232
- Antena: 1x RP-SMA
- Maitinimas: 9-30V DC, passive PoE
- Atmintis: 128MB DDR2
- Vidinė atmintis: 16MB NOR Flash
- Funkcijos: SSH, SNMP, MQTT, VPN
- Apsaugos klasė: IP30
- Darbinė temperatūra: -40...75°C
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
24 mėn.
Pristatymas iš Lietuvos
per 2 - 4*
d. d.
- Pagrindinis
- Belaidžio ryšio režimas 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
- Wi-Fi security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
- SSID/ESSID ESSID stealth mode
- Wi-Fi users Up to 50 simultaneous connections
- Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
- Wireless MAC filter Allowlist, blocklist
- Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information
- TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device
- WAN 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- Maršrutas Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Interneto protokolai TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
- VoIP praėjimo parama H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Ryšio stebėjimas Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Ugniasienė Port forward, traffic rules, custom rules, TTL target customization
- Ugniasienės būsenos puslapis View all your Firewall statistics, rules, and rule counters
- Prievadų valdymas View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Tinklo topologija Visual representation of your network, showing which devices are connected to which other devices
- DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
- QoS / išmanusis eilių valdymas (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS Supported > 25 service providers, others can be configured manually
- DNS per HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
- Tinklo atsarginės kopijos Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover
- Apkrovos balansavimas Balance Internet traffic over multiple WAN connections
- Viešosios interneto prieigos taškas Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and optionality to upload and download customized hotspot themes
- SSHFS Possibility to mount remote file system via SSH protocol
- Eismo valdymas Real-time monitoring, wireless signal charts, traffic usage history
- Autentifikavimas Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
- Ugniasienė Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
- Įsilaužimo prevencija DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN Port and tag-based VLAN separation
- WEB filtras Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Prieigos kontrolė Flexible access control of SSH, Web interface, CLI and Telnet
- SSL certificate generation Let's Encrypt and SCEP certificate generation methods
- OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN šifravimas 27 encryption methods including DES-CBC 64, RC2-CBC 128, AES-128-GCM 128, AES-256-CBC 256, etc.
- IPsec XFRM, IKEv1, IKEv2, 14 encryption methods for IPsec (3DES, AES128, AES256, AES256GCM16, etc.)
- GRE GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code
- DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
- SSTP SSTP client instance support
- ZeroTier ZeroTier VPN client support
- WireGuard WireGuard VPN client and server support
- Tinc Tinc offers encryption, authentication and compression in its tunnels. Client and server support.
- OPC UA Supported modes: Client, Server
- MODBUS Supported modes: Server, Client; Supported connection types: TCP, RTU (RS232)
- Pasirinktiniai registrai MODBUS TCP custom register block requests, which read/write to a file inside the router
- Palaikomi duomenų formatai 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
- Protokolai HTTP(S), MQTT, Azure MQTT
- Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting
- MQTT Gateway Modbus MQTT Gateway allows sending commands and receiving data from MODBUS Server through MQTT broker
- DNP3 Supported modes: Station, Outstation; Supported connection types: TCP, RTU (RS232)
- DLMS DLMS standard protocol for utility meter data exchange; Supported modes: Client; Supported connection types: TCP, RTU (RS232)
- COSEM Allows scanning meter COSEM objects for automatic detection and configuration
- Teltonika Networks Web API Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data
- Monitoring & Management WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, firmware update notifications
- FOTA Firmware update from server, automatic notification
- SSH SSH (v1, v2)
- El. paštas Receive email message status alerts of various services
- TR-069 Supported TR-069 clients such as OpenACS, EasyCwmp, ACSLite, GenieACS, FreeACS, LibCWMP, and others
- MQTT MQTT Broker, MQTT publisher
- SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
- JSON-RPC Management API over HTTP/HTTPS
- RMS Teltonika Remote Management System (RMS)
- Procesorius Mediatek, 580 MHz, MIPS 24KEc
- RAM 128 MB, DDR2
- FLASH saugykla 16 MB serial NOR flash
- Operacinė sistema RutOS (OpenWrt based Linux OS)
- Kalbos Busybox shell, Lua, C, C++
- Maitinimo jungtis 3-pos pluggable terminal block
- Įeinančios įtampos diapazonas 9-30 VDC, reverse polarity protection, surge protection > 31 VDC 10us max
- PoE (pasyvus) Passive PoE over spare pairs, 9 - 30 VDC
- Energijos sunaudojimas Idle: < 1 W / Max: < 2 W
- Tinklas 2 x RJ45 ports, 10/100 Mbps
- LED indikatoriai 1 x WAN type LED, 1 x LAN type LED, 1 x Power LED
- Sistemos parametrai 1 x 3-pin power connector
- Antenos 1 x RP-SMA for Wi-Fi
- RS232 1 x DB9 socket
- Perkrovimas Reboot/User default reset/Factory reset button
- Korpusas Aluminium housing
- Dydis 113.10 x 25 x 68.6 mm
- Svoris 149.2 g
- Montavimas Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
- Darbinė temperatūra -40 °C to 75 °C
- Drėgmė 10% to 90% non-condensing
- IP reitingas IP30
- Reguliavimo patvirtinimai CE, UKCA, RCM, FCC, IC, CB, WEEE, RoHS, REACH
| Gamintojas | Teltonika Networks |
| Gamintojo kodas | TELTRUT142RS232 |
| Svoris | 0.149 kg |
