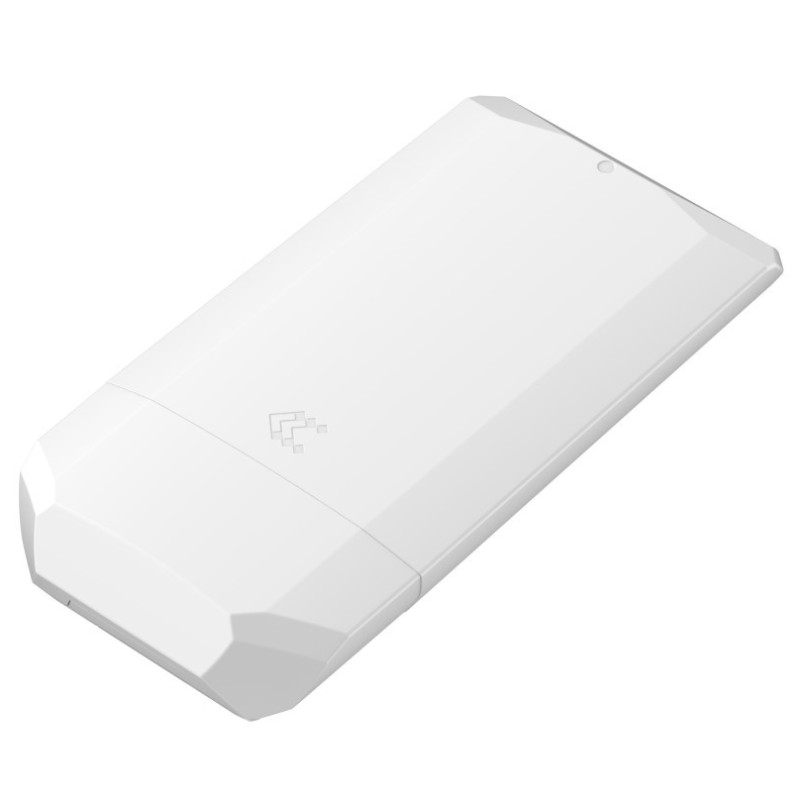

Maršrutizatorius Teltonika OTD500 (5G)
Prekės kodas: 26-4779051842933
  • Tipas: Maršrutizatorius
  • Modelis: OTD500
  • Prekės ženklas: Teltonika
  • Ryšys: 5G
  • Jungtys: 2x RJ45, 1x PoE-in, 1x PoE-out
  • PoE standartas: 802.3af
  • Maksimali galia: 15W
  • Operatyvioji atmintis (RAM): 256 MB DDR3
  • SIM kortelės: 2x SIM
  • Atsparumo klasė: IP55
  • Darbinė temperatūra: -40...+55°C
Maršrutizatorius Teltonika OTD500 (5G)

Maršrutizatorius Teltonika OTD500 (5G)

Prekės kodas: 26-4779051842933
  • Tipas: Maršrutizatorius
  • Modelis: OTD500
  • Prekės ženklas: Teltonika
  • Ryšys: 5G
  • Jungtys: 2x RJ45, 1x PoE-in, 1x PoE-out
  • PoE standartas: 802.3af
  • Maksimali galia: 15W
  • Operatyvioji atmintis (RAM): 256 MB DDR3
  • SIM kortelės: 2x SIM
  • Atsparumo klasė: IP55
  • Darbinė temperatūra: -40...+55°C
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
452,87 €
Prekė sandelyje

Garantija
24 mėn.

Pristatymas iš Lietuvos
per 2 - 4*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*
  • Pagrindinis
  • Mobilus modulis 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE - LTE Cat 19 1.6Gbps DL/200Mbps UL; 3G up to 42 Mbps DL/5.76Mbps UL
  • 3GPP išleidimas Release 16
  • eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
  • SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
  • Statusas IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
  • SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
  • USSD Supports sending and reading Unstructured Supplementary Service Data messages
  • Juodasis/baltasis sąrašas Operator black/white list (by country or separate operators)
  • Grupės valdymas Band lock, Used band status display
  • SIM neaktyvumo apsaugos paslauga Inactive SIM remains idle until switched to, preventing unintended data usage
  • SIM PIN kodo valdymas Set, change, or disable SIM card PIN
  • APN Auto APN
  • Tiltas Direct connection (bridge) between mobile ISP and device on LAN
  • Perleidimas Router assigns its mobile WAN IP address to another device on LAN
  • Framed routing Support for an IP network behind 5G UE
  • ETHERNET 2 x ETH ports (can be configured as WAN), 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az, supports auto MDI/MDIX crossover
  • PoE IN 1 x PoE In, 802.3af/at standard
  • PoE OUT 1 x PoE Out, 802.3af Alternative B, Max power 15W (power supply dependent)
  • Maršrutas Static and Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
  • Interneto protokolai TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
  • VoIP passthrough H.323 and SIP-alg protocol NAT helpers for proper routing of VoIP packets
  • Ryšio stebėjimas Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • Ugniasienė Port forwarding, traffic rules, custom rules, TTL target customization
  • Firewall status View firewall statistics, rules, and rule counters
  • Prievadų valdymas Enable/disable device ports, auto-configure, change transmission speed
  • Tinklo topologija Visual representation of connected devices
  • DHCP Static and dynamic IP allocation, DHCP relay, server configuration, static leases
  • QoS / Smart Queue Management Traffic priority queuing by source/destination, service, protocol, or port, WMM, 802.11e
  • DDNS Supports > 25 service providers, manual configuration possible
  • DNS per HTTPS Secure DNS resolution via DNS over HTTPS proxy
  • Tinklo atsarginės kopijos VRRP, wired options, automatic failover
  • Apkrovos balansavimas Balance Internet traffic across multiple WAN connections
  • Viešosios interneto prieigos taškas Captive portal, Radius server, MAC authentication, SMS authorization, SSO authentication, custom themes
  • SSHFS Mount remote file system via SSH protocol
  • VRF support Initial virtual routing and forwarding (VRF) support
  • Eismo valdymas Real-time monitoring, wireless signal charts, traffic usage history
  • Autentifikavimas Pre-shared key, digital certificates, X.509 certificates, TACACS+, RADIUS authentication, IP & login attempts block, time-based login blocking, built-in random password generator
  • Ugniasienė Configurable via WebUI, CLI, DMZ, NAT, NAT-T, NAT64
  • Įsilaužimo prevencija DDOS, SSH attack, HTTP/HTTPS attack prevention, port scan protection
  • VLAN Port and tag-based VLAN separation
  • Mobiliųjų kvotų kontrolė Mobile data limit, customizable period, start time, warning limit, phone number
  • WEB filtras Blacklist/whitelist for web content access
  • Prieigos kontrolė Flexible SSH, Web interface, CLI, and Telnet access control
  • TPM TPM 2.0 standard authentication module
  • SSL certificate generation Let's Encrypt and SCEP certificate methods
  • 802.1x Port-based network access control server
  • VPN OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale support
  • OpenVPN encryption 27 encryption methods including AES-256-GCM, AES-128-CBC, and more
  • IPsec Supports XFRM, IKEv1, IKEv2, with 14 encryption methods
  • MODBUS Supports Client/Server modes, TCP connection, custom register block requests
  • DATA TO SERVER HTTP(S), MQTT, Azure MQTT, extract parameters from multiple sources to a single server
  • MQTT Gateway Modbus MQTT Gateway for sending commands and receiving data from MODBUS Server
  • DNP3 Supports Station, Outstation modes over TCP
  • DLMS Client mode, COSEM object scanning, TCP connection
  • API Teltonika Networks Web API (beta) support for device management and monitoring
  • WEB UI HTTP/HTTPS access, configuration, FW update, CLI, troubleshooting, logs
  • FOTA Firmware update via server, automatic notifications
  • SSH SSH v1/v2 support
  • Email Receive status alerts via email
  • SMS Send/read SMS via HTTP POST/GET
  • Call Reboot, status check, mobile data on/off, output on/off, call control
  • TR-069 Supports OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • Monitoring & Management MQTT, SNMP (v1, v2, v3), SNMP Trap, JSON-RPC, RMS support
  • IoT Platforms ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core
  • Sistemos Characteristikos MediaTek Dual-core 880 MHz CPU, 256 MB DDR3 RAM, 16 MB NOR + 256 MB NAND flash
  • Firmware Supports RutOS (OpenWrt-based), customization, SDK, package manager
  • Sistemos parametrai RJ45 socket, input voltage range 42.5-57.0 VDC, PoE input 42.5-57.0 VDC, power consumption <9W (max)
  • Physical Interfaces 2 x RJ45 ports, status LEDs, 2 x SIM slots, 4 x internal antennas
  • Antenna specifications 617 - 960 / 1695 - 2690 / 3300 - 4200 / 4200 - 5000MHz, 50 Ω, VSWR <3.5, gain <4.9 dBi, omnidirectional
  • Atstatymo mygtukas Reboot/User default reset/Factory reset
  • Korpusas Plastic (PC+ASA)
  • Dydis 110 x 49.30 x 235 mm
  • Svoris 385 g
  • Montavimas Bracket for vertical flat surface or pole mounting
  • Darbinė temperatūra -40 °C to 55 °C
  • Drėgmė 10% to 90% non-condensing
  • Ingress Protection IP55
  • Regulatory Approvals CE, UKCA, RCM, CB, EAC, UCRF, WEEE
  • EMC Compliance EN 55032, EN 55035, EN 61000 series
  • Safety Standards CE (EN IEC 62368-1), RCM (AS/NZS 62368.1), CB (IEC 62368-1)

Gamintojas Teltonika Networks
Gamintojo kodas MOTD500
Svoris 0.000000 kg
