Maršrutizatorius 5 prievadų Teltonika RUTM52 DUAL 5G
Prekės kodas:
26-RUTM52
- Tipas: Maršrutizatorius
- Modelis: Teltonika RUTM52 DUAL 5G
- Mobiliojo ryšio tipas: 2x 5G Sub-6GHz
- MIMO: 4x4 MIMO
- Naudotojų skaičius: iki 150
- WAN jungtis: 1x RJ45 1000Mbps
- LAN jungtys: 4x RJ45 1000Mbps
- Ethernet jungtys iš viso: 5x RJ45
- Palaikomi tiekėjai: daugiau nei 25
- Protokolai: DLMS, NMEA 0183
- Atmintis: 256MB DDR3
- Flash atmintis: 16MB NOR, 256MB NAND

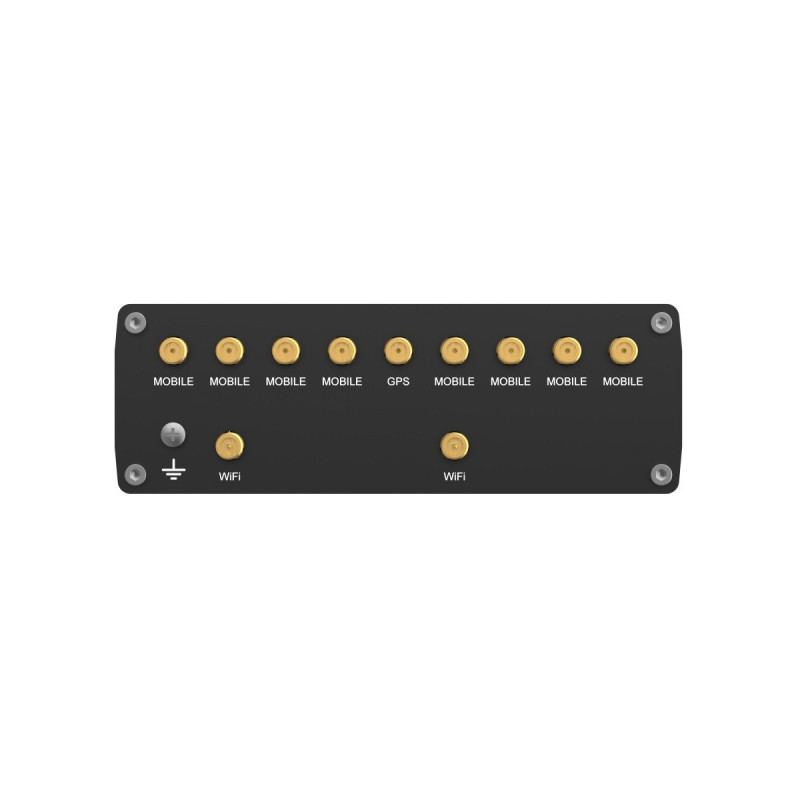

- Antenų jungtys: 8x SMA, 2x RP-SMA
- Maitinimas: 9-50 VDC, 4-pin jungtis
- Darbinė temperatūra: -40...60°C
Maršrutizatorius 5 prievadų Teltonika RUTM52 DUAL 5G
Prekės kodas:
26-RUTM52
- Tipas: Maršrutizatorius
- Modelis: Teltonika RUTM52 DUAL 5G
- Mobiliojo ryšio tipas: 2x 5G Sub-6GHz
- MIMO: 4x4 MIMO
- Naudotojų skaičius: iki 150
- WAN jungtis: 1x RJ45 1000Mbps
- LAN jungtys: 4x RJ45 1000Mbps
- Ethernet jungtys iš viso: 5x RJ45
- Palaikomi tiekėjai: daugiau nei 25
- Protokolai: DLMS, NMEA 0183
- Atmintis: 256MB DDR3
- Flash atmintis: 16MB NOR, 256MB NAND
- Antenų jungtys: 8x SMA, 2x RP-SMA
- Maitinimas: 9-50 VDC, 4-pin jungtis
- Darbinė temperatūra: -40...60°C
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
24 mėn.
Pristatymas iš Lietuvos
per 2 - 4*
d. d.
- Mobilus ryšys
- Mobilus modulis 2 x 5G Sub-6 GHz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO) 900/600Mbps UL (2x2 MIMO); 4G (LTE): DL Cat 20 2.0Gbps (4x4 MIMO)/UL Cat 20 200Mbps; 3G: 42 Mbps DL, 5.76Mbps UL
- 3GPP išleidimas Release 16
- eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
- SIM switch Allows dual-modem functionality with independent SIM switching for each modem. The SIM switch automatically transitions between the physical SIM and eSIM based on conditions such as weak signal, data limits, roaming, and network issues. Both physical SIMs can operate simultaneously, with switching restricted to each modem's SIM and eSIM
- Statusas IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
- SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD Supports sending and reading Unstructured Supplementary Service Data messages
- Block/Allow list Operator block/allow list (by country or separate operators)
- Multiple PDN Possibility to use different PDNs for multiple network access and services
- Grupės valdymas Band lock, Used band status display
- SIM PIN kodo valdymas SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
- APN Auto APN
- Tiltas Direct connection (bridge) between mobile ISP and device on LAN
- Perleidimas Router assigns its mobile WAN IP address to another device on LAN
- Framed routing Framed routing: support an IP network behind 5G UE
- Bevielis ryšys
- Belaidžio ryšio režimas 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
- Wifi apsauga WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
- SSID/ESSID ESSID stealth mode
- Wi-Fi naudotojai Up to 150 simultaneous connections
- Belaidžio ryšio funkcijos Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
- Belaidžio ryšio MAC filtras Allowlist, blocklist
- Belaidžio ryšio QR kodų generatorius Once scanned, a user will automatically enter your network without needing to input login information
- TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device
- Ethernet
- WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- Tinklas
- Maršrutas Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Protokolai TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
- VoIP praėjimo parama H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Ryšio stebėjimas Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Ugniasienė Port forward, traffic rules, custom rules, TTL target customisation
- Ugniasienės būsenos puslapis View all your Firewall statistics, rules, and rule counters
- Prievadų valdymas View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Tinklo topologija Visual representation of your network, showing which devices are connected to which other devices
- Viešosios interneto prieigos taškas Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
- DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
- QoS / išmanusis eilių valdymas (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS Supported > 25 service providers, others can be configured manually
- DNS per HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
- Tinklo atsarginės kopijos Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
- Apkrovos balansavimas Balance Internet traffic over multiple WAN connections
- SSHFS Possibility to mount remote file system via SSH protocol
- VRF support Initial virtual routing and forwarding (VRF) support
- Eismo valdymas Real-time monitoring, wireless signal charts, traffic usage history
- Saugumas
- 802.1x Port-based network access control client
- Autentifikavimas Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
- Ugniasienė Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
- Įsilaužimo prevencija DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN Port and tag-based VLAN separation
- Mobiliųjų kvotų kontrolė Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filtras Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Prieigos kontrolė Flexible access control of SSH, Web interface, CLI and Telnet
- TPM Identification and authentication module, TPM 2.0 standard
- SSL sertifikatų generavimas Let's Encrypt and SCEP certificate generation methods
- VPN
- OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN šifravimas DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
- IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code
- DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
- SSTP SSTP client instance support
- ZeroTier ZeroTier VPN client support
- WireGuard WireGuard VPN client and server support
- Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
- Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
- OPC UA
- Palaikomi režimai Client, Server
- Supported connection types TCP
- MODBUS
- Palaikomi režimai Server, Client
- Supported connection types TCP
- Pasirinktiniai registrai MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
- Palaikomi duomenų formatai 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
- DATA TO SERVER
- Protokolas HTTP(S), MQTT, Azure MQTT
- Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
- MQTT Gateway
- Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
- DNP3
- Palaikomi režimai DNP3 Station, DNP3 Outstation
- Supported connection TCP
- DLMS
- DLMS Support DLMS - standard protocol for utility meter data exchange
- Palaikomi režimai Client
- Supported connection types TCP
- COSEM Allows to scan meter COSEM objects for automatic detection and configuration
- API
- Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
- Monitoring & Management
- WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
- FOTA Firmware update from server, automatic notification
- SSH SSH (v1, v2)
- SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
- Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
- El. paštas Receive email message status alerts of various services
- TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT MQTT Broker, MQTT publisher
- SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
- JSON-RPC Management API over HTTP/HTTPS
- RMS Teltonika Remote Management System (RMS)
- IoT platformos
- ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
- Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
- AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality
- Sistemos Characteristikos
- Procesorius MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
- RAM 256 MB, DDR3
- FLASH saugykla 16 MB serial NOR flash, 256 MB serial NAND flash
- Nustatymai
- WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA Update FW
- RMS Update FW/configuration for multiple devices at once
- Nustatymų įsiminimas Update FW without losing current configuration
- Gamykloje nustatytų parametrų atstatymas A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
- FIRMWARE CUSTOMISATION
- Operacinė sistema RutOS (OpenWrt based Linux OS)
- Kalbos Busybox shell, Lua, C, C++
- Kūrėjo įrankiai SDK package with build environment provided
| Gamintojas | Teltonika Networks |
| Gamintojo kodas | RUTM52 |
| Svoris | 0.000000 kg |
