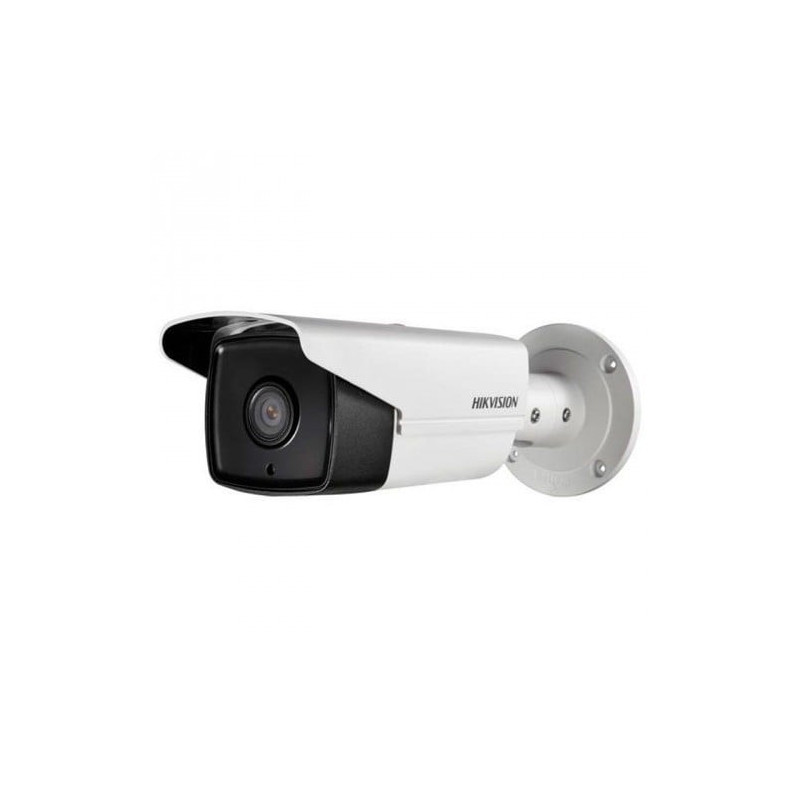

Hikvision bullet DS-2CD2T83G2-4I F2.8 (white, 8 MP, 80 IR, AcuSense)
Product reference:
26-6941264098546
- MP (MegaPixel): 8 MP
- Lens: 2.8 mm, horizontal FOV: 107°
- Technology: AcuSense
- Built-in microphone: No
- Night illumination: 80 m. IR
- microSD slot: Yes, 256GB
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1280ZJ-S
- Outdoor/Indoor: Outdoor
Hikvision bullet DS-2CD2T83G2-4I F2.8 (white, 8 MP, 80 IR, AcuSense)
Product reference:
26-6941264098546
- MP (MegaPixel): 8 MP
- Lens: 2.8 mm, horizontal FOV: 107°
- Technology: AcuSense
- Built-in microphone: No
- Night illumination: 80 m. IR
- microSD slot: Yes, 256GB
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1280ZJ-S
- Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Camera
- Sensor 1/2.8" Progressive Scan CMOS
- Min. lighting Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter speed 1/3 s to 1/100,000 s
- Slow shutter Yes
- P/N P/N
- Wide dynamic range 120 dB
- Day Night IR cut filter
- Angle selection Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Max resolution 3840 × 2160
- Lentils
- Lens type Fixed focal lens, 2.8, 4, and 6 mm optional
- Focal Length FOV
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°
- Lens installation M12
- Iris type Fixed
- Aperture F1.6
- DOROUS
- DOROUS
2.8mm: D: 88m, O: 35m, R: 17m, I: 9m
4mm: D: 108m, O: 43m, R: 22m, I: 11m
6mm: D: 177 m, O: 70 m, R: 35 m, I: 18 m
- Lighting
- Auxiliary light type AND
- Smart auxiliary light Yes
- IR wavelength 850 nm
- IR distance
-2I: up to 60 m
-4I: up to 80 m
- Auxiliary light range
-2I: up to 60 m
-4I: up to 80 m
- Video recording
- Max resolution
3840 × 2160
- Main stream
50Hz: 20fps (3840×2160)
25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
60Hz: 20fps (3840×2160)
30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
- Auxiliary flow
50Hz: 25fps (640×480, 640×360)
60Hz: 30fps (640×480, 640×360)
- Tertiary flow
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
- Image compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video bit rate 32 Kbps to 16 Mbps
- H.264 type Baseline Profile/Main Profile/High Profile
- H.265 type Main Profile
- H.264+ Main stream supports
- H.265+ Main stream supports
- Bit rate control CBR/VBR
- SVC H.264 and H.265 encoding
- ROI 1 fixed region for main stream and sub-stream
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
- Live video viewing Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
- User/broadcaster Up to 32 users. 3 user levels: administrator, operator and user
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Clint iVMS-4200, Hik-Connect, Hik-Central
- Internet browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Photos
- Changing photo settings Yes
- Photo settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/night change Day, Night, Auto, Schedule
- Photo enhancement BLC, HLC, 3D DNA
- SNR ≥ 52 dB
- WDR 120 dB
- Interfaces
- Ethernet interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Internal storage Built-in memory card slot, support micro SD card, up to 256 GB
- Playback button Yes
- Events
- Simple events Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Facial recognition Yes
- Smart events
Line crossing detection, intrusion detection
Supports human and vehicle target classification
Face detection
- Connection Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
- Smart learning features
- Perimeter security
Line crossing detection, intrusion detection
Supports human and vehicle target classification
- Home
- Connection method Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
- Dimensions Ø105mm × 293mm (Ø4.13" × 11.53")
- Package dimensions 386 mm × 156 mm × 155 mm (15.2" × 6.2" × 6.2")
- Weight Approx. 1090 g (2.4 lb.)
- Weight with packaging Approx. 1590 g (3.5 lb.)
- Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Start-up and operating conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Online menu languages
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Main functions Anti-flicker, heartbeat, password reset via email, pixel counter
- Firmware version V5.5.113
- Software recovery Yes
- Power consumption and current
-2I:
12 VDC, 0.67 A, max. 8.0W
PoE (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9.0 W
-4I:
12 VDC, 0.92 A, max. 11.0 W
PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W
- Energy consumption
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
- Energy interface Ø5.5 mm coaxial power plug
- Power
-2I:
12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W
-4I:
12 VDC ± 25%, 0.92 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approvals
- EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Security UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- Environmental protection CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection IP67 (IEC 60529-2013)
| Weight | 1.117 kg |
