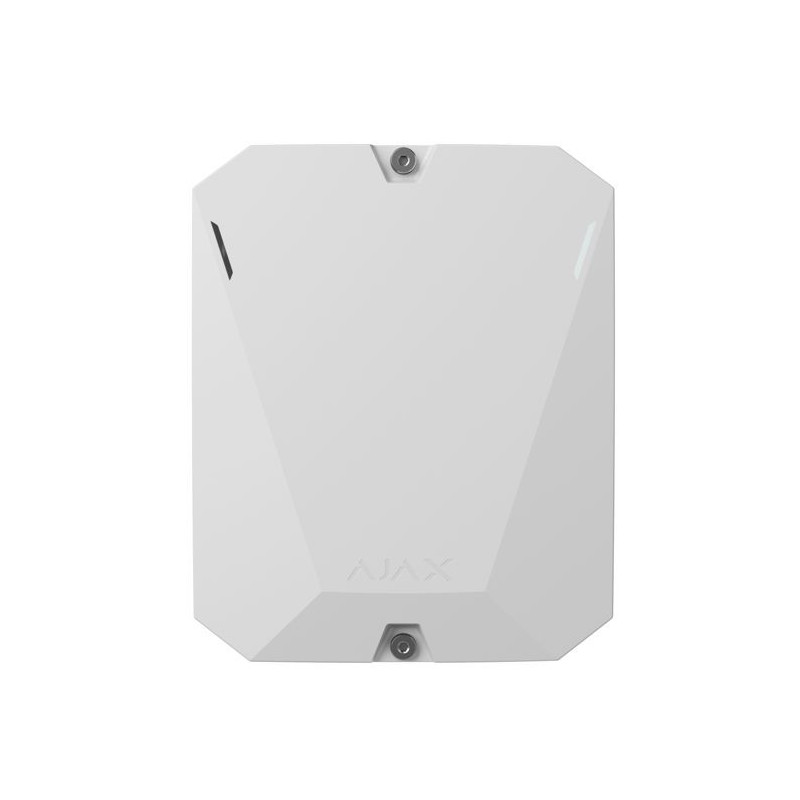

Belaidis modulis AJAX MultiTransmitter (Baltas)
Prekės kodas:
26-4823114015250
- Tipas: Bevielis modulis
- Modelis: MultiTransmitter
- Prekės ženklas: Ajax
- Spalva: Balta
- Skirtas: Laidinių jutiklių prijungimui
- Įėjimų skaičius: 18
Belaidis modulis AJAX MultiTransmitter (Baltas)
Prekės kodas:
26-4823114015250
- Tipas: Bevielis modulis
- Modelis: MultiTransmitter
- Prekės ženklas: Ajax
- Spalva: Balta
- Skirtas: Laidinių jutiklių prijungimui
- Įėjimų skaičius: 18
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
24 mėn.
Pristatymas iš Lietuvos
per 2 - 4*
d. d.
- Bendravimas
- Jeweller ryšio technologija Proprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
- Dažnių juostos 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz * 915.85 - 926.5 MHz 921.0 - 922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
- Maksimali efektyvi spinduliuojama galia (ERP) up to 20 mW
- Radijo signalo moduliacija GFSK
- Radijo signalo veikimo nuotolis up to 6,500 ft, Between an integration module and a control panel (or range extender) in an open space., Calculate radio communication range
- Šifruotas ryšys All stored and transmitted data are protected by block encryption featuring a dynamic key.
- Dažnių šuoliai To prevent radio interference and jamming., Learn more
- Wired devices connection
- Number of zones 18 wired zones, Multiple devices can be connected to one zone. The number of connected devices depends on their power consumption.
- Ryšio tipas NC, NO, EOL, MultiTransmitter Jeweller with a firmware version lower than 2.13., NC, NO, EOL, 2EOL, 3EOL, 2EOL and 3EOL connection types are only available for MultiTransmitter Jeweller with the firmware version 2.13.0 or later. The integration module should be added to a compatible hub running on OS Malevich 2.13 or later. If Hub (4G) Jeweller is used, the control panel should be updated to OS Malevich 2.28 or later.
- EOL resistance from 1 kΩ to 7.5 kΩ with 100 Ω increment, MultiTransmitter Jeweller with a firmware version lower than 2.13. EOL resistance is measured automatically in the Ajax PRO apps., from 1 kΩ to 15 kΩ for each resistor, up to 30 kΩ of total resistance, MultiTransmitter Jeweller with a firmware version 2.13 and higher. Resistance is measured automatically for each EOL resistor in the Ajax PRO apps.
- Laido ilgis up to 1,300 ft, When using a signal cable with a 0.00034 sq. in copper-clad aluminium conductor.
- Operacijos režimas pulse, bistable, Adjusted by a PRO or user with admin rights in the Ajax app.
- Įvykių tipai 15 event types of wired devices, Tamper alarm, Intrusion, Fire, Auxiliary alarm, Panic button, Gas alarm, Malfunction, Leakage, Glass break, High temperature, Low temperature, Masking, Duress code (opening), Vibration (seismic sensor), Custom, Adjusted by a PRO or a user with admin rights in the Ajax app.
- Apsauga nuo sabotažo
- Sabotažo signalas Two tampers to detect the MultiTransmitter Jeweller casing opening and alert about detachment from the wall., Learn more
- Apsauga nuo klastojimo device authentication
- Ryšio praradimo aptikimas within 36 seconds, Between a hub or range extender and MultiTransmitter Jeweller. The detection time depends on the Jeweller or Jeweller/Fibra settings.
- Instant detection of wired connection loss, short circuits, and malfunctions when using EOL/2EOL/3EOL connection type, Depends on the connection type.
- Maitinimas
- MultiTransmitter Jeweller power supply 100-240 V~, 50/60 Hz
- Tipas type A, Power supply is used inside the supervised premises.
- Įrenginio darbinės įtampos diapazonas 100-240 V~, 50/60 Hz
- Ramioji įrenginio srovės sąnauda esant nominaliai įtampai 14.6 mA
- Maksimali įrenginio srovės sąnauda esant nominaliai įtampai 69.6 mA
- MultiTransmitter Jeweller backup power supply 12 V⎓, up to 7 Ah capacity with a full charge cycle of up to 30 hours, MultiTransmitter Jeweller average consumption from the backup battery after the main power supply loss is up to 33 mA (without detectors). When using a 7 Ah battery, the minimum operating time at a maximum load of 1 А will be 7 hours. For autonomous work for 12 or 24 hours, the maximum load should be no more than 0.55 A and 0.28 A, respectively. The backup battery is not included in the set.
- Maža baterijos įtampa 11.4 V⎓
- Mažos baterijos atsigavimo įtampa 12.9 V⎓
- Galutinė baterijos įtampa 11.1 V⎓
- Maksimali baterijos išėjimo virpesių įtampa nuo viršūnės iki viršūnės 50 mV⎓
- Minimali atsarginės baterijos energijos lygis įkrautoje būsenoje 100%
- Connected devices power supply 10.5-15 V⎓, up to 1 A of total maximum current consumption, Two power lines powered by MultiTransmitter Jeweller for other devices. One power line for fire detectors.
- Korpusas
- Matmenys 7.55″ × 9.37″ × 3.94″
- Balto įrenginio svoris 30.83 oz
- Juodo įrenginio svoris 28.29 oz
- Darbo temperatūros diapazonas from 14 °F to 104 °F, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
- Drėgmė up to 75%, Humidity of up to 93% is certified according to UL/ULC standards.
- Apsaugos klasė IP40, IK06, The new casing version of MultiTransmitter Jeweller has light guides for the integration module LED indication, while the previous version has the LED indicator on the board.
| Gamintojas | Ajax |
| Gamintojo kodas | AJMULTITRANSB |
| Svoris | 0.874 kg |
