„StarTech.com“ vidinis SATPCIEXADAP maitinimo kabelis

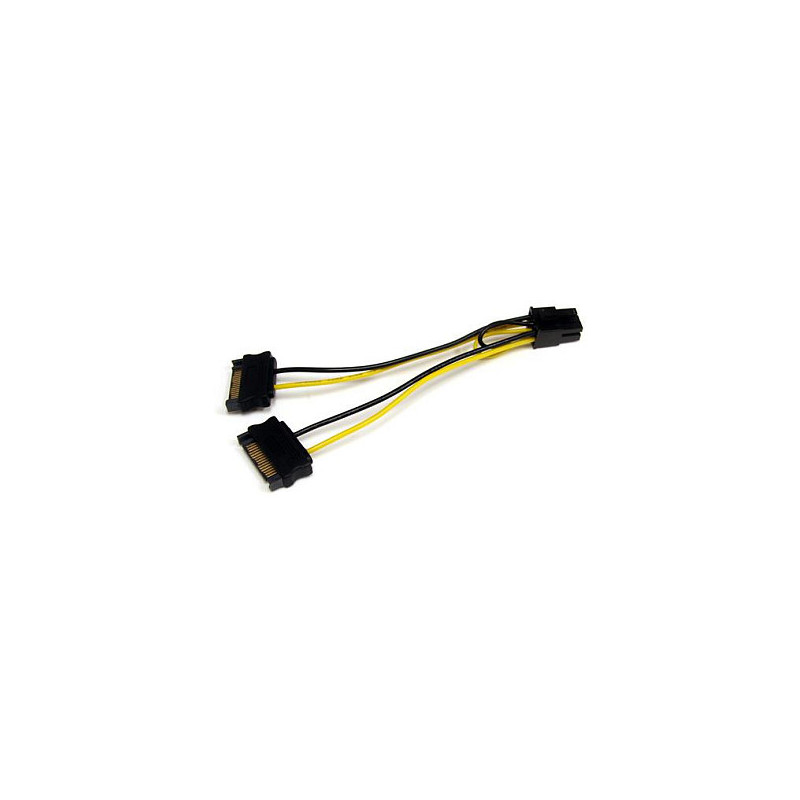

StarTech.com 6in SATA Power to 6 Pin PCI Express Video Card Power Cable Adapter. Connector 1: SATA 15-pin, Connector 2: PCI-E (6-pin), Cable length: 0.15 m. Compliance certificates: RoHS, Certification: CE, REACH. Width: 31.2 mm, Depth: 152.4 mm, Height: 20 mm. Package width: 128 mm, Package depth: 114 mm, Package height: 21 mm. Jacket material: Polyvinyl chloride (PVC)

Convert two 15-pin SATA power supply connectors to a 6-pin PCI Express video card power connector

The SATPCIEXADAP SATA to PCI Express Video Card Power Adapter Cable features a 6-pin PCI Express (male) power connector as well as two 15-pin SATA (male) power connectors, providing a cost-effective way to connect a PCIe video card to Serial ATA power connectors provided by the computer power supply, and eliminating the need to upgrade the power supply for the sake of video card compatibility.

NOTE: When powering a graphics card, we recommend using two separate power supply cables, each with a SATA power connector.

Features

Cable length: 0.15 m

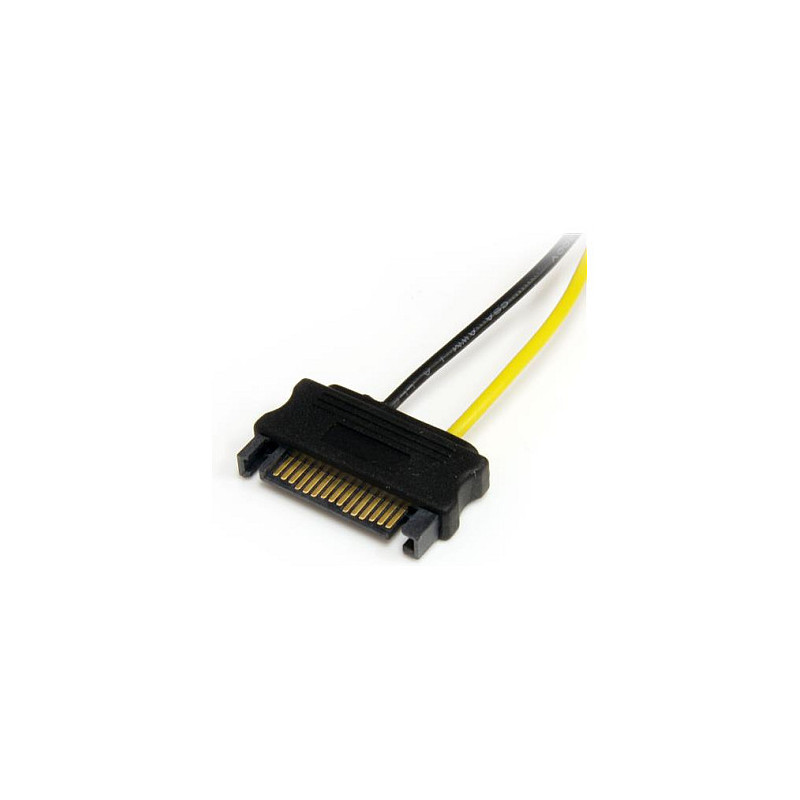

Connector 1: SATA 15-pin

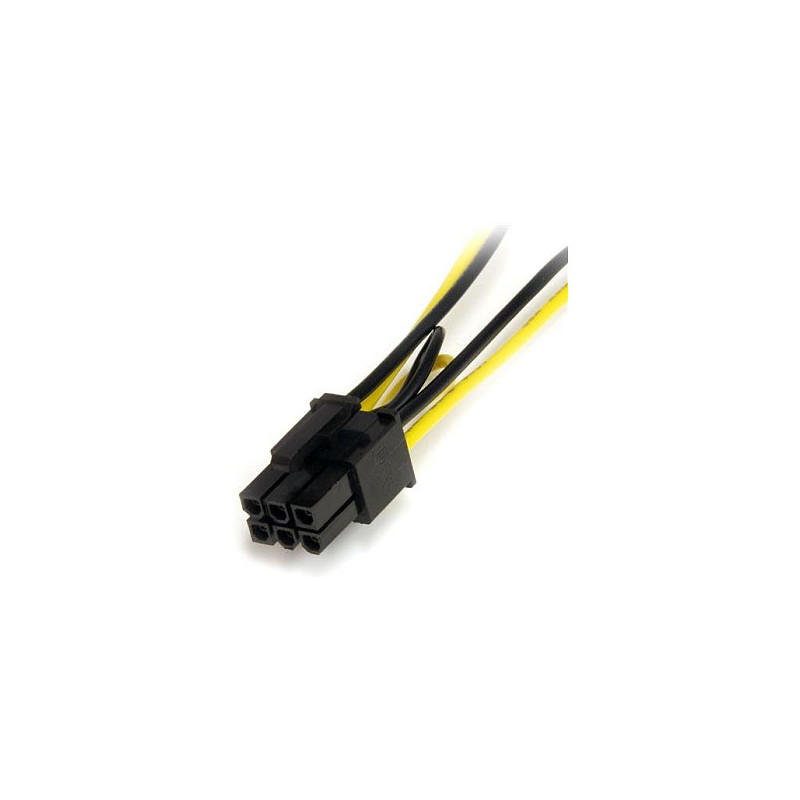

Connector 2: PCI-E (6-pin)
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Product colour: Black, Yellow

Certificates

Compliance certificates: RoHS
Certification: CE, REACH

Weight & dimensions

Width: 31.2 mm
Depth: 152.4 mm
Height: 20 mm
Weight: 15 g

Packaging data

Package width: 128 mm
Package depth: 114 mm
Package height: 21 mm
Package weight: 23 g

Other features

Jacket material: Polyvinyl chloride (PVC)

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 308 mm
Master (outer) case length: 470 mm
Master (outer) case height: 312 mm
Products per master (outer) case: 600 pc(s)
