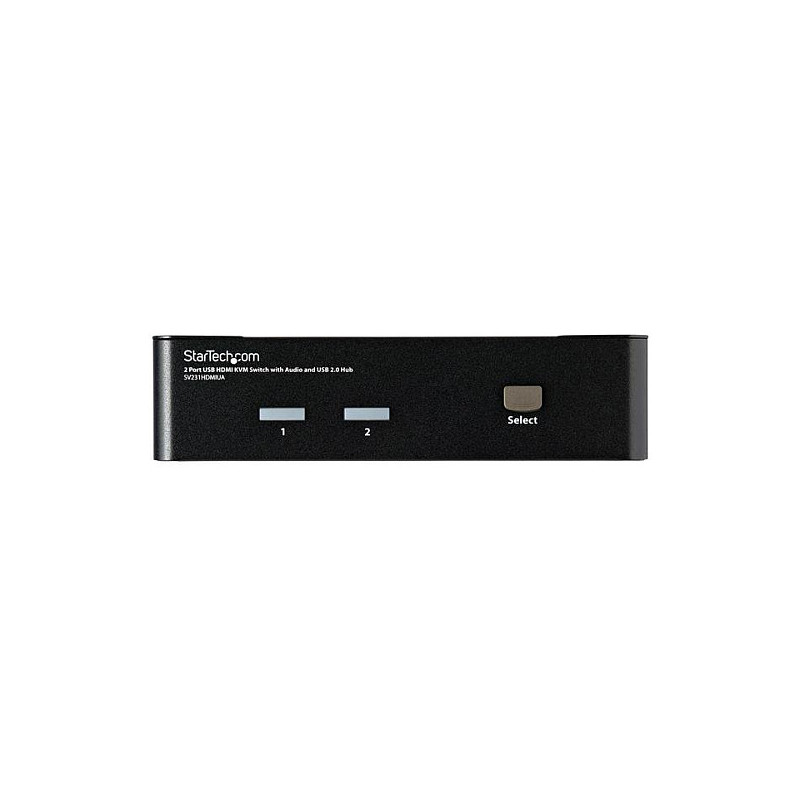

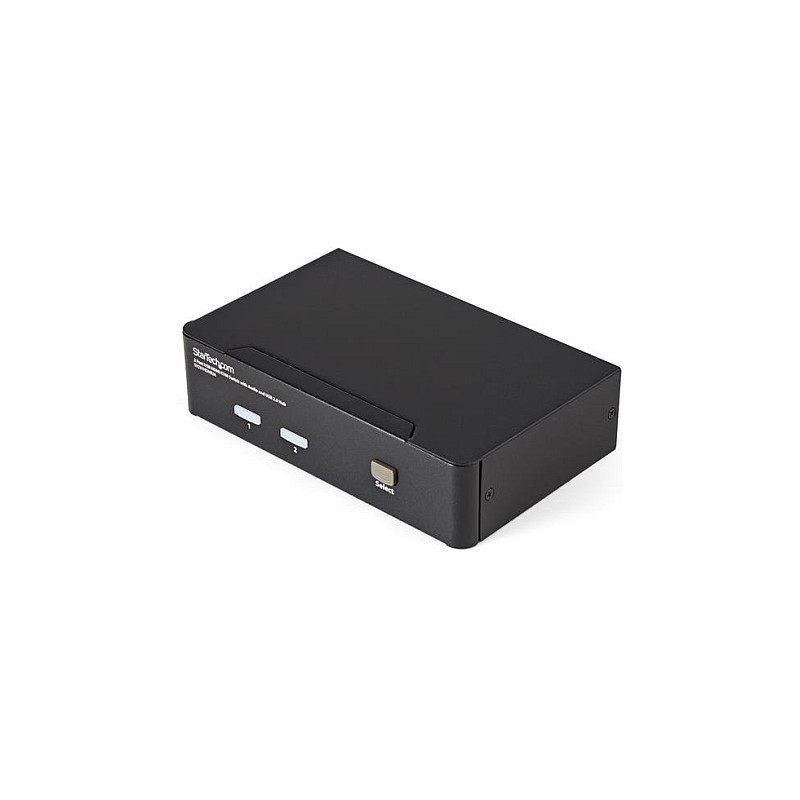

„StarTech.com“ SV231HDMIUA KVM komutatorius

StarTech.com 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub - TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels. Product colour: Black, Mean time between failures (MTBF): 126813 h, Certification: R0HS. Input voltage: 100 - 240, 12 V, Input current: 0.8 A, Output current: 1.5 A. Width: 125 mm, Depth: 70 mm, Height: 40 mm

Share a keyboard, mouse and HDMI® monitor between 2 multimedia computers

The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).

A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.

Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.

The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI

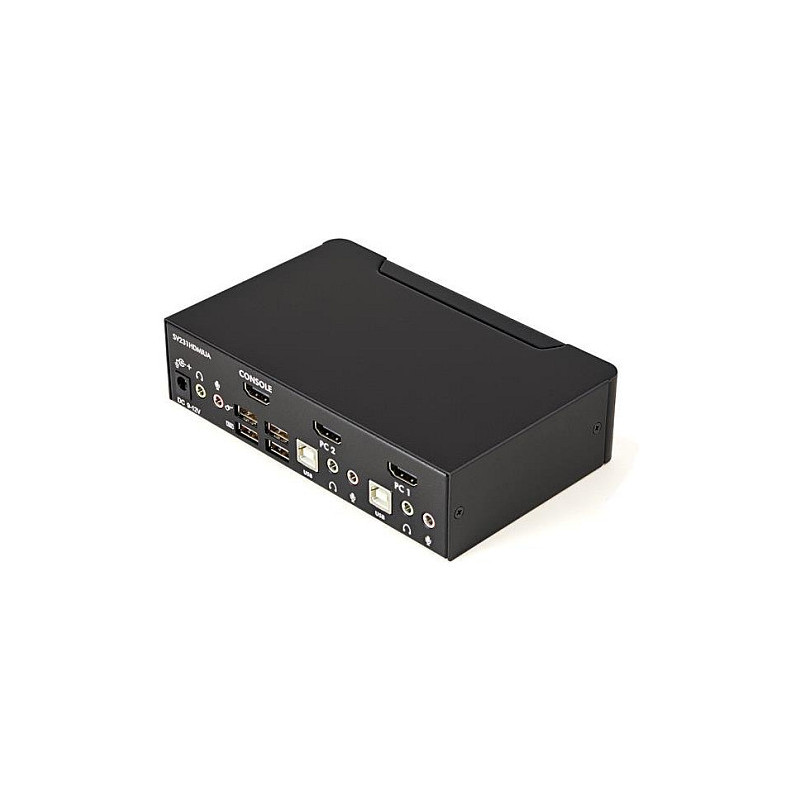

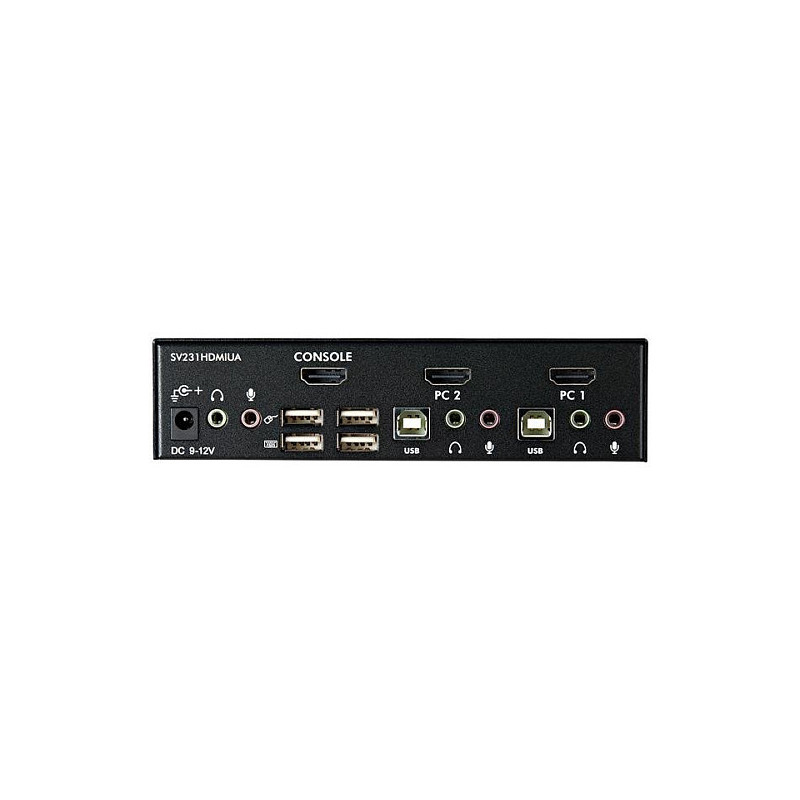

Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity: 4
Headphone outputs: 3
Number of microphone inputs: 3

Performance

HD type: Full HD
Maximum resolution: 1920 x 1200 pixels

Design

Product colour: Black
Mean time between failures (MTBF): 126813 h
Certification: R0HS

Power

Input voltage: 100 - 240, 12 V
Input current: 0.8 A
Output current: 1.5 A
Power consumption (typical): 18 W
Power plug type: Type M

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 125 mm
Depth: 70 mm
Height: 40 mm
Weight: 634 g

Packaging data

Package width: 188 mm
Package depth: 252 mm
Package height: 98 mm
Package weight: 1.1 kg

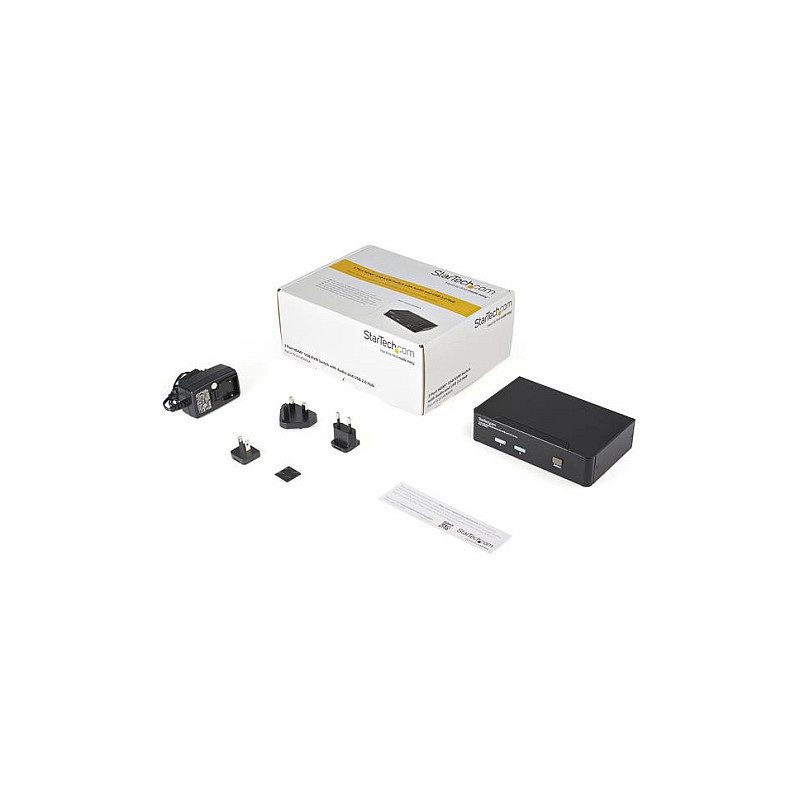

Packaging content

Feature: Manual
Feature: AC adapter included
Feature: Rubber feet

Other features

Connectivity technology: Wired
I/O ports: 1x HDMI (F)4x USB A (F)6x 3.5mm (F)2x USB B (F)2x mini-HDMI (F)
Dimensions (WxDxH): 124.8 x 70 x 40 mm
Ports quantity: 2
Power requirements: AC 110 - 240 V

Logistics data

Harmonized System (HS) code: 85176200
Master (outer) case width: 280 mm
Master (outer) case length: 404 mm
Master (outer) case height: 342 mm
Products per master (outer) case: 6 pc(s)
