StarTech.com NOTECONS02X KVM komutatorius

StarTech.com Laptop-to-Server KVM Console with Rugged Housing - TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic, LED indicators: Activity, Link. Power source: USB. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows...

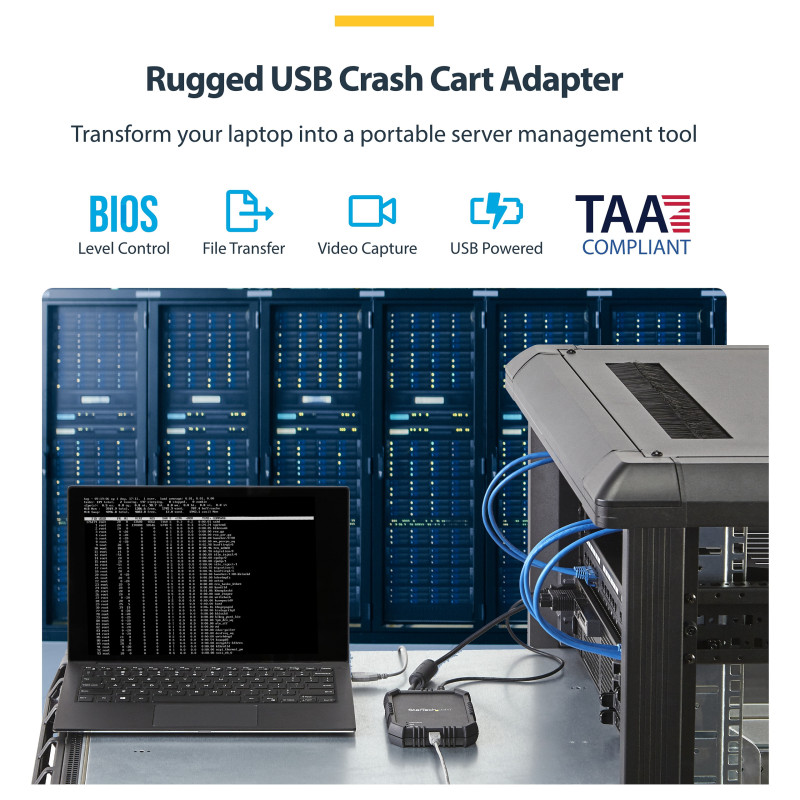

Use this USB crash-cart adapter to turn your laptop into a portable KVM console for accessing servers, ATMs and kiosks with file transfer and video capture

This rugged and portable USB crash cart adapter lets you turn your laptop into a portable console for accessing servers, desktops and laptops, as well as ATMs, kiosks or any computing device that features both VGA and USB ports.

This adapter also supports local file transfer and video capturing built into the software.

Maximum durability

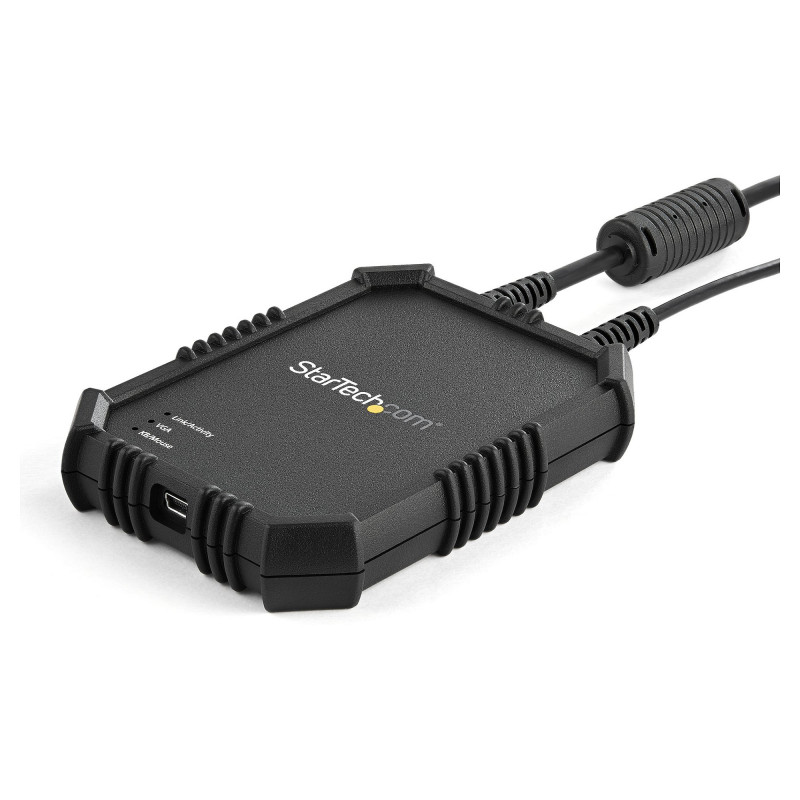

This crash cart adapter has been specifically designed for maximum durability. It features a rugged, rubberized housing that can handle drops by absorbing shock, to make sure that you're equipped for unexpected challenges.

Hassle-free operation

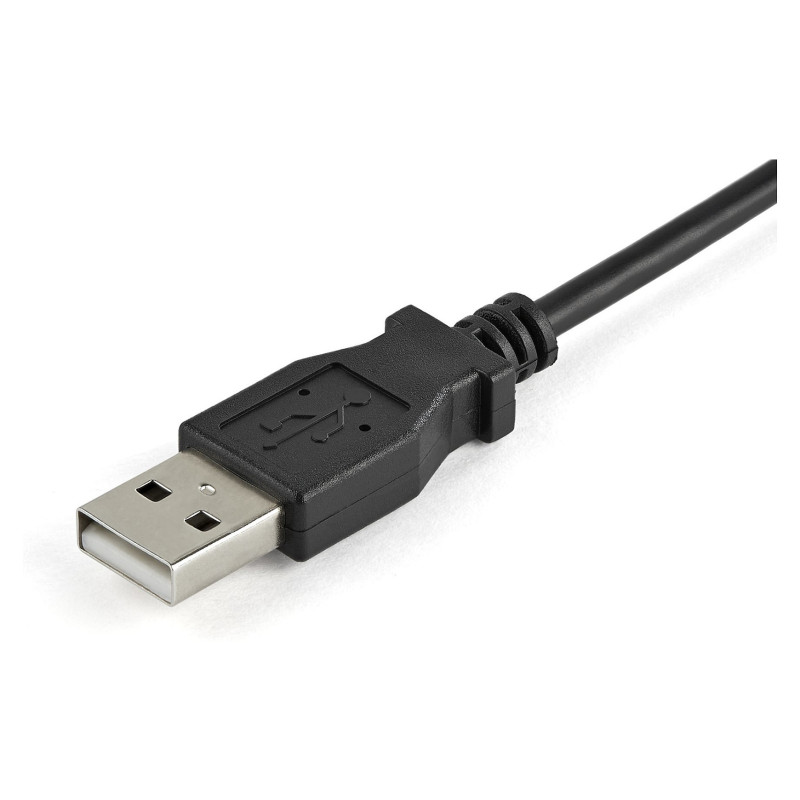

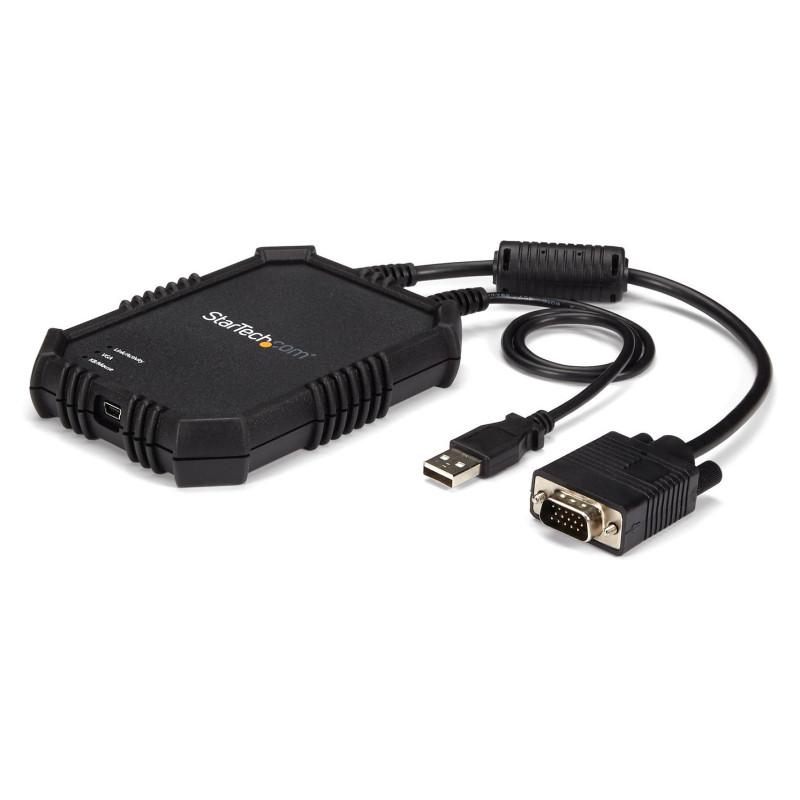

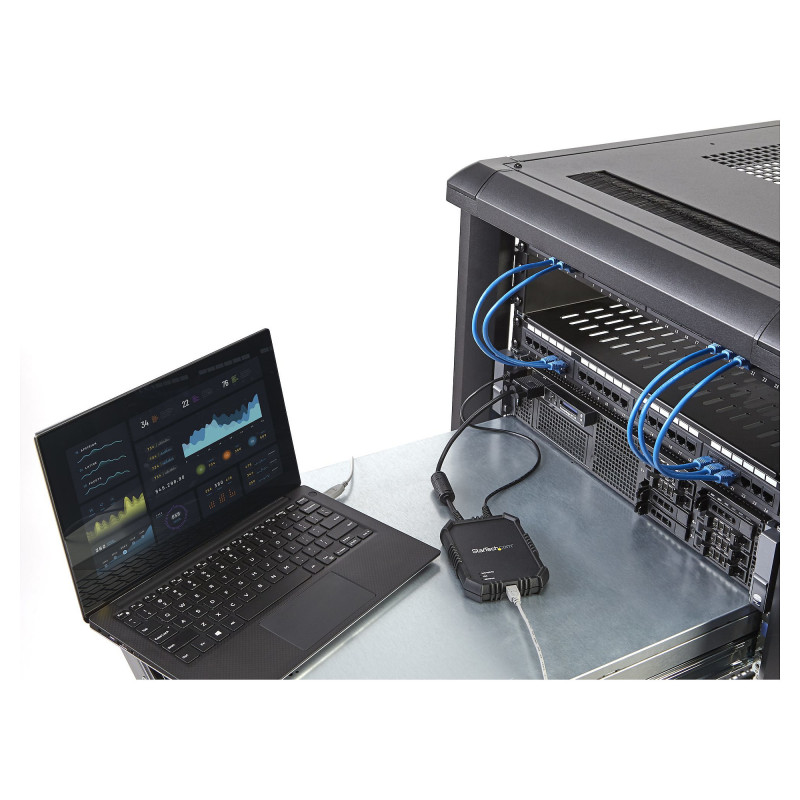

Troubleshoot your devices quickly and easily. Simply connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB and VGA cables to your server.

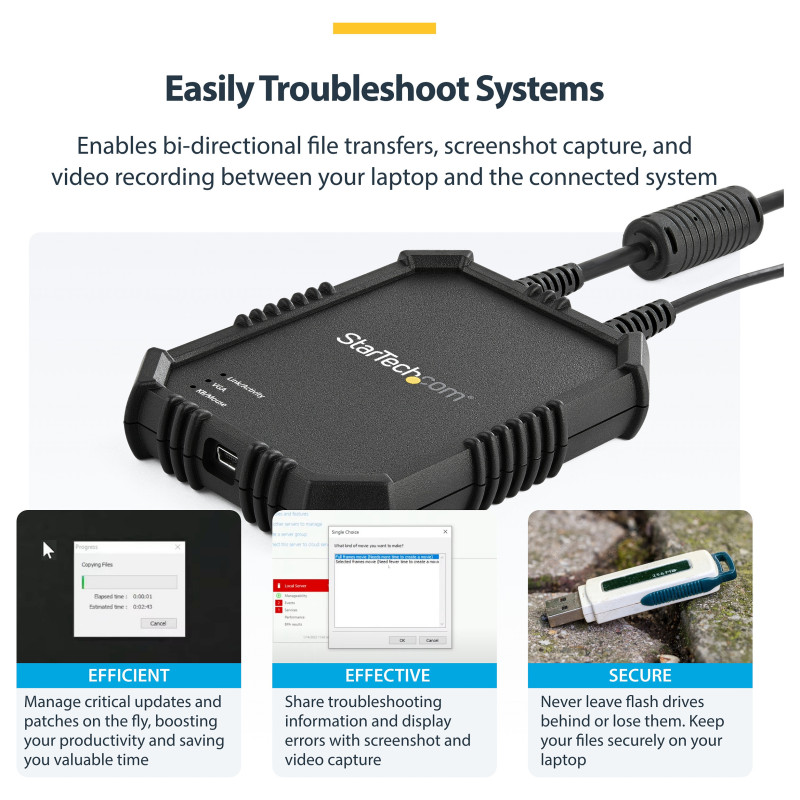

The crash cart adapter features a flexible software interface that offers robust performance. It enables you to transfer files from your laptop to the server, monitor and capture activity from the connected device as video for records or instructional purposes, and take screenshots and scale the display window to full-screen mode or smaller, without scroll bars.

Compact portability

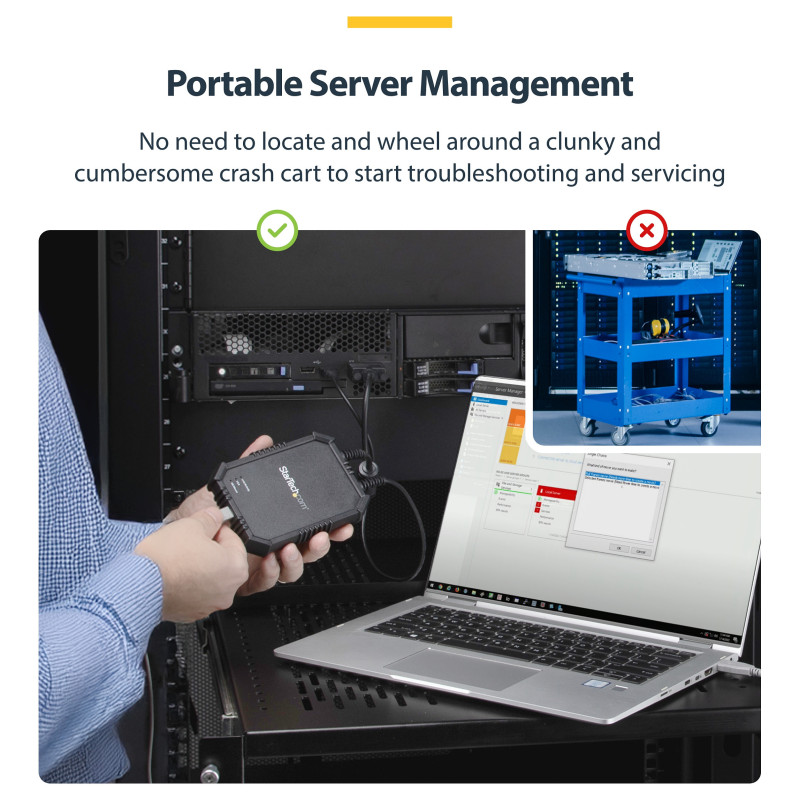

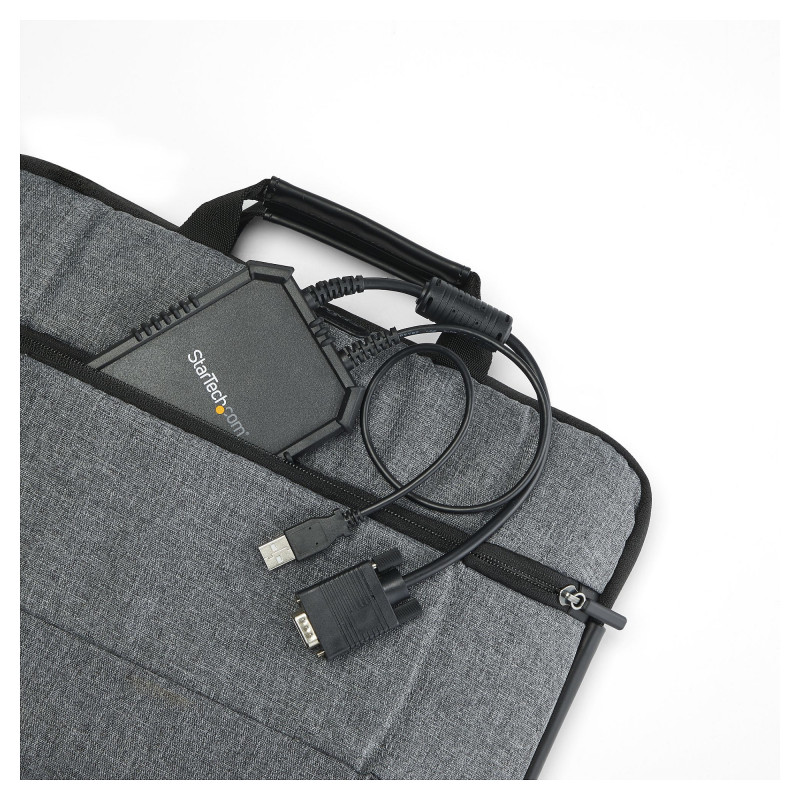

This compact crash cart adapter lets you connect to a headless device using only a laptop, eliminating the need to lug around an awkward, traditional server room crash cart. With optimal portability in mind for your mobile administration or repairs, this pocket-sized adapter features a small footprint and lightweight design that easily fits inside your laptop bag.

The adapter is USB powered so you won't need to carry a power adapter. Plus, the KVM cables are attached to the crash cart adapter so you won't need additional accessories to connect it to your server. The built-in cables have been engineered with strain relief, preventing them from wearing or breaking.

Universal connectivity

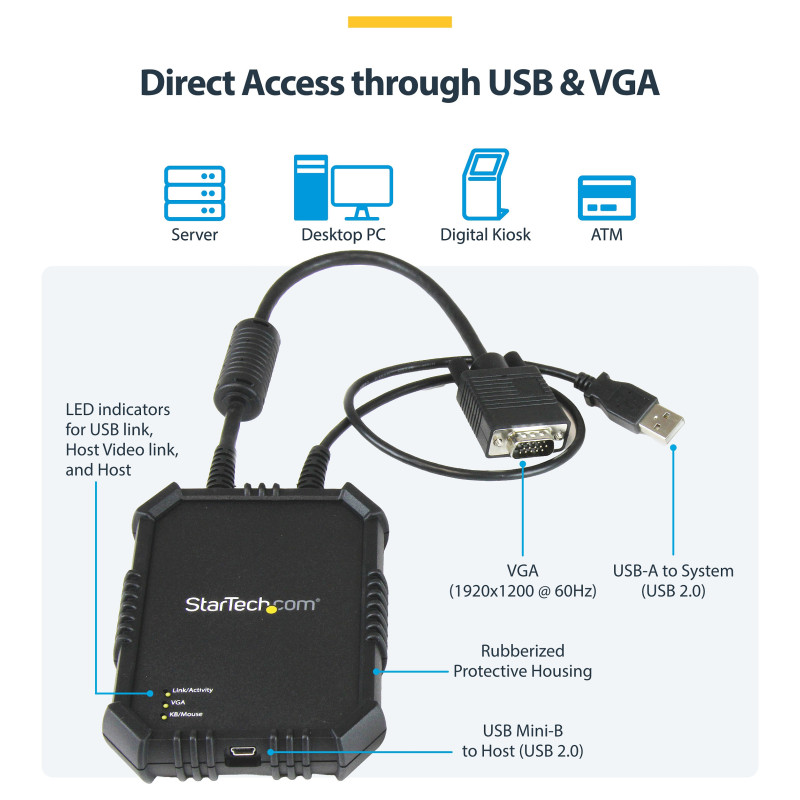

With no server-side software installation required, the USB crash cart adapter provides BIOS-level control of any PC or device that has both a VGA port and a USB port.

*Please note that the mouse function may be limited in some BIOS/UEFI environments

Ports & interfaces

Number of computers controlled: 1
Keyboard port type: USB
Mouse port type: USB

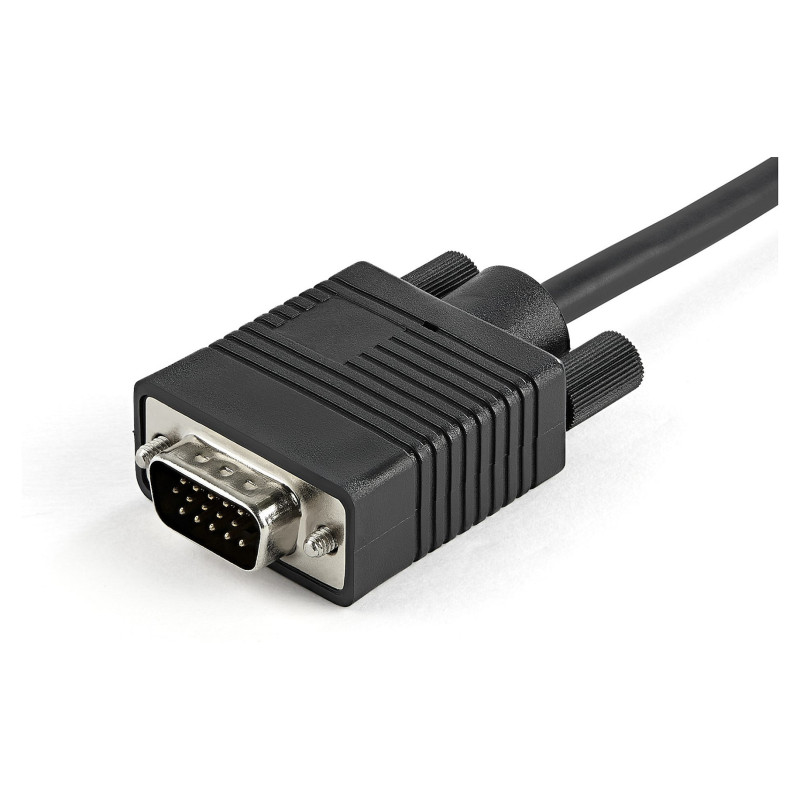

Video port type: VGA
VGA (D-Sub) ports quantity: 1
USB connector type: Mini-USB B

Performance

HD type: Full HD
Maximum resolution: 1920 x 1200 pixels
Video bandwidth: 60 Hz
Number of users: 1 user(s)

Design

Product colour: Black
Housing material: Plastic
LED indicators: Activity, Link
Certification: RoHS, CE, FCC

Power

Power source: USB

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Sustainability

Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 80%

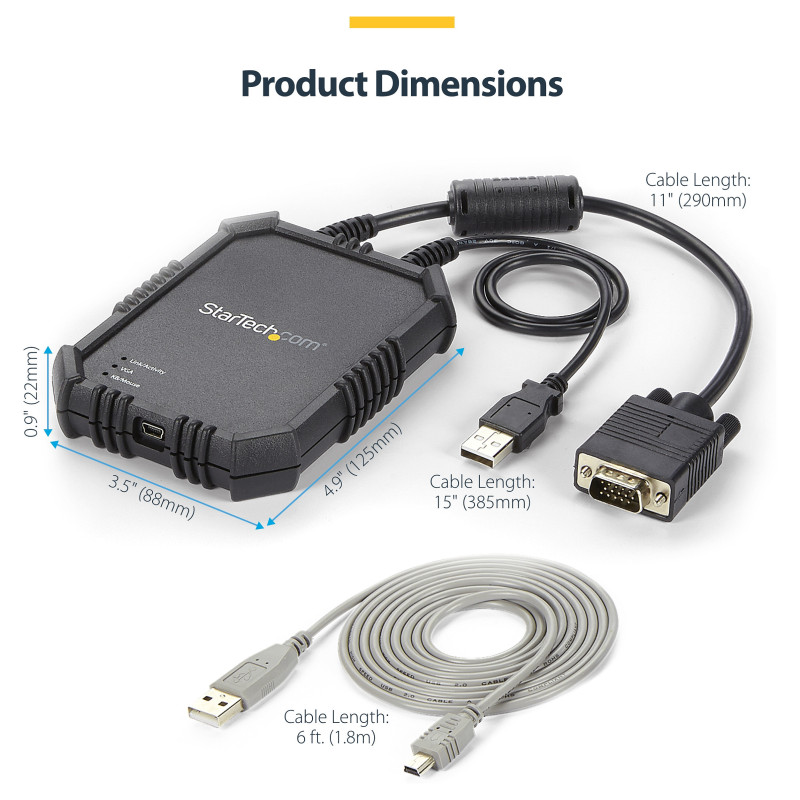

Weight & dimensions

Width: 88 mm
Depth: 115 mm
Height: 22 mm
Weight: 244 g

Packaging data

Package width: 169 mm
Package depth: 300 mm
Package height: 53 mm
Package weight: 500 g

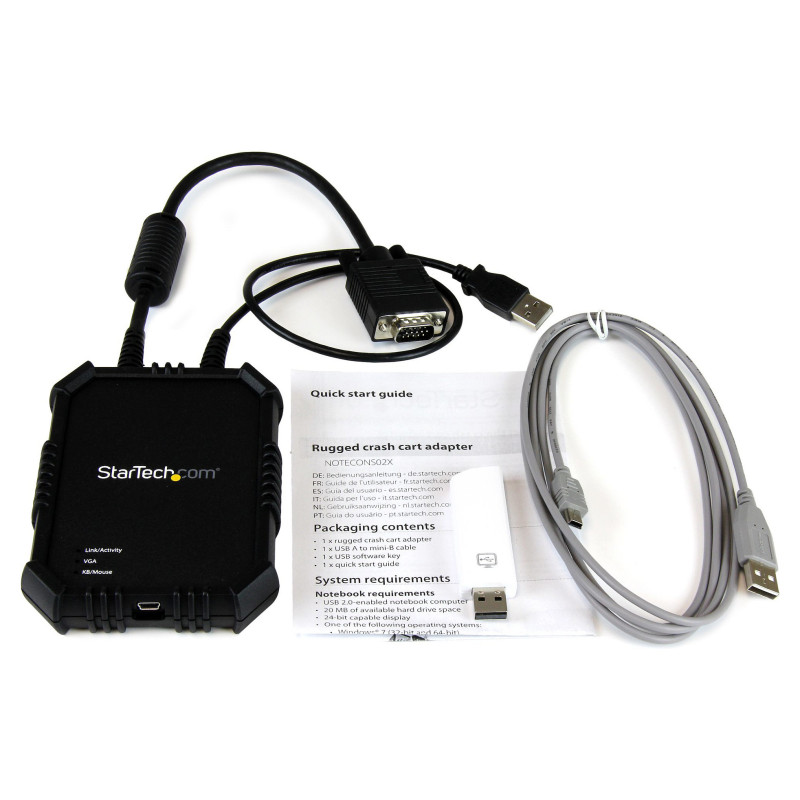

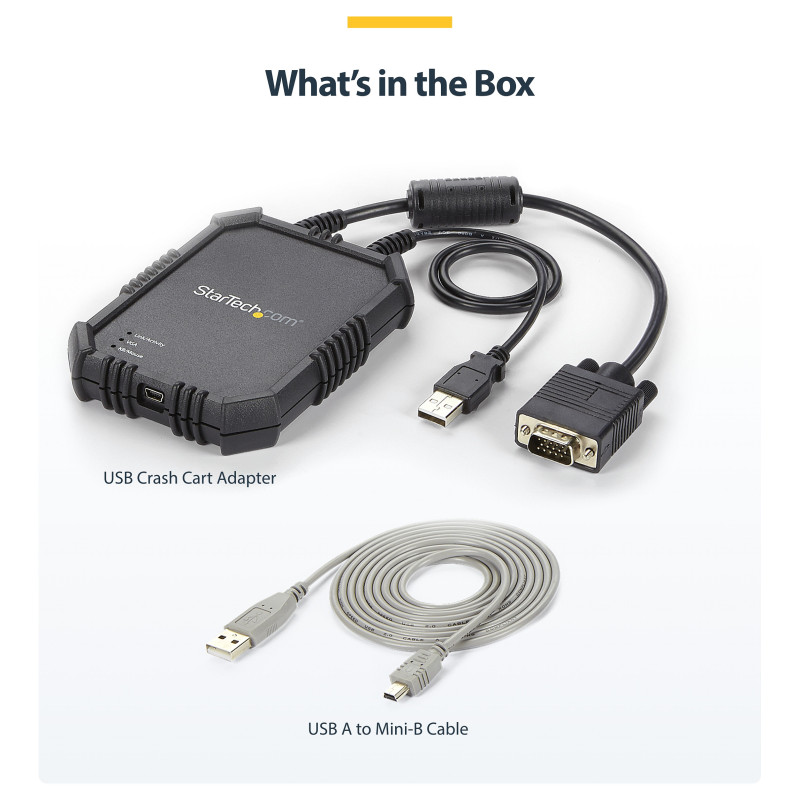

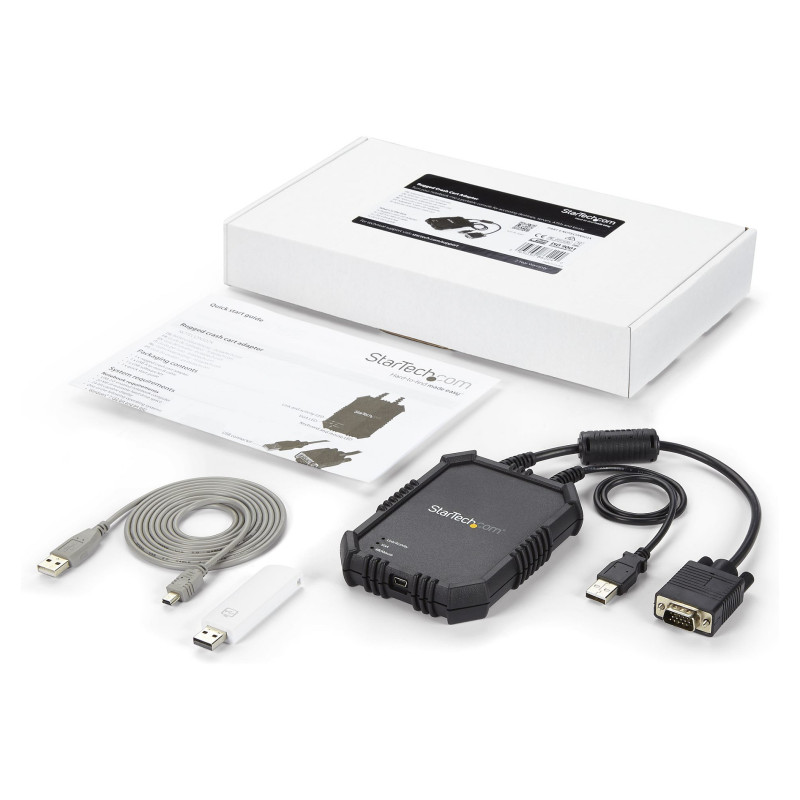

Packaging content

Cables included: USB
Feature: Quick installation guide
Feature: Software included

Logistics data

Harmonized System (HS) code: 85176200
Master (outer) case width: 538 mm
Master (outer) case length: 321 mm
Master (outer) case height: 526 mm
Products per master (outer) case: 30 pc(s)
