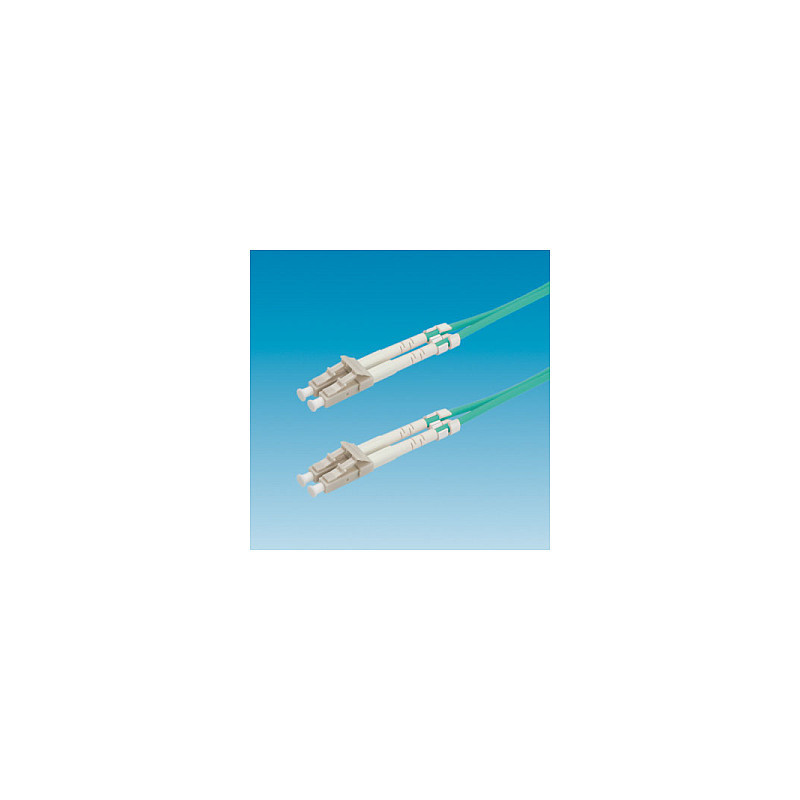

ROLINE 50 / 125µm OM3 LC / LC 5m InfiniBand / šviesolaidinis cable

ROLINE FO Jumper Cable 50/125µm OM3, LC/LC, Low-Loss-Connector 5m. Cable length: 5 m, Fibre optic type: OM3, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex

- Security for the future! The OM3 fiber and connector quality with very low insertion loss ensure an excellent quality at very high bandwidths.
- Material and assembly in ROLINE quality
- The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. In comparison:
- Typical attenuation of a standard LC connector: 0.5 dB
- Typical attenuation of a low-loss LC connector: 0.15 dB
- Duplex cables with fiber type Multi-mode 50/125µm, OM3
- Color: turquoise

Features

Cable length: 5 m
Fibre optic type: OM3
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Turquoise
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Insertion loss: 0.2 dB
Jacket material: Polyvinyl chloride (PVC)

Sustainability

Doesn't contain: Halogen

Operational conditions

Operating temperature (T-T): -20 - 70 °C
Storage temperature (T-T): -40 - 80 °C

Other features

Length: 5 mm
Number of optical fibres: 2

Logistics data

Harmonized System (HS) code: 85447000
