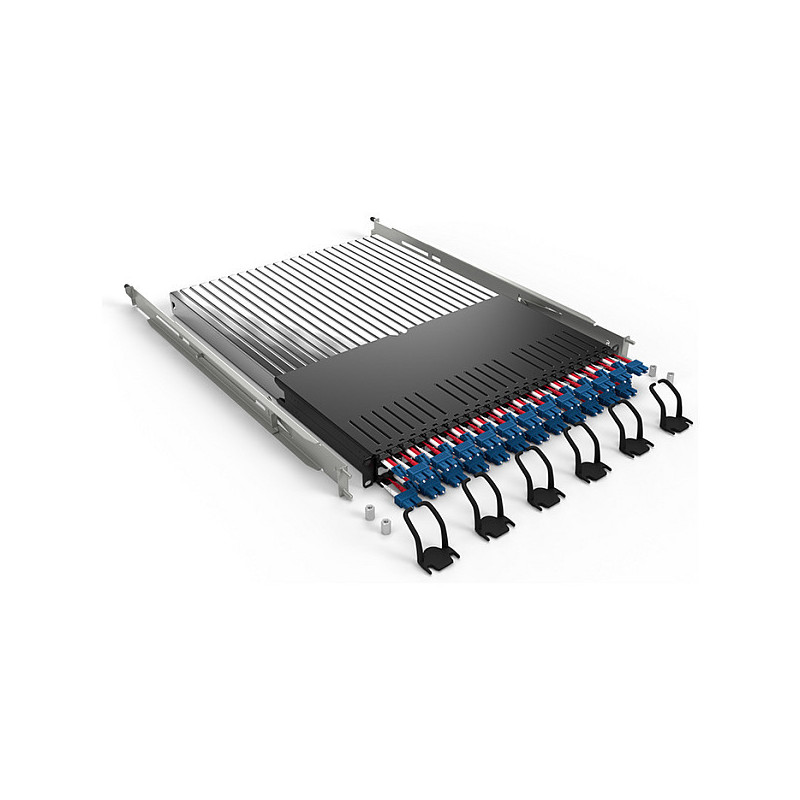

PATCHBOX Plus+ OS2 InfiniBand / šviesolaidinis kabelis

PATCHBOX Plus+ OS2. Cable length: 1.8 m, Cable type: OFC, Fibre optic type: OS2, Connector 1: LC, Connector 2: SC, Core diameter: 9 µm, Full duplex

PATCHBOX® is the most innovative cabling system for network cabinets ever. No more cable spaghetti, as the fiber optic cables are always available in the correct length. Easy to install and reduced maintenance. Saves massive amounts of time and money. The PATCHBOX® Plus+ is suitable for up to 30RU with a cable length of 1.8m. Our RoHS conform optic cables with Corning®-fibres are one of the very best on the market. Extractable fibre optic cables for the perfect length. Cable stopper for precise cable length adjustment. Each PATCHBOX® Cassette has its own labelling option. Steel frame for up to 24 PATCHBOX® Cassettes. PATCHBOX® Patchcatch (0RU cable management) also included for free. Easy replacement of PATCHBOX® Cassettes. PATCHBOX® has been designed with speed and simplicity in mind. The installation of the PATCHBOX® and the patching of the 24 cables is on average 8 times faster than the conventional method. Likewise, the typical maintenance work (moves, adds, changes) and the replacement of a switch are even 10 times faster. In addition, the PATCHBOX® enables a higher packing density in the network cabinet compared to the conventional method. This means: More components in your network cabinet with a better overview!

Features

Cable length: 1.8 m
Fibre optic type: OS2
Connector 1: LC
Connector 2: SC
Connector 1 gender: Male
Connector 2 gender: Male
Connector polish type: PC
Cable type: OFC
Product colour: Yellow
Feature: Full duplex
Core diameter: 9 µm
Cladding diameter: 125 µm
Fiber mode structure: Single-mode
Ethernet interface type: 100 Gigabit Ethernet
Data transfer rate: 100 Gbit/s
Insertion loss: 0.1 dB
Jacket material: Low smoke zero halogen (LSZH)
Connector material: Ceramic

Certificates

Certification: CE

Operational conditions

Operating temperature (T-T): 10 - 45 °C

Packaging data

Package width: 590 mm
Package depth: 790 mm
Package height: 50 mm
Package weight: 12 kg

Other features

Connector(s): LC, SC
Material: Plastic, Stainless steel

Logistics data

Country of origin: Hungary
