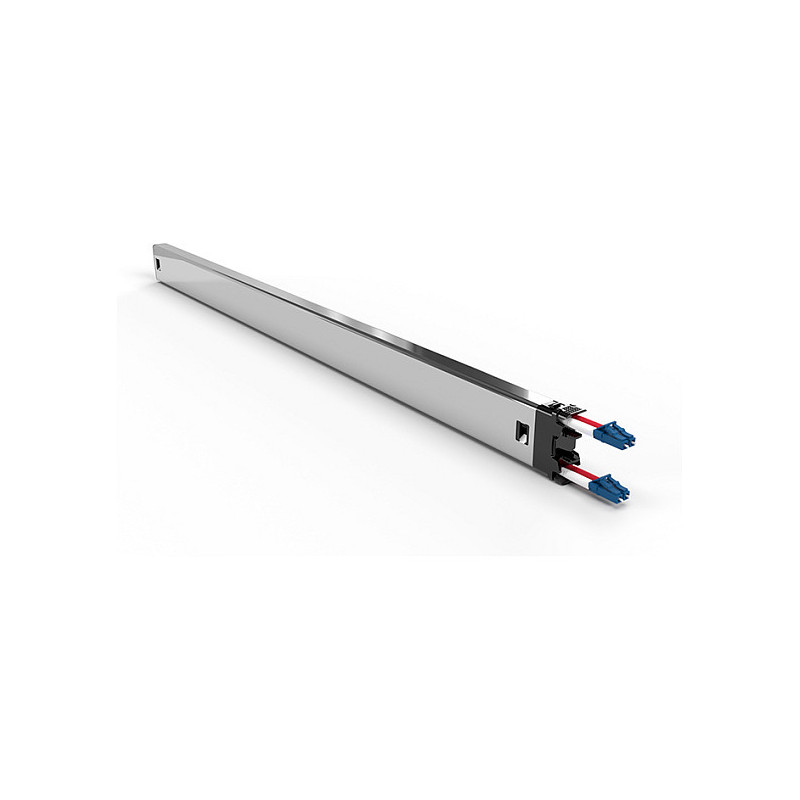

PATCHBOX C60SMAOS211X1Y InfiniBand / šviesolaidinis kabelis

PATCHBOX C60SMAOS211X1Y. Cable length: 1.8 m, Cable type: OFC, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm, Full duplex

PATCHBOX® Cassettes are the heart of every PATCHBOX®. Each PATCHBOX® Cassette contains our unique and patented mechanism that provides state-of-the-art cable management in your network cabinet. The modular PATCHBOX® Cassettes are available in single packs and offer full customization options for the PATCHBOX®. Make sure you combine the PATCHBOX® Cassettes with the matching PATCHBOX® Frame (Plus+ or 365). The PATCHBOX® Cassettes are equipped with RoHS conform optic cables with Corning®-fibres, the most bend insensitive currently available. They are available in 2 different types (OS2 Singlemode / OM4 Multimode) and the following connector types: LC-LC or LC-SC.

Features

Cable length: 1.8 m
Fibre optic type: OS2
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Connector polish type: PC
Cable type: OFC
Product colour: Yellow
Feature: Full duplex
Core diameter: 9 µm
Cladding diameter: 125 µm
Fiber mode structure: Single-mode
Wavelengths supported: 1310,1550 nm
Ethernet interface type: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Data transfer rate: 100 Gbit/s
Insertion loss: 0.1 dB
Jacket material: Low smoke zero halogen (LSZH)
Connector material: Ceramic

Certificates

Certification: CE

Operational conditions

Operating temperature (T-T): 10 - 45 °C

Packaging data

Package width: 50 mm
Package depth: 690 mm
Package height: 50 mm
Package weight: 400 g

Packaging content

Quantity per pack: 1 pc(s)

Other features

Material: Polyoxymethylene (POM), Stainless steel

Logistics data

Country of origin: Hungary
