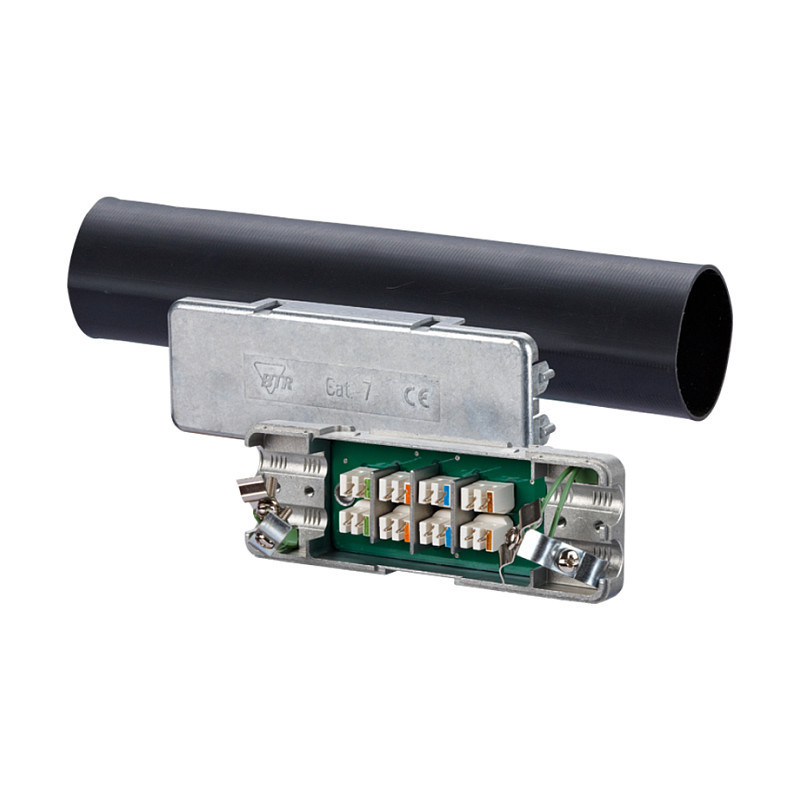

METZ CONNECT 130863-01-E tinklo stiprintuvas

METZ CONNECT 130863-01-E. Cable types supported: Cat6, Cat6a, Cat7. Input current: 0.5 A. Width: 114.2 mm, Depth: 20.5 mm, Height: 36.9 mm. Package type: Box, Package width: 247 mm, Package depth: 58 mm

- for connecting/extending data cables up to Cat.7A
- IP67 protection due to special shrink tube
- class E to ISO/IEC 11801 Ed.2.2:2011-06 is complied with in combination with Cat.6, Cat.6A, Cat.7 and Cat.7A cables and Cat.6 connectors
- connection of data lines AWG 26/1 to 22/1 (solid wire)
- cable feed from one or two sides
- cable sharing, i.e. splitting one 8-wire cable into two 4-wire cables (one cable tie required each on input and output side)
- fully shielded metal housing
- strain relief and separate captive 360° shield connection

Performance

Cable types supported: Cat6, Cat6a, Cat7

Ports & interfaces

Feature: Terminal block port

Power

Input current: 0.5 A

Operational conditions

Operating temperature (T-T): -25 - 85 °C
Storage temperature (T-T): -25 - 85 °C

Weight & dimensions

Width: 114.2 mm
Depth: 20.5 mm
Height: 36.9 mm

Packaging data

Package type: Box
Package width: 247 mm
Package depth: 58 mm
Package height: 161 mm
Package weight: 373 g
