„LogiLink PC0057A“ sąsajos plokštės / adapteris

LogiLink PC0057A. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1). Purpose: PC. Chipset: VIA VL805, Bandwidth: 5 Gbit/s. Windows operating systems supported: Windows 7 Home Basic, Windows 8, Windows 8.1, Windows Vista Home Basic, Windows XP Home. Package width: 172 mm, Package depth: 167 mm, Package height: 60 mm

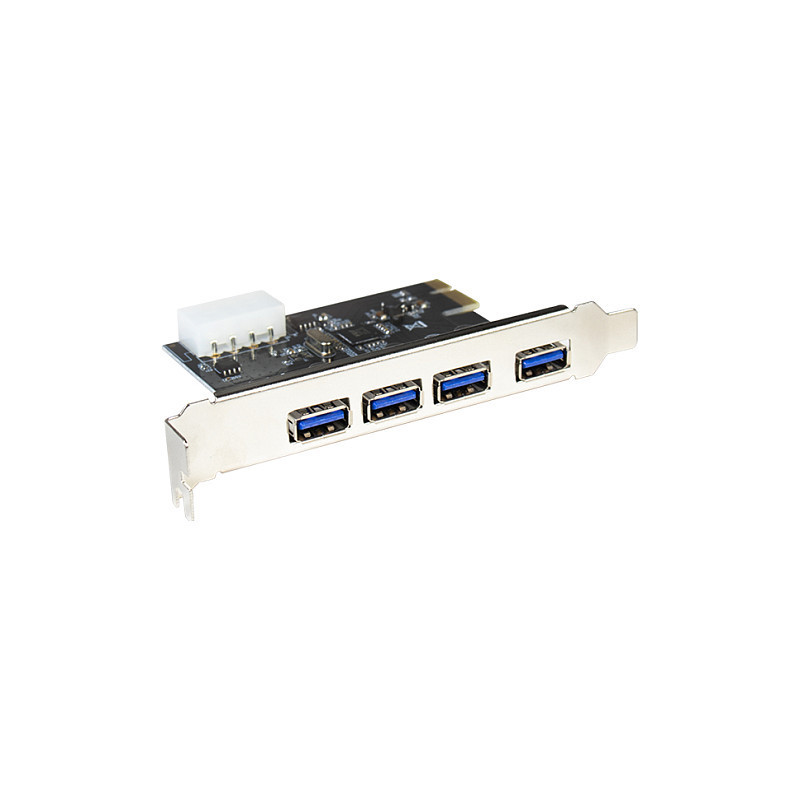

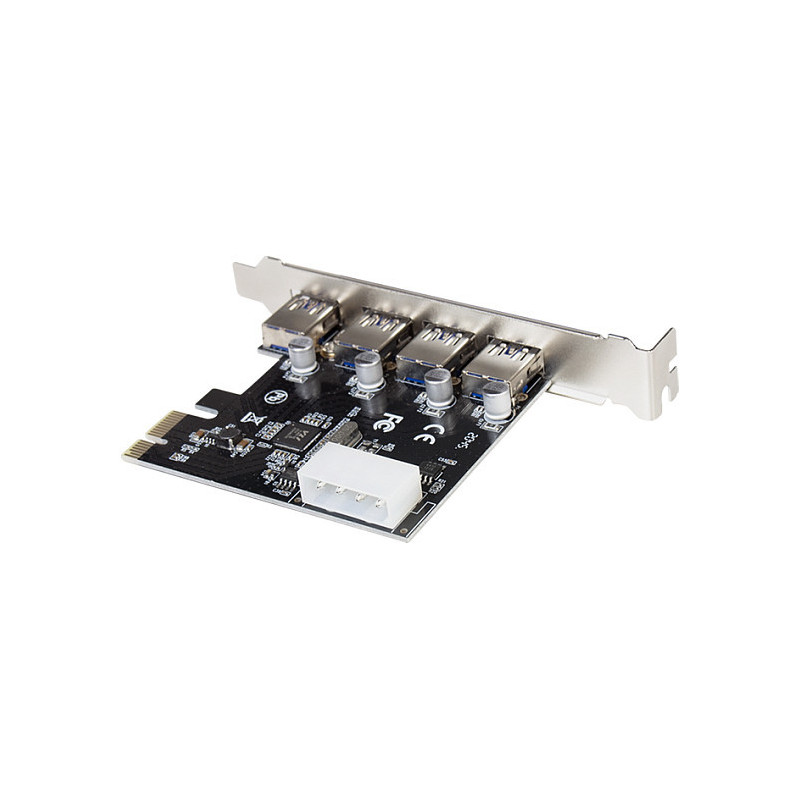

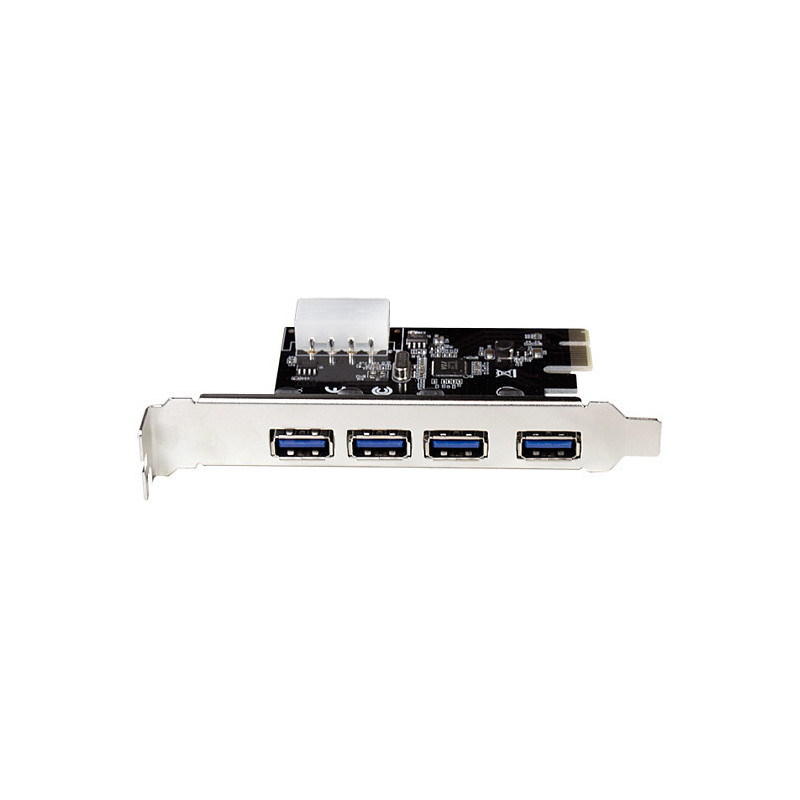

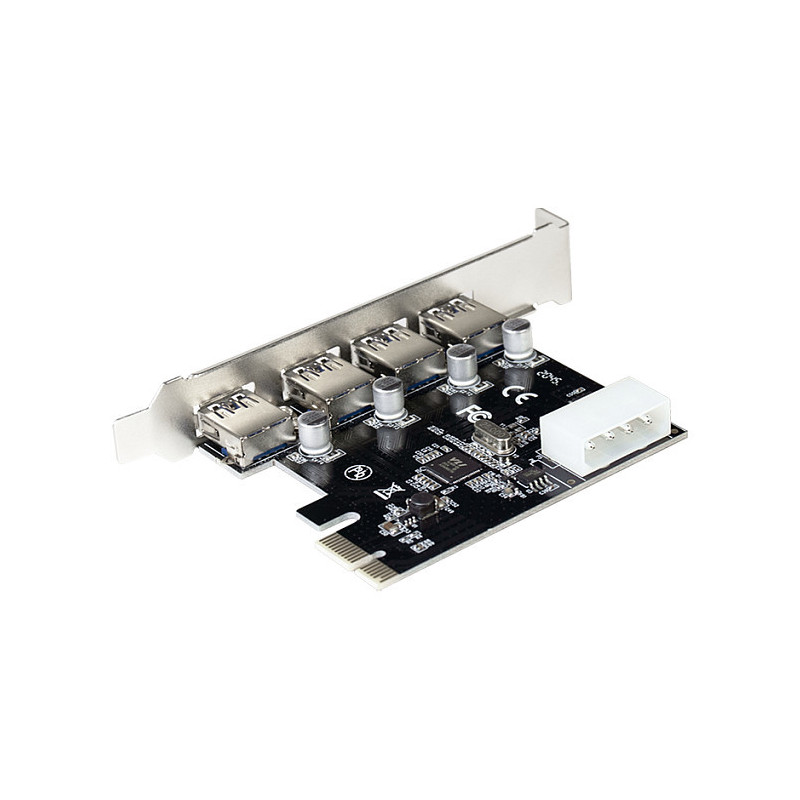

Expansion card LogiLink for 4 additional USB 3.0 ports. The interface is installed in the PCI Express port of your computer with Plug and Play support. It supports USB 3.0 transfer rates of up to 5 Gbps and an electricity supply of up to 900 mA per port. Backwards-compatible USB 2.0 or USB 1.1 devices are operated.

- PCI Express card, USB 3.0.
- Chipset: VIA VL805.
- 4x USB 3.0 (Type A) female.
- Backward compatible with USB 2.0/1.1.
- Specification according to USB 3.0.
- Max. Transfer rate: 5 GBit/s.
- USB Legacy function.
- Internal power supply via 5.25".
- Maximum of 900 mA per USB 3.0 port.
- Supports Windows XP/Vista/7/8/8.1.

Ports & interfaces

Host interface: PCIe
Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Design

Feature: Internal
Purpose: PC
Feature: Hot-Plug support

Features

Chipset: VIA VL805
Bandwidth: 5 Gbit/s
Feature: Plug and Play

System requirements

Windows operating systems supported: Windows 7 Home Basic, Windows 8, Windows 8.1, Windows Vista Home Basic, Windows XP Home

Technical details

Compliance certificates: RoHS

Packaging data

Feature: User guide
Package width: 172 mm
Package depth: 167 mm
Package height: 60 mm
Package weight: 140 g

Logistics data

Harmonized System (HS) code: 84733020
