Lindy 46313 InfiniBand / fibre optic cable

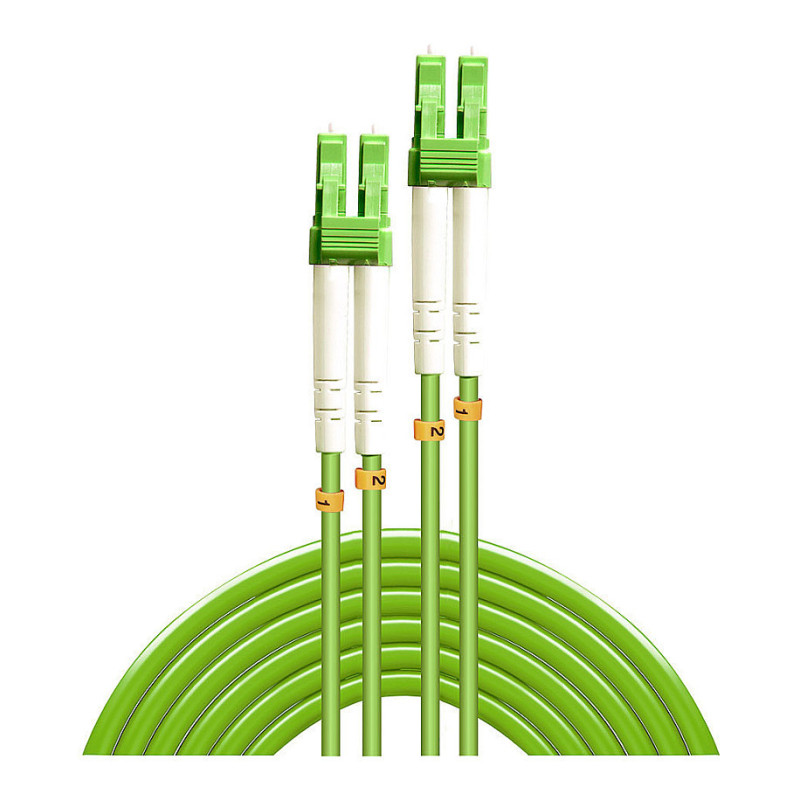

Lindy 5m Fibre Optic Cable LC/LC, 50/125µm, OM5. Cable length: 5 m, Fibre optic type: OM5, Connector 1: 2x LC, Connector 2: 2x LC, Core diameter: 50 µm, Full duplex

Lindy Multimode fibre optic patch cables are ideal for use in telecoms and for high speed data connections, suitable for use with today's increasing demand for bandwidth.

The fibre optic connection ensure low signal loss and high reliability; the connectors are compatible with all standard fibre optic equipment.

OM5 fibre optic cables are available in lengths from 1m to 20m.

Features

Cable length: 5 m
Fibre optic type: OM5
Connector 1: 2x LC
Connector 2: 2x LC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Green
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Wavelengths supported: 850,953,1300 nm
Data transfer rate: 100 Gbit/s
Jacket material: Low smoke zero halogen (LSZH)

Certificates

Compliance certificates: REACH, RoHS
Certification: UL

Operational conditions

Operating temperature (T-T): -40 - 85 °C
Storage temperature (T-T): -40 - 85 °C

Weight & dimensions

Cable diameter: 4 mm
Bending radius: 7.5 mm

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85447000
