Lindy 43410 KVM ilgintuvas

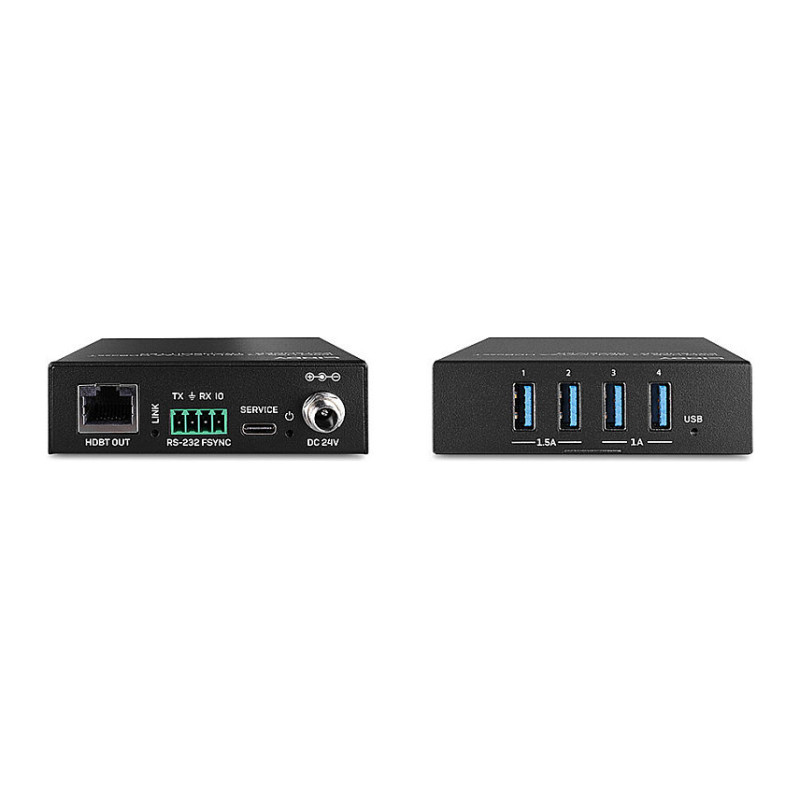

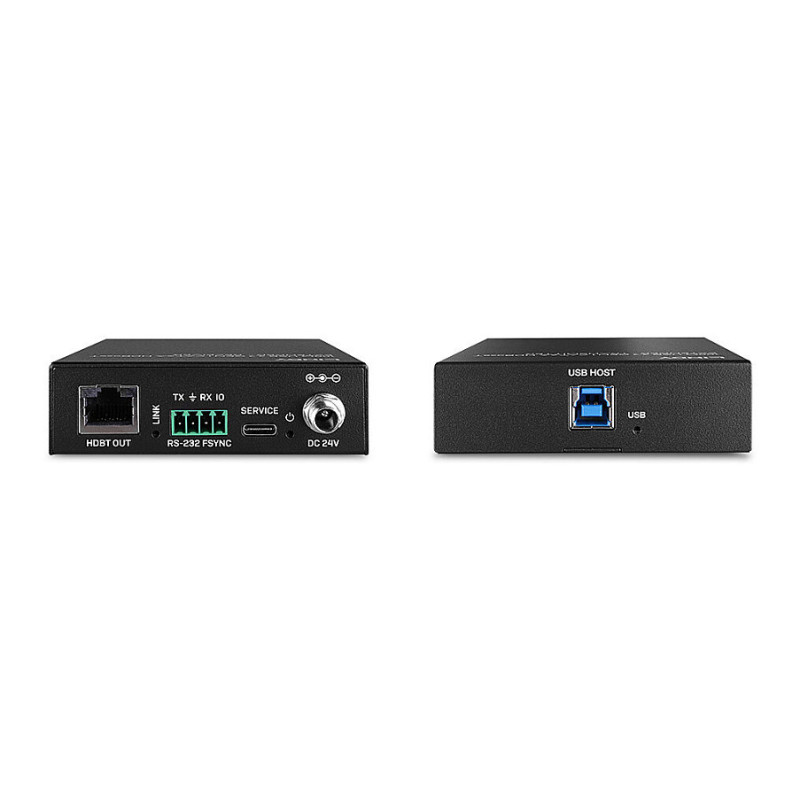

Lindy 100m USB 3.2 Gen 1 Cat.6A HDBaseT Extender. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 100 m. Transmitter local keyboard/mouse port type: USB. USB port type: USB Type-A/USB Type-B. AC input voltage: 24 V, Input current: 2 A. Transmitter width: 10 cm, Transmitter depth: 8.5 cm, Transmitter height: 3 cm

This Lindy USB 3.2 Gen 1 Cat.6A Extender can be used to extend the distance between USB peripheral devices and the host computer by up to 100m. Supports multiple USB signals, control, bulk, interrupt and isochronous data transfer.

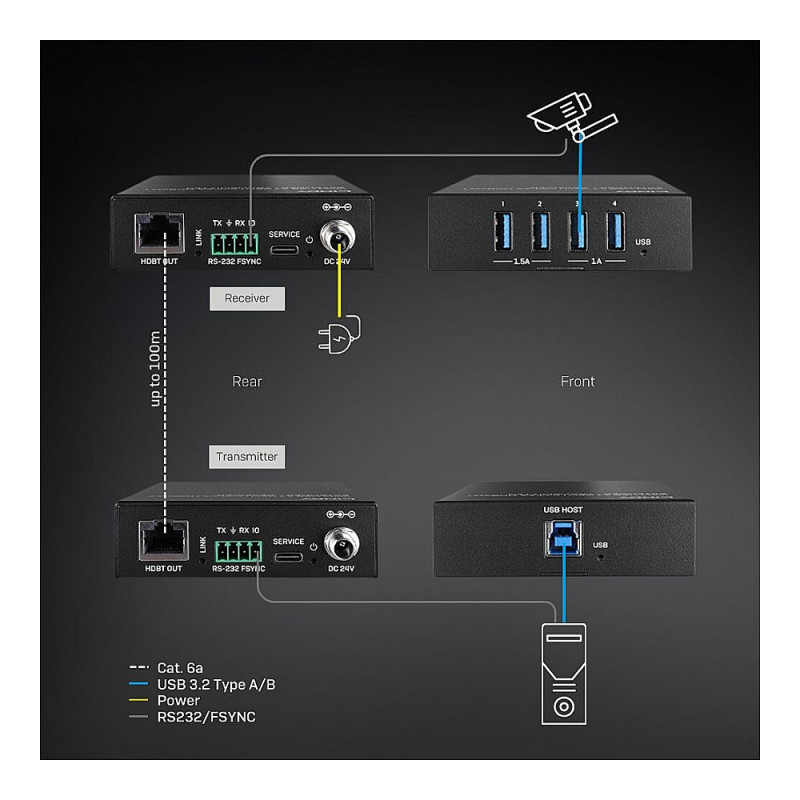

A standard Cat.6A or above network cable* (not included) is used to bridge the connection between the transmitter and the receiver unit at the maximum supported distance of 100m (328.08ft). It's also possible to reach up to 40m using a Cat.6 cable.

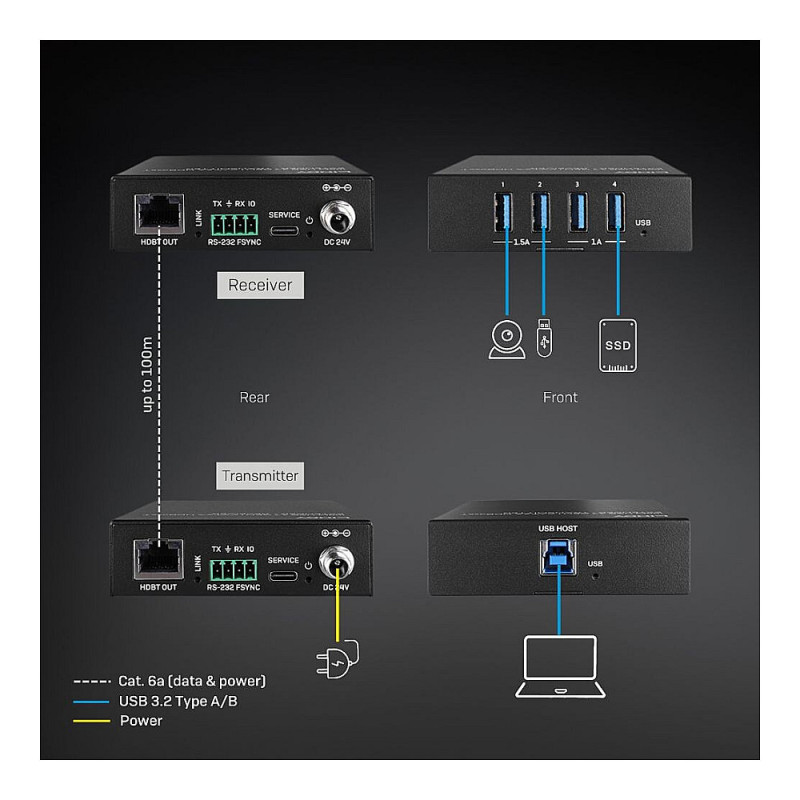

The Extender features Power over Cable, which requires a single power supply only to be connected either to the transmitter unit or to the receiver unit. The 4 Type A ports on the Receiver can provide 5V power as well to the connected devices; 2 ports support up to 1.5A each and 2 ports support up to 1A each.

Status LEDs help the user to check power, link between Transmitter and Receiver and if data transfer is running while additional RS232 and FSYNC GPIO pass-though ports allow sending bi-directional commands also for industrial cameras.

With robust metal housing and mounting brackets, this Extender is the ideal solution for professional applications and industrial environments.

In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.

*: To cover long distances close to the 100m limit, we recommend using HDBaseT-certified Cat.6A (or above) cables.

HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

HDBaseT Trade Mark and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.

Features

Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 100 m
Cable types supported: Cat6a
Product colour: Black
Material: Metal
Feature: Plug and Play
LED indicators: Yes

Transmitter

Transmitter local keyboard/mouse port type: USB
RJ-45 ports quantity (transmitter): 1
Transmitter USB Type-B ports quantity: 1

Receiver

RJ-45 ports quantity (receiver): 1
Receiver USB Type-A ports quantity: 4

Ports & interfaces

USB port type: USB Type-A/USB Type-B
RS-232 ports: 4

Power

AC input voltage: 24 V
Input current: 2 A
Feature: DC-in jack

Weight & dimensions

Transmitter width: 10 cm
Transmitter depth: 8.5 cm
Transmitter height: 3 cm
Transmitter weight: 500 g
Receiver width: 10 cm
Receiver depth: 8.5 cm
Receiver height: 3 cm
Receiver weight: 500 g

Packaging data

Package width: 235 mm
Package depth: 150 mm
Package height: 80 mm
Package weight: 900 g

Packaging content

Feature: AC adapter included
Cables included: USB Type-A
Feature: Manual
Feature: Mounting bracket(s) included
Included power plug types: AU, EU, UK, US
Feature: Screws included

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%

Other features

Warranty period: 2 year(s)
Bandwidth: 5 Gbit/s
Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
