„Lindy 42681“ tinklo plėtinys

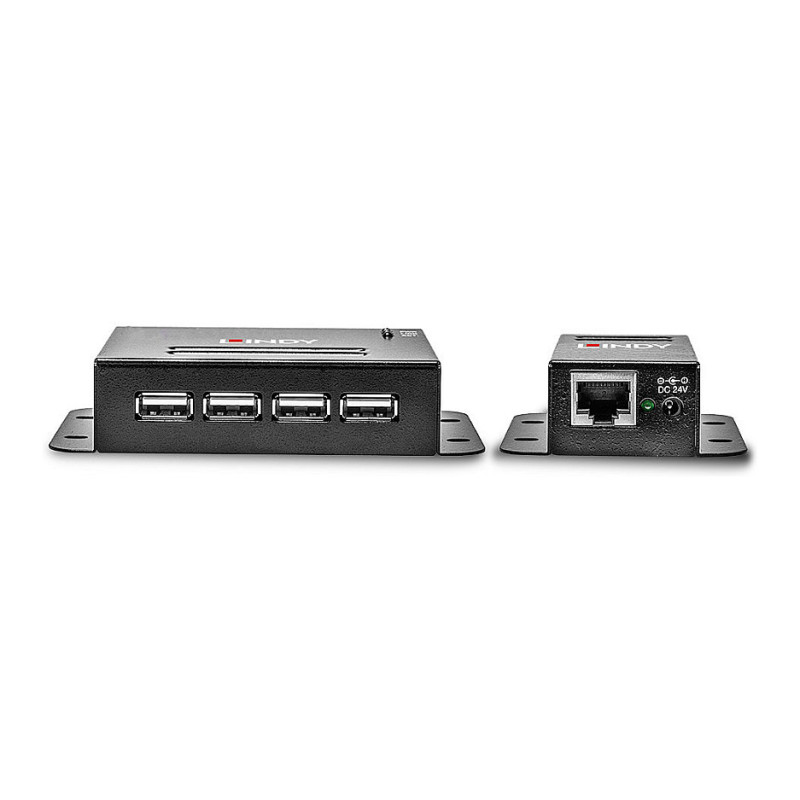

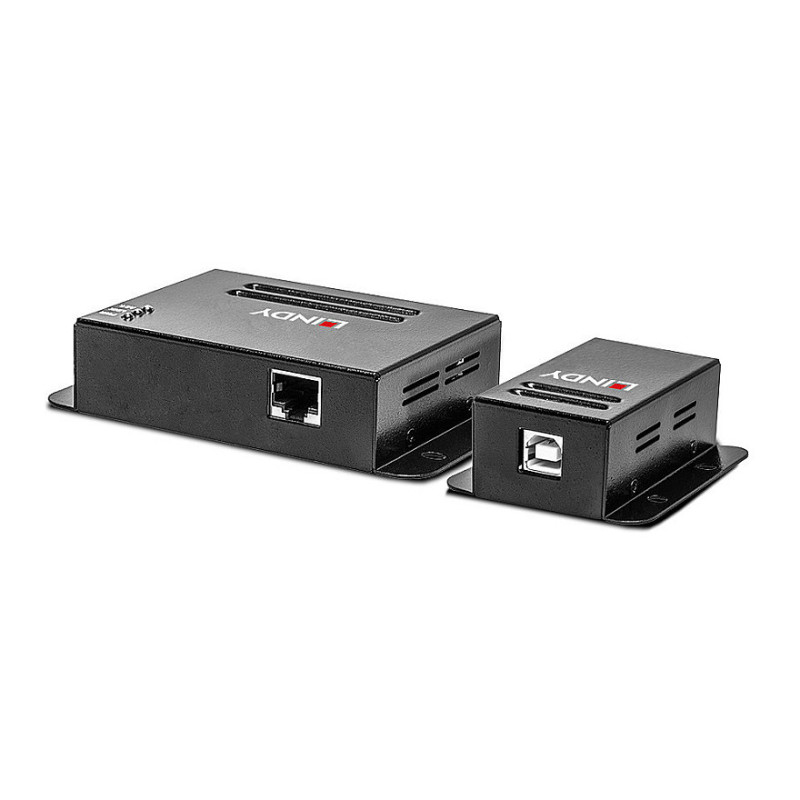

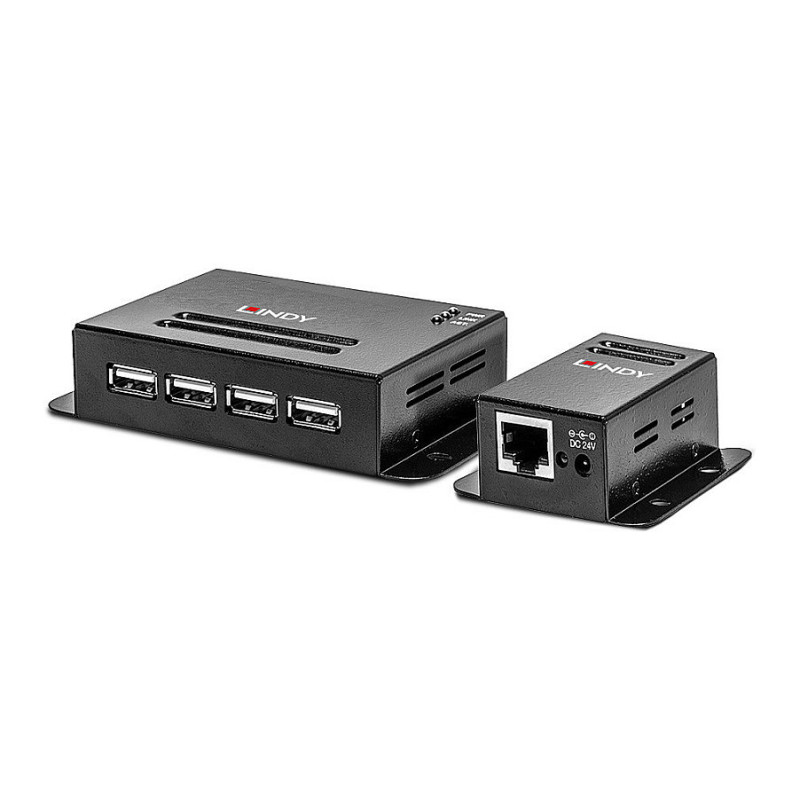

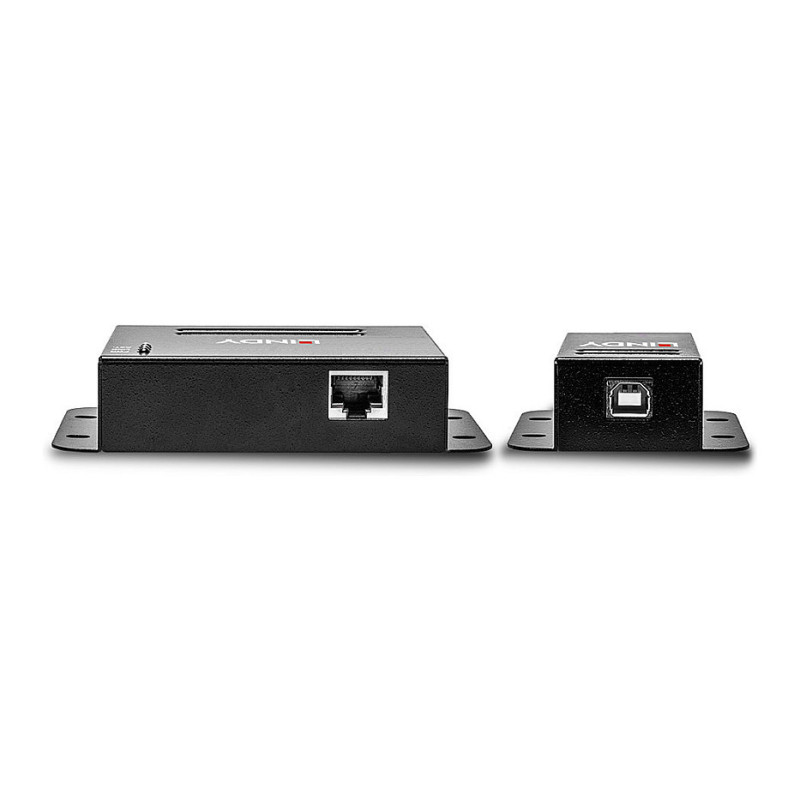

Lindy 50m 4 Port USB 2.0 Cat.6 Extender. Type: Network transmitter & receiver, Maximum transfer distance: 50 m, Data transfer rate: 480 Mbit/s. Contact material: Phosphor bronze, Connector contacts plating: Gold, Connector material: Gold. Product colour: Black, Housing material: Metal, Certification: CE, UKCA, FCC, RoHS, REACH. Output voltage: 24 V, Output current: 0.5 A, Power note: 3.5/1.35mm DC. Weight: 415 g, Transmitter width: 6 cm, Transmitter depth: 6.7 cm

This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between four USB peripheral devices and the host computer by up to 50m.

A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.

The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.

Performance

Type: Network transmitter & receiver
Maximum transfer distance: 50 m
Data transfer rate: 480 Mbit/s
Cable types supported: Cat5, Cat5e, Cat6
Chipset (transmitter): NS1021
Feature: Plug and Play

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
RJ-45 ports quantity (transmitter): 1
RJ-45 ports quantity (receiver): 1
USB 2.0 ports quantity: 5
Feature: DC-in jack
Contact material: Phosphor bronze
Connector contacts plating: Gold
Connector material: Gold

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
Certification: CE, UKCA, FCC, RoHS, REACH

Power

Feature: External power adapter
Output voltage: 24 V
Output current: 0.5 A
Feature: Power over Ethernet (PoE)
Power note: 3.5/1.35mm DC
Included power plug types: AU, EU, UK, US

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%

Weight & dimensions

Weight: 415 g
Transmitter width: 6 cm
Transmitter depth: 6.7 cm
Transmitter height: 2.3 cm
Receiver width: 11 cm
Receiver depth: 6.4 cm
Receiver height: 2.3 cm

Packaging content

Cables included: USB Type-A to USB Type-B
Feature: Manual

Packaging data

Package type: Box
Package width: 215 mm
Package depth: 155 mm
Package height: 50 mm
Package volume: 600 cm³

Logistics data

Harmonized System (HS) code: 85176990
