Lindy 42321 KVM komutatorius

Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Grey, Housing material: Metal. Power source: USB, Input voltage: 7.5 V, USB Power Delivery up to: 100 W. Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

The Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch is a compact solution for providing access and control over two Type C equipped devices with from a console with keyboard, mouse and two displays. It's an Ideal solution for flexible, plug and play workstations, allowing users to control multiple laptops, or a single laptop and another Type C device such as a mobile phone or tablets with Type C DisplayPort Alt Mode interface.

Support for Ultra HD resolutions up to 4K30Hz connecting both outputs, and 4K60Hz connecting one to ensure optimum image quality, perfect for high fidelity graphics in gaming setups, video editing or dual system control workstations. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts, and a much wider colour gamut. MST and SST functions allow the connection of two displays with extended desktop or in mirror mode while additional USB peripherals can be connected via the 2 ports USB 2.0.

Connecting an additional Type C power supply (optional, not included) ensures host device on port 2 can be powered and charged through the 100W Type C Power Delivery 3.0 input port. Perfect when mains power outlets are in short supply, and improves cable management for minimalist installations.

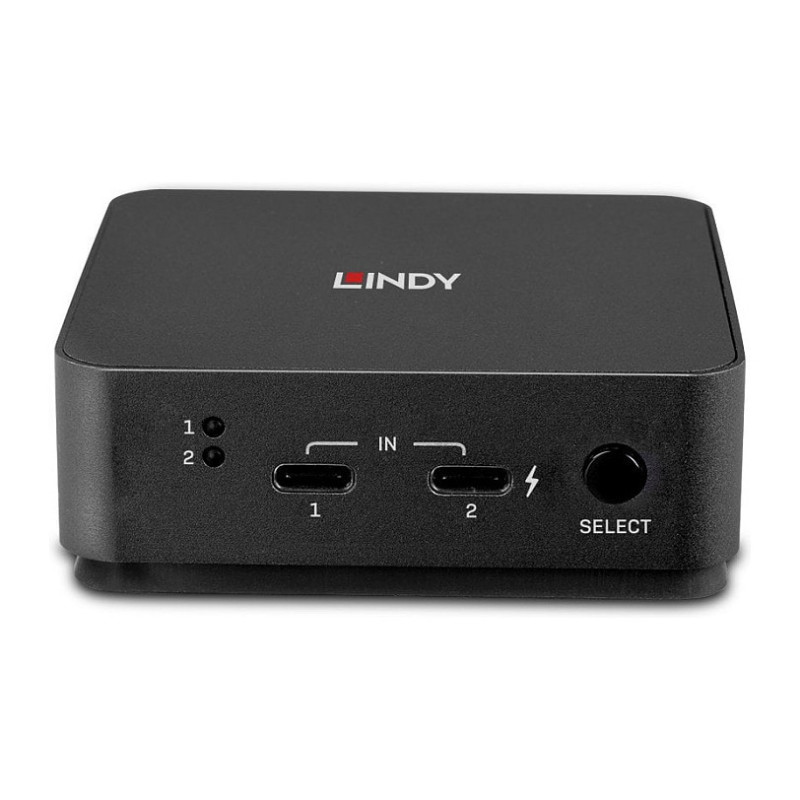

This device switches automatically when only one active source is connected, while when multiple devices are connected, switching is also possible by pushing the select button on the front panel for simple and reliable control, great for both professional and first-time users.

Please Note: Type C sources must support DisplayPort Alternate mode for video output, smartphones and tablets can only display a mirror image. Fast Role Swap feature is not supported.

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 2
HDMI version: 2.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Console ports: USB C
USB 2.0 Type-A hub ports quantity: 2
USB connector type: USB Type-A, USB Type-C

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Feature: Automatic switching
Feature: HDCP
HDCP version: 2.2

Design

Product colour: Grey
Housing material: Metal
LED indicators: Yes
Feature: Push button

Power

Power source: USB
Input voltage: 7.5 V
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W

Sustainability

Feature: Sustainability compliance
Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

Operational conditions

Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -15 - 60 °C
Operating relative humidity (H-H): 5 - 85%
Storage relative humidity (H-H): 5 - 85%

Weight & dimensions

Width: 78 mm
Depth: 78 mm
Height: 26.8 mm
Weight: 230 g

Packaging data

Package width: 183 mm
Package depth: 53 mm
Package height: 138 mm
Package weight: 330 g
Package type: Box

Packaging content

Cables included: USB Type-C
Feature: Manual
