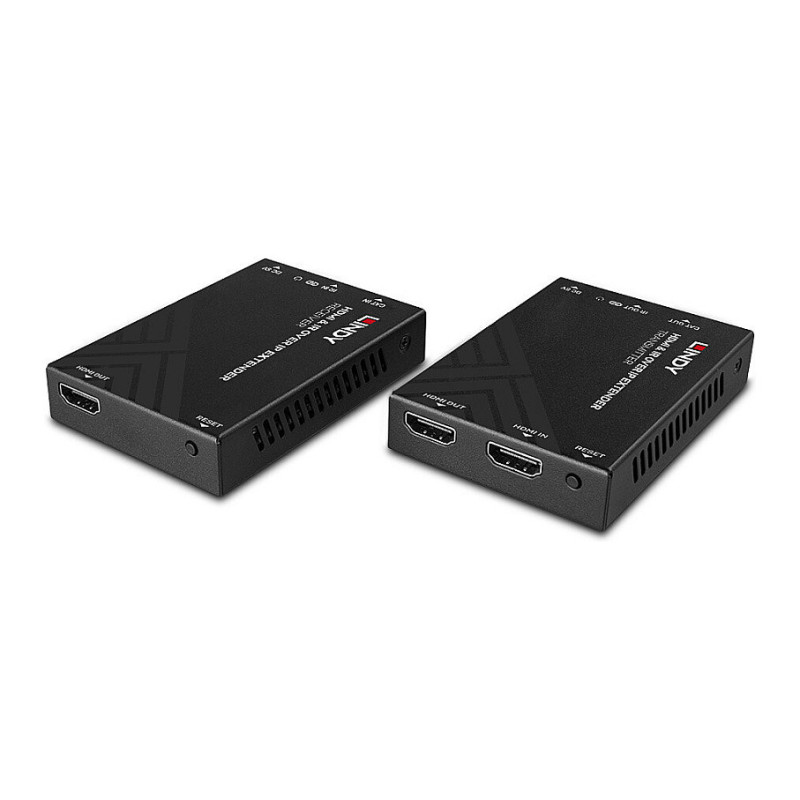

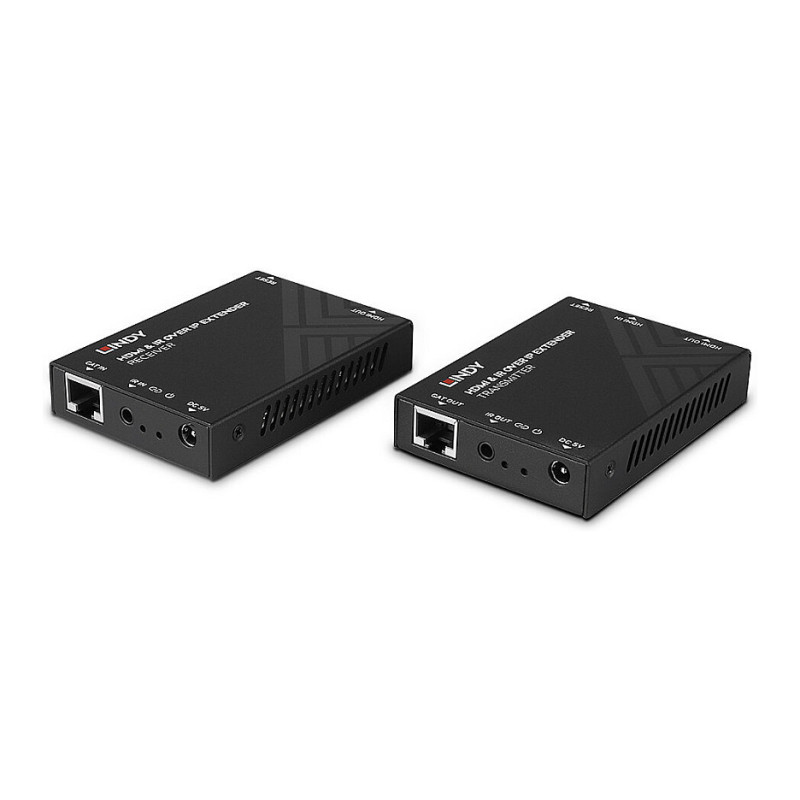

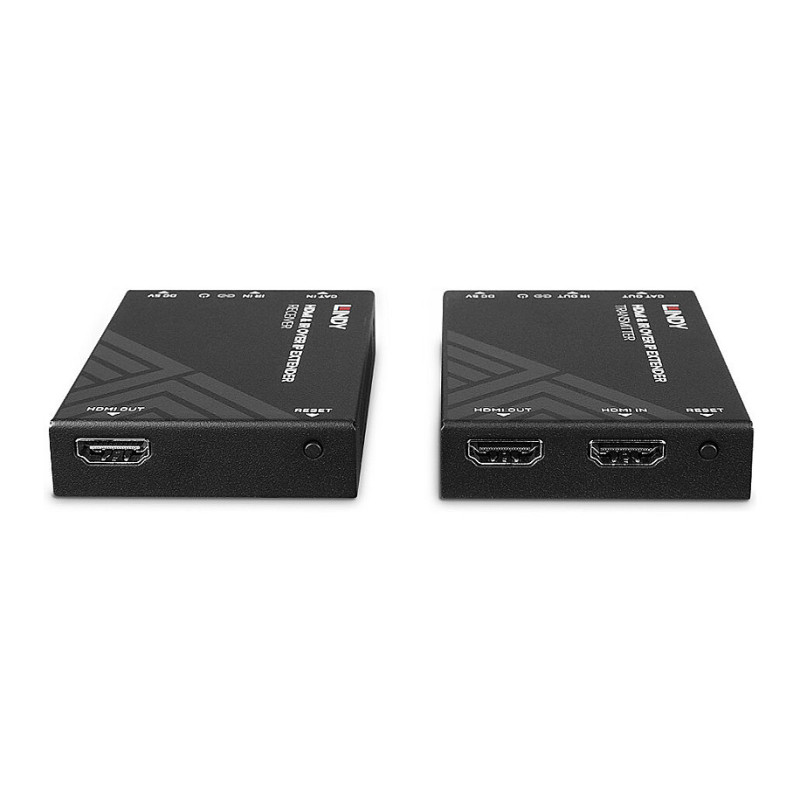

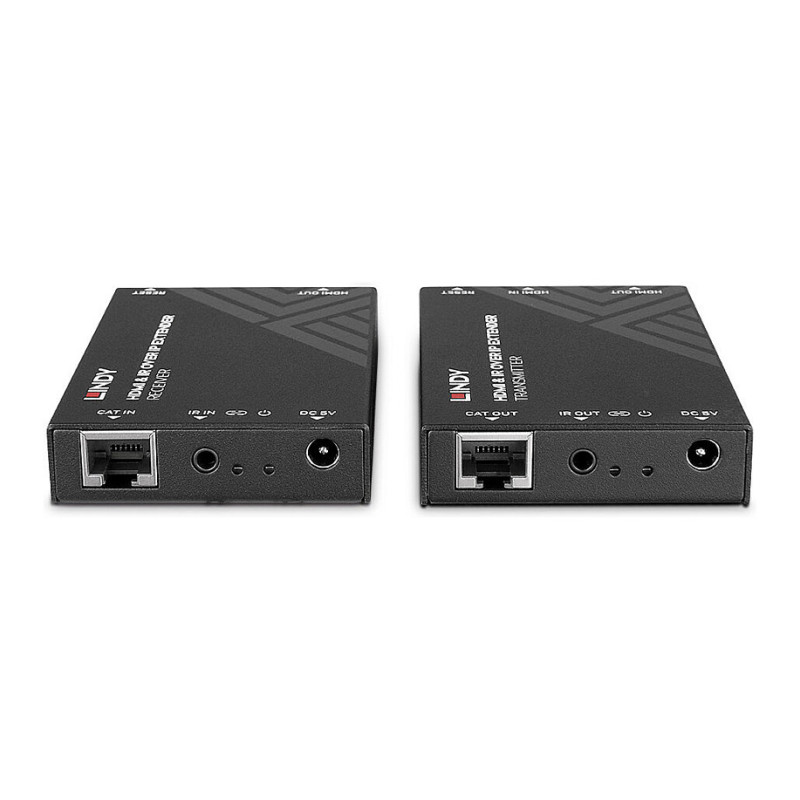

Lindy 38398 AV ilgintuvas

Lindy HDMI and IR over IP Extender. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired. Operating voltage (transmitter): 5 V, Output current: 1 A, Operating voltage (receiver): 5 V. Receiver dimensions (WxDxH): 88 x 61.2 x 16.5 mm, Receiver weight: 530 g, Transmitter dimensions (WxDxH): 88 x 61.2 x 16.5 mm. Quantity per pack: 1 pc(s), Package width: 220 mm, Package depth: 130 mm

IP extenders provide reliable extension of HDMI signals on a network connection, allowing for point to point and mixed configurations when combined with network equipment such as switches. Utilising IP connectivity ensures a low cost, scalable extension solution that can be easily setup for a variety of small or larger scale scenarios.

The Lindy HDMI and IR over IP extender is a complete, low cost solution for extending HDMI signals across long distances via a local network setup. As a point to point connection, the extender supports distances up to 150m using Cat.6 cable, or when combined with a network switch can be expanded for much larger distribution systems with up to 3 layers of network equipment. Adding additional receivers (38399) provides additional flexibility to the setup to distribute content into various locations or displays at distance, great for use in retail, connected office installations or educational setups.

Supporting resolutions up to Full HD 1920x1080@60Hz 4:4:4 8bit, this extender provides high quality content, good for eye catching digital signage, residential installations or AV distribution in hospitality. HDMI loop out port on the transmitter allows the user to connect a local display while IR extension also provide simple control via an included IR emitter and receiver cable using an IR remote.

Please Note: Use a dedicated network specially for larger installations. The HDMI over IP Extender distributes in full 1080p resolution using H.265 video compression.

Features

Type: AV transmitter & receiver
Maximum resolution: 1920 x 1080 pixels
Cable types supported: Cat5e, Cat6
Maximum transfer distance: 150 m
Chipset: SSC337DE - SSD203D
Maximum refresh rate: 60 Hz
Infrared (IR) frequency range: 20 - 60 kHz
Supported video modes: 1080p
Bandwidth: 6.75 Gbit/s
Video compression formats: H.265
Feature: HDCP
Material: Metal
HDCP version: 1.4
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 2
Video in: 1
Video out: 2
Remote (IR) input: 1
Remote (IR) output: 1
Feature: DC-in jack

Power

Operating voltage (transmitter): 5 V
Output current: 1 A
Operating voltage (receiver): 5 V

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Receiver dimensions (WxDxH): 88 x 61.2 x 16.5 mm
Receiver weight: 530 g
Transmitter dimensions (WxDxH): 88 x 61.2 x 16.5 mm
Transmitter weight: 530 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 220 mm
Package depth: 130 mm
Package height: 70 mm
Package weight: 730 g

Packaging content

Feature: Manual

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
