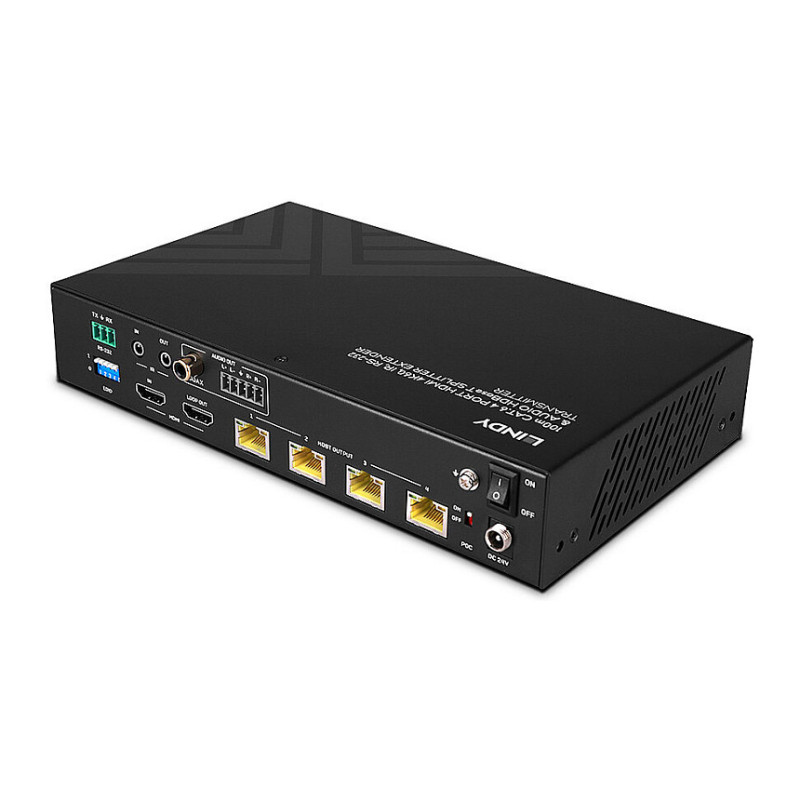

Lindy 38355 vaizdo skirstytuvas

Lindy 100m Cat.6 4 Port HDMI 4K60 HDBT Splitter Extender. Video port type: HDMI, Video out: HDMI, Headphone connectivity: 3.5 mm. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Metal. Cable types supported: Cat6. Width: 220 mm, Depth: 130 mm, Height: 40 mm. Quantity per pack: 1 pc(s), Package width: 285 mm, Package depth: 274 mm

The Lindy 100m Cat.6 4 Port HDMI 4K60 HDBaseT Splitter Extender is an high end solution to Extend HDMI signals to 4 HDBaseT receivers (not included) using Cat.6 or above cables up to 100m.Compatible with most HDBaseT receivers on the market like N. 38342 and 38214.

Supporting resolutions up to 4K60Hz including HDR and 1080p, the Splitter Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.

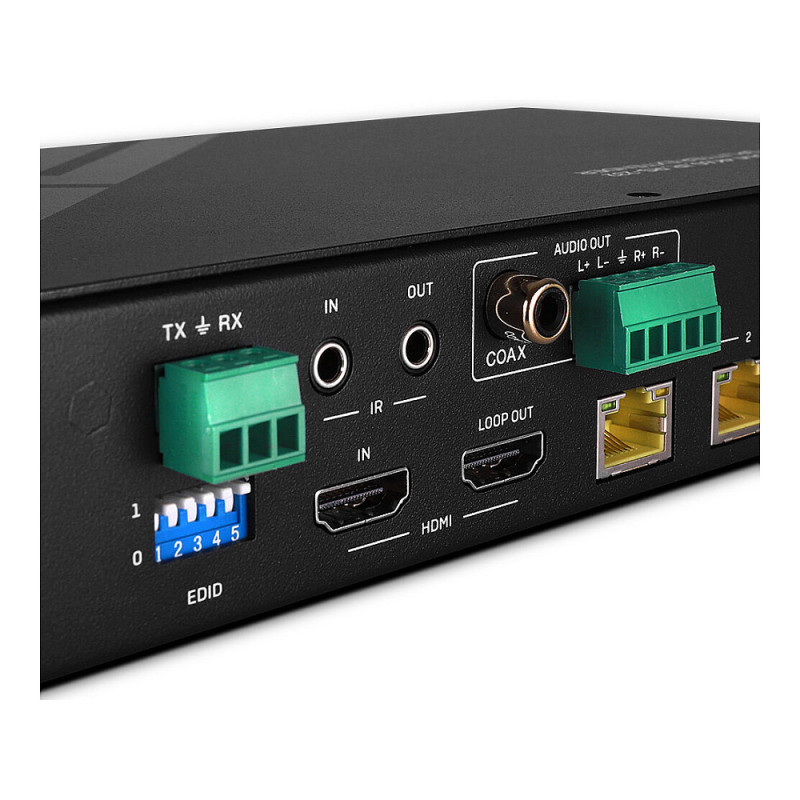

It supports several signals and features such asdigital and analog de-embedded audio, IR and RS-232 control or pass-through signals. An advanced EDID management allow the userto select different EDID modes while the integrated HDMI loop-out port enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone.

PoC (Power over Cable) functionality can be switched on and off to provide additional flexibility; this allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver with this function, meaning only a single power supply is required at the transmitter unit.

Please Note:Receviers are not included, ensure to use HDBaseT receivers that support all the required features.

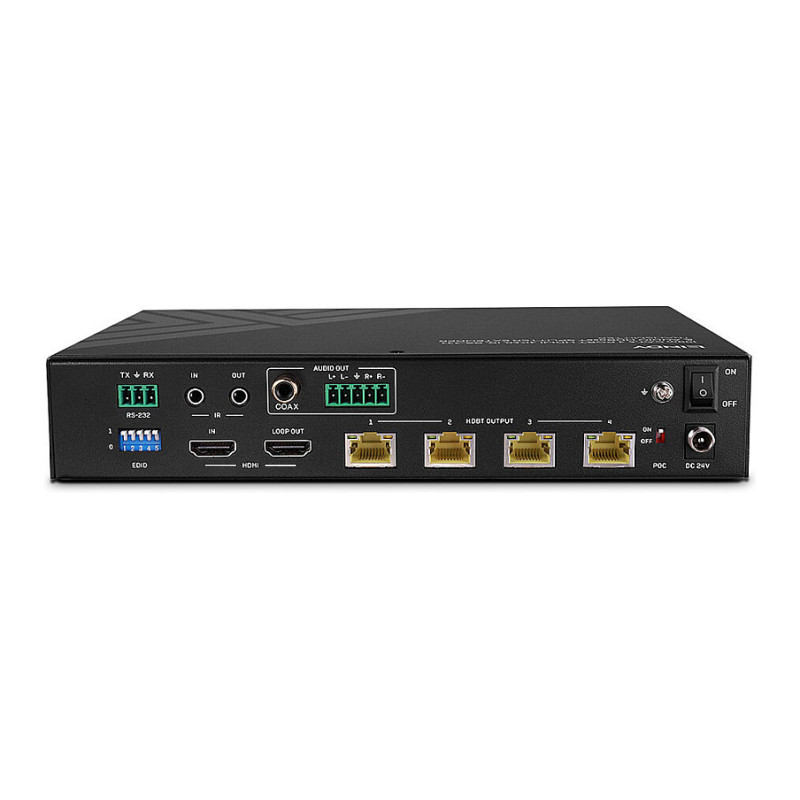

Ports & interfaces

Video port type: HDMI
Video out: HDMI
HDMI version: 2.0
Ethernet LAN (RJ-45) ports: 4
Video ports quantity: 2
Audio ports quantity: 8
Feature: Headphone out
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Features

Product colour: Black
Housing material: Metal
Maximum resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Maximum operating distance: 100 m
Colour depth: 8 bit
Maximum refresh rate: 60 Hz
Data transfer rate: 18 Gbit/s

Network

Feature: Ethernet LAN
Cable types supported: Cat6

Weight & dimensions

Width: 220 mm
Depth: 130 mm
Height: 40 mm
Weight: 1.4 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 285 mm
Package depth: 274 mm
Package height: 100 mm
Package weight: 1.89 kg
Package type: Box

Packaging content

Feature: Manual
Cables included: IR, Power
Feature: AC adapter included

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%
