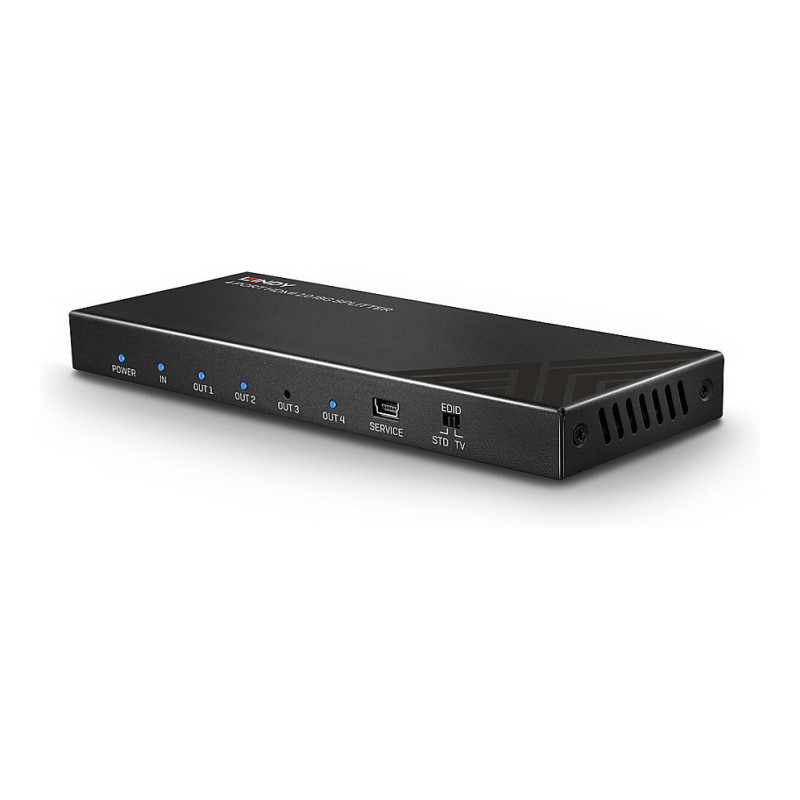

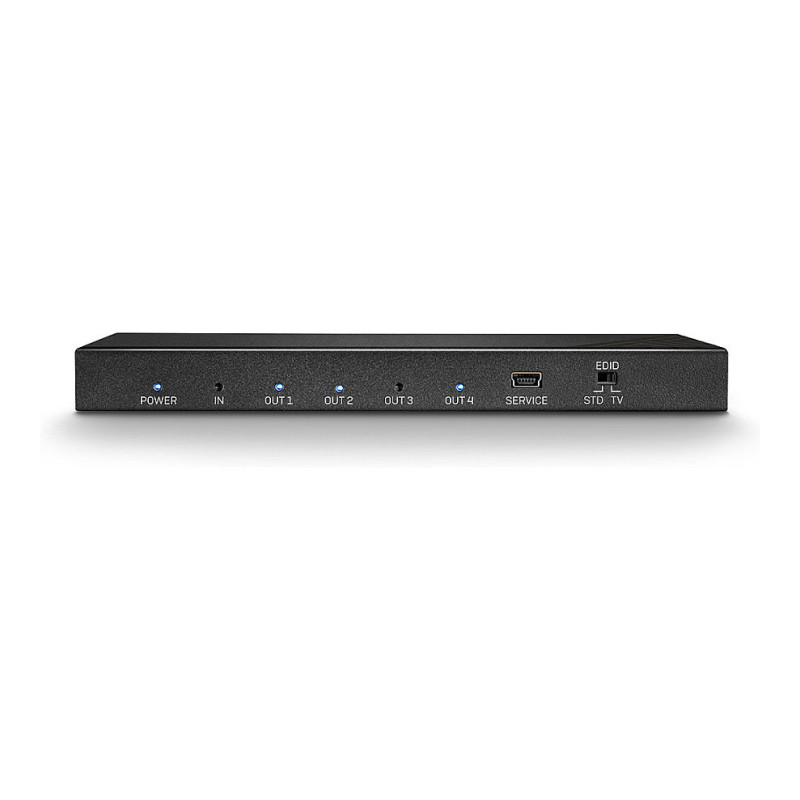

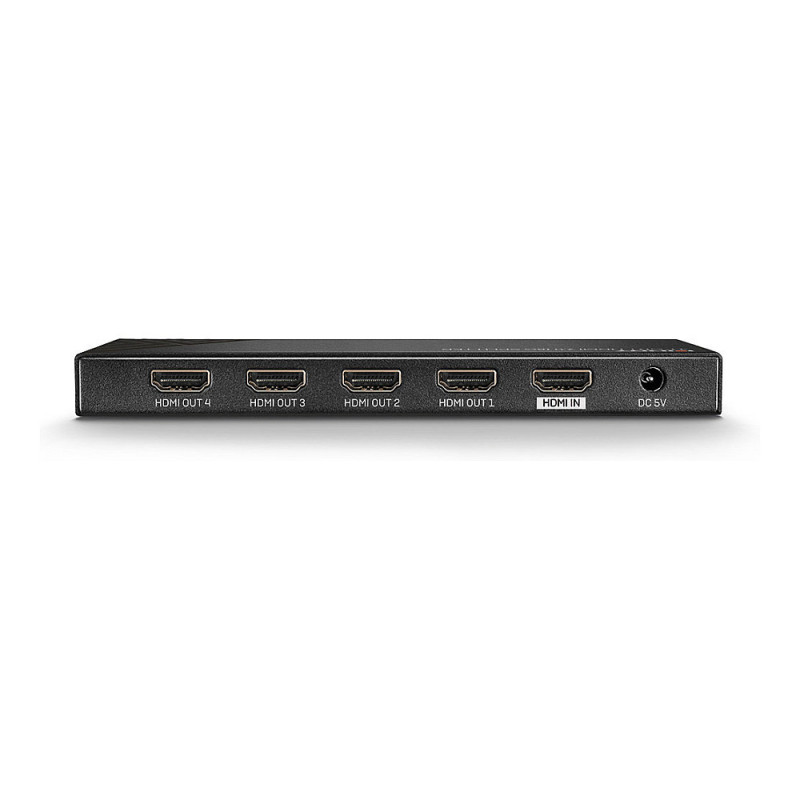

Lindy 38236 vaizdo skirstytuvas

Lindy 4 Port HDMI 18G Splitter. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 5 V, Input current: 1 A. Width: 163 mm, Depth: 63 mm, Height: 16 mm. Package width: 248 mm, Package depth: 55 mm, Package height: 183 mm

The Lindy 4 Port HDMI 2.0 18G Splitter is a compact, high quality solution for distributing HDMI 2.0 18G signals across multiple displays from one source device. With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching digital signage in retail scenarios, showing high quality video in different rooms in medical facilities or ensuring audiences do not miss any of the action in dual display sports bars. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour.

HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players, while a smart EDID management switch on the unit provides maximum compatibility with the display. The splitters durable, compact design also ensures the unit can be installed discreetly, ensuring there is no distraction from the content on screen.

Ports & interfaces

Video port type: HDMI
Video out: 4x HDMI
HDMI version: 2.0
Video ports quantity: 5
Feature: DC-in jack

Features

Product colour: Black
Housing material: Metal
Maximum resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Maximum refresh rate: 60 Hz
Feature: HDCP
LED indicators: Yes
Certification: CE, FCC, REACH, California Proposition 65

Power

AC input voltage: 5 V
Input current: 1 A

Weight & dimensions

Width: 163 mm
Depth: 63 mm
Height: 16 mm
Weight: 373 g

Packaging data

Package width: 248 mm
Package depth: 55 mm
Package height: 183 mm
Package weight: 526 g
Package type: Box

Packaging content

Feature: Manual

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990
