Lindy 38084 matrix switcher

Lindy 4x2 HDMI 4K60 Matrix. Product type: AV matrix switcher, Maximum resolution: 3840 x 2160 pixels, Bandwidth: 18 Gbit/s. Housing colour: Black, Housing material: Metal. Output current: 1000 mA, Output voltage: 5 V. Width: 125 mm, Depth: 95 mm, Height: 25 mm

Switches between 4 HDMI source devices and 2 HDMI displays connected simultaneously
Supports resolutions up to 4K 60Hz, with additional support for HDR
Extract audio from HDMI to Toslink (Optical) and 3.5mm audio
Supports ARC as well as a Downscaler-Function via HDMI Out B
2 year warranty

Please note that two versions of this item exist with different connectors.

Please refer to the manuals to find out which version you have.

The Lindy 4x2 HDMI 4K60 Matrix Switch is a high performance solution for distributing content from multiple source devices to two displays.

Supporting HDMI 2.0 18G signals, this matrix allows for the transmission of clear 4K Ultra HD 60Hz resolutions, while additional support for High Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for digital signage displays in retail or hospitality or creating engaging educational setups. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players.

As well as HDMI audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen.

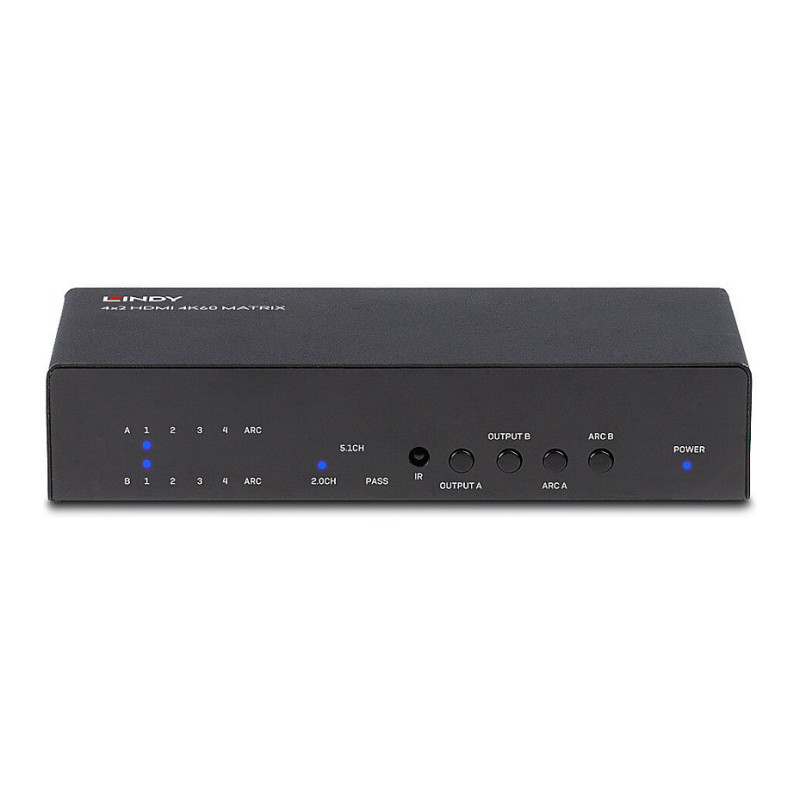

This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.

Features

Product type: AV matrix switcher
Maximum resolution: 3840 x 2160 pixels
Bandwidth: 18 Gbit/s
Feature: HDCP
HDCP version: 2.2
Feature: Extended display identification data (EDID)

Design

Housing colour: Black
Housing material: Metal

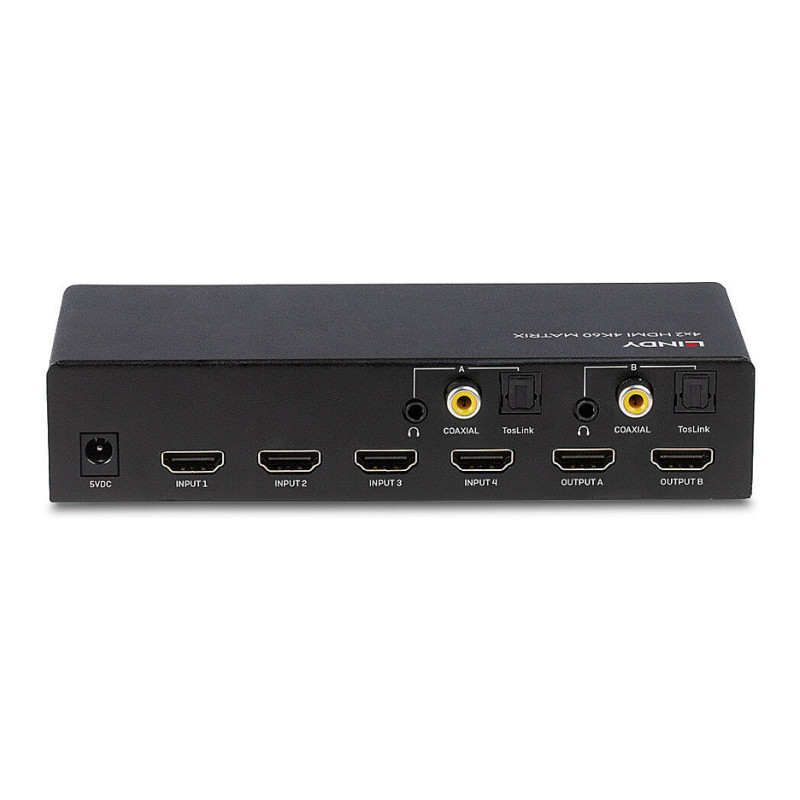

Ports & interfaces

HDMI input ports quantity: 4
HDMI output ports quantity: 2
Digital audio optical out: 1
USB ports quantity: 1
Audio (L/R) out: 1
Feature: DC-in jack

Power

Output current: 1000 mA
Output voltage: 5 V

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%

Logistics data

Harmonized System (HS) code: 85299097

Weight & dimensions

Width: 125 mm
Depth: 95 mm
Height: 25 mm
Weight: 510 g
Package width: 220 mm
Package depth: 73 mm
Package height: 154 mm
Package weight: 636 g

Packaging content

Feature: Manual
Feature: Mounting brackets included
Feature: AC adapter included
