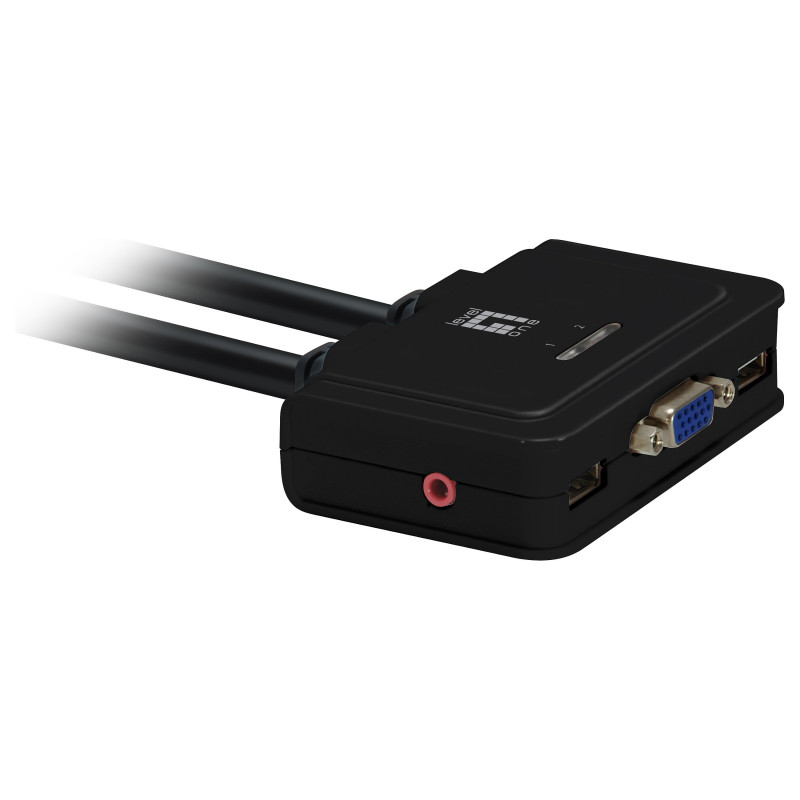

LevelOne KVM-0223 KVM jungiklis

LevelOne 2-Port USB VGA Cable KVM Switch, audio support. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Maximum resolution: 2048 x 1536 pixels. Product colour: Black, Cable length: 0.9 m, Certification: CE, FCC. Windows operating systems supported: Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64,.... Compliance certificates: RoHS

The LevelOne KVM-0223 USB Cable KVM Switch offers users a high resolution VGA video interface and eliminates connection headaches with two sets of fixed USB KVM & Audio / Mic combo cables. A wired QuickSwitch! button further enhances the user's experience by switching from one computer to another with just the touch of a button.

The LevelOne KVM-0223 also supports switching client software with both Windows and Mac OS supported. LevelOne freeware can be installed on networked computers for intuitive menu-driven switching action. A desktop icon displays which port is currently active, giving users an easy interface with the devices, an LED display provides easy status monitoring and keyboard hotkeys offer even more convenience with a third way of switching between devices.

The two USB 2.0 keyboard and mouse ports are transparent USB hub ports that feature full driver support for advanced keyboard/mouse action. In addition, they can also be connected to other high-speed devices such as USB disk storage.

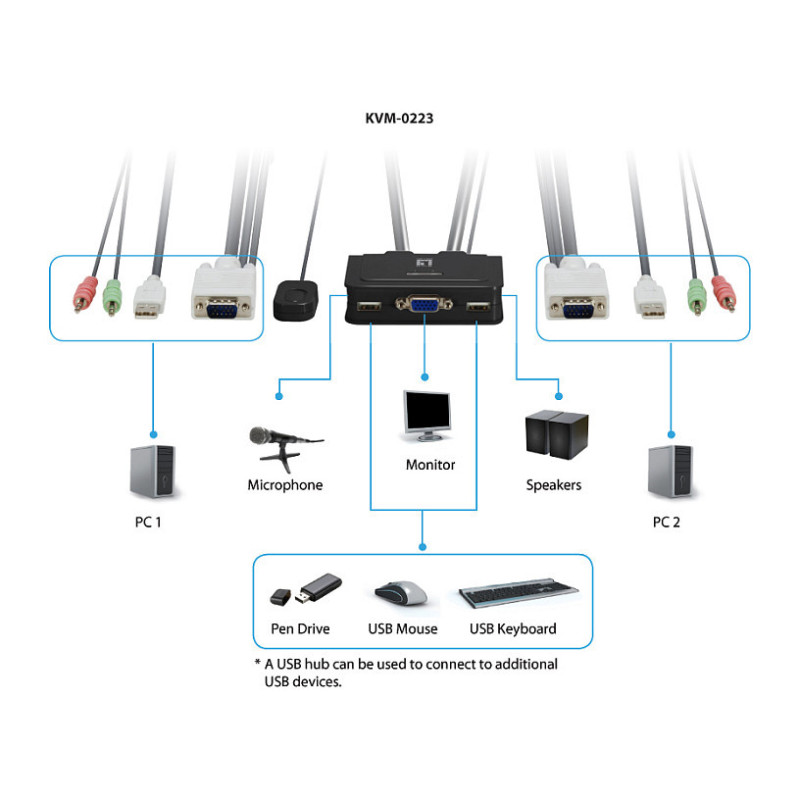

- Control and manage 2 computers by using a single USB keyboard, mouse and monitor
- 1 x wired QuickSwitch! Button for instant switching

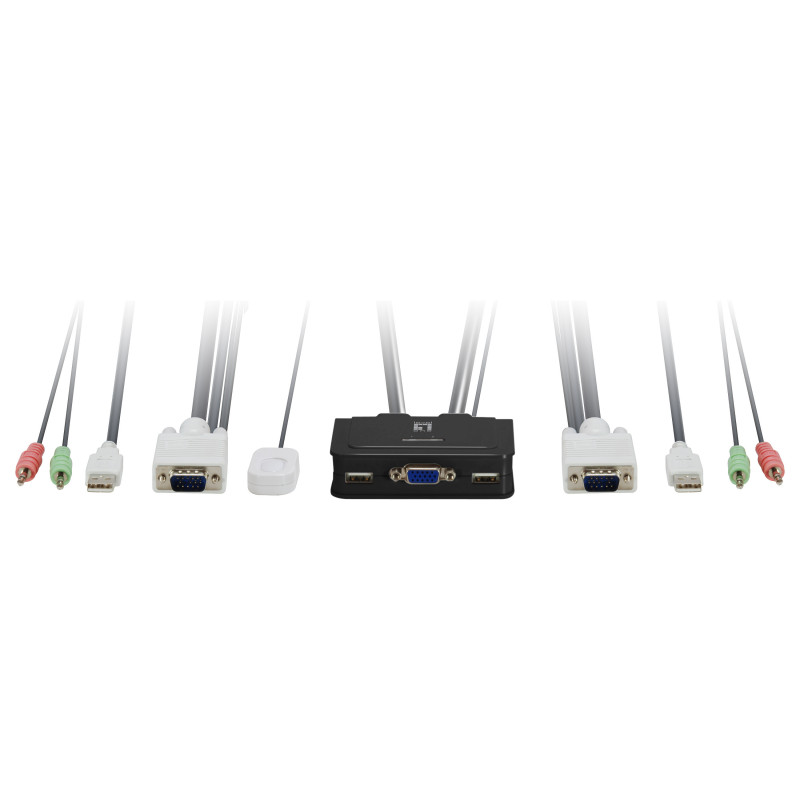

- 2 x fixed VGA USB KVM audio/mic combo cables
- Windows and Mac switching software support
- USB 2.0 hub ports for keyboard, mouse or other high-speed USB devices
- VGA analog video up to 2048 x 1536 pixels
- Independent/simultaneous switching of PC and audio/mic channel
- User-definable hotkeys and universal hotkey for computer switching
- LED display for easy status monitoring

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: VGA
Console ports: 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
USB 2.0 ports quantity: 2
Feature: Audio connections
Headphone outputs: 1
Number of microphone inputs: 1

Performance

Maximum resolution: 2048 x 1536 pixels

Design

Product colour: Black
Cable length: 0.9 m
LED indicators: Yes
Certification: CE, FCC

Power

Feature: USB powered

System requirements

Linux operating systems supported: Yes
Mac operating systems supported: Yes

Sustainability

Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 58 mm
Depth: 87 mm
Height: 24 mm
Weight: 375 g

Packaging data

Package width: 160 mm
Package depth: 50 mm
Package height: 210 mm
Package weight: 80 g

Packaging content

Feature: Quick installation guide
Feature: Manual
Feature: Drivers included

Logistics data

Harmonized System (HS) code: 85176200
