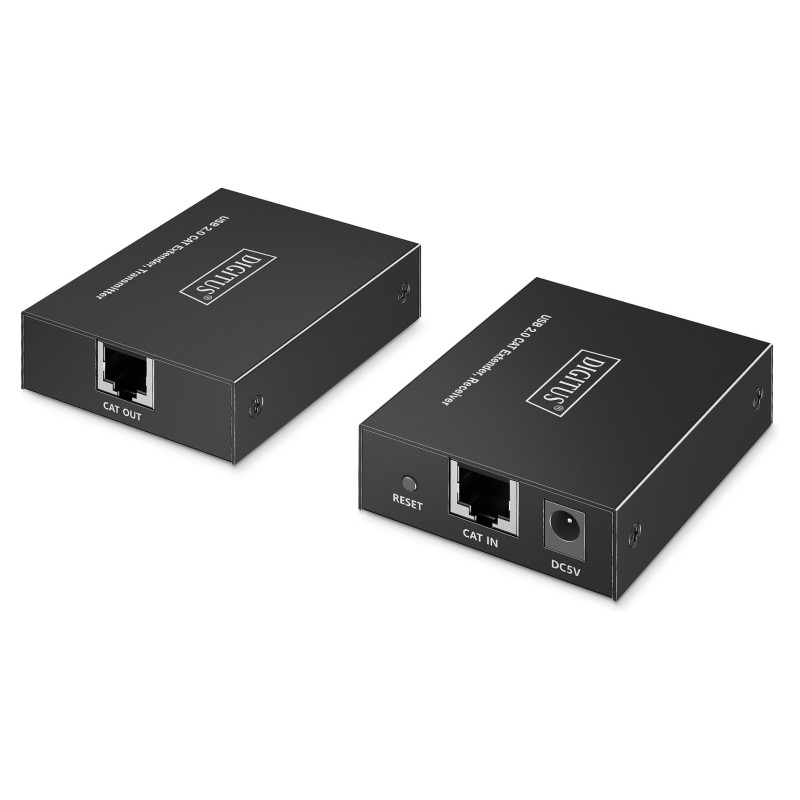

Konsolės ilgintuvas Digitus DA-73120

Digitus USB 2.0 CAT Extender, 4-Port USB-A, 150 m. Width: 60 mm, Depth: 76 mm, Height: 21 mm. Cables included: USB Type-A. Power source type: DC, Power consumption (max): 3.5 W, Power consumption (typical): 2 W

Overcome the technical limitations of USB cable lengths and reliably connect up to four USB devices over distances of up to 150 meters using a CAT 6 cable (or higher).

- USB extension up to 150 meters via CAT 6 or higher
- Cascading: Extension up to 300 meters (2 × 150 meters) using a network switch
- The transmitter is powered by the host PC—no additional power supply is required
- Multifunctional USB hub: Supports the connection of up to four USB devices at the same time
- USB 2.0: Supports transfer rates of up to 480 Mbps, ideal for a wide range of USB devices such as printers, cameras, keyboards, and scanners
- Reliable Protection: Built-in ESD protection (up to 8 kV) and surge protection for your devices
- Plug & Play: No software required. Just plug it in and start using it right away
- Durable and versatile: Thanks to its metal housing, it's ideal for demanding environments such as industrial settings or large offices

This USB extender provides a reliable solution for transmitting USB signals over distances of up to 150 meters using a CAT 6 (or higher) network cable (not included) without signal loss. It is ideal for use in large offices, conference rooms, surveillance systems, or industrial environments where longer USB connections are required. The USB 2.0 standard enables transfer rates of up to 480 Mbps. This ensures seamless connectivity for a wide variety of USB devices, such as cameras, printers, scanners, keyboards, mice, and USB flash drives. The extender offers maximum flexibility thanks to its four USB-A ports, allowing multiple devices to be used simultaneously—ideal for work environments with various peripherals. The plug-and-play design allows for easy installation without the need for additional drivers. In addition, the robust metal housing ensures durability and stability, even in demanding industrial environments. Say goodbye to the limitations of conventional USB cables—with this 150m USB 2.0 extender, you can place your USB devices exactly where you need them without having to move your computer.

Technical details

Type: Console transmitter & receiver
Data transfer rate: 1000 Mbit/s
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Maximum transfer distance: 150 m
Product colour: Black
I/O ports: 4x USB 2.0 A in1x USB 2.0 A Out
Housing material: Aluminium, Metal
LED indicators: Yes
Cable types supported: Cat6
Feature: Plug and Play

Ports & interfaces

USB 2.0 ports quantity: 5
USB 2.0 Type-A ports quantity: 5
RJ-45 ports quantity: 2
Feature: DC-in jack

Weight & dimensions

Width: 60 mm
Depth: 76 mm
Height: 21 mm
Transmitter weight: 123 g
Receiver weight: 128 g
Package width: 117 mm
Package depth: 150 mm
Package height: 77 mm
Package weight: 470 g

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Packaging content

Cables included: USB Type-A
Feature: Manual
Feature: Quick start guide

Power

Power source type: DC
Power consumption (max): 3.5 W
Power consumption (typical): 2 W
Input voltage: 5 V
Input current: 1 A
Output voltage: 5 V
Output current: 1 A
