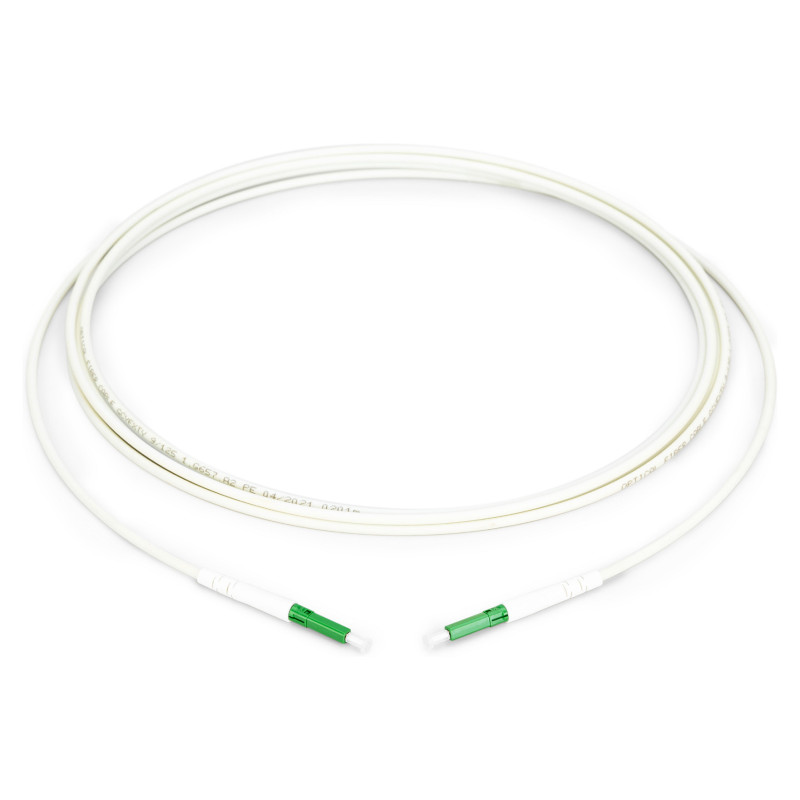

Digitus DK-3901LCA-10 InfiniBand / fibre optic cable

Digitus FTTH pre-assembled drop cable, blow-in, singlemode, 1 fiber, LC/APC, 10 m. Cable length: 10 m, Cable type: LC/APC, Fibre optic type: G.657.A2, Connector 1: LC, Connector 2: LC

The pre-assembled, blow-in cable is characterized by high flexibility, low friction and prefabricated connectors. It enables fast and reliable installation without splicing work on site. Ideally suited for FTTH applications.

- Pre-assembled with high-performance connectors - no splicing or on-site assembly required
- Bend-insensitive fiber ensures reliable performance even in tight installation areas with minimal signal loss
- Compact design enables air-assisted blow-in installation in microducts
- Ideal for FTTH network expansion and last-mile connections

The blow-in cable is a specialized fiber optic cable designed for efficient and fast installation using air pressure blow-in technology in microducts. This cable comes with factory pre-terminated polished connectors, eliminating the need for on-site splicing and significantly reducing installation time and potential points of failure. It enables fast and uninterrupted installation of fiber optic connections to homes and businesses. It ensures high-quality, fast and low-latency connections within complex network infrastructures. The cable offers a future-proof solution for modern fiber optic networks by optimally combining efficiency, reliability and scalability. By using pre-terminated, blow-in technology, installers and network operators can significantly reduce installation times while ensuring long-term stable performance in demanding broadband applications.

Features

Cable length: 10 m
Fibre optic type: G.657.A2
Cable shape: Round
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Cable type: LC/APC
Product colour: White
Fiber mode structure: Single-mode
Insertion loss: 0.3 dB
Return loss: 60 dB
Jacket material: Aramid

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions

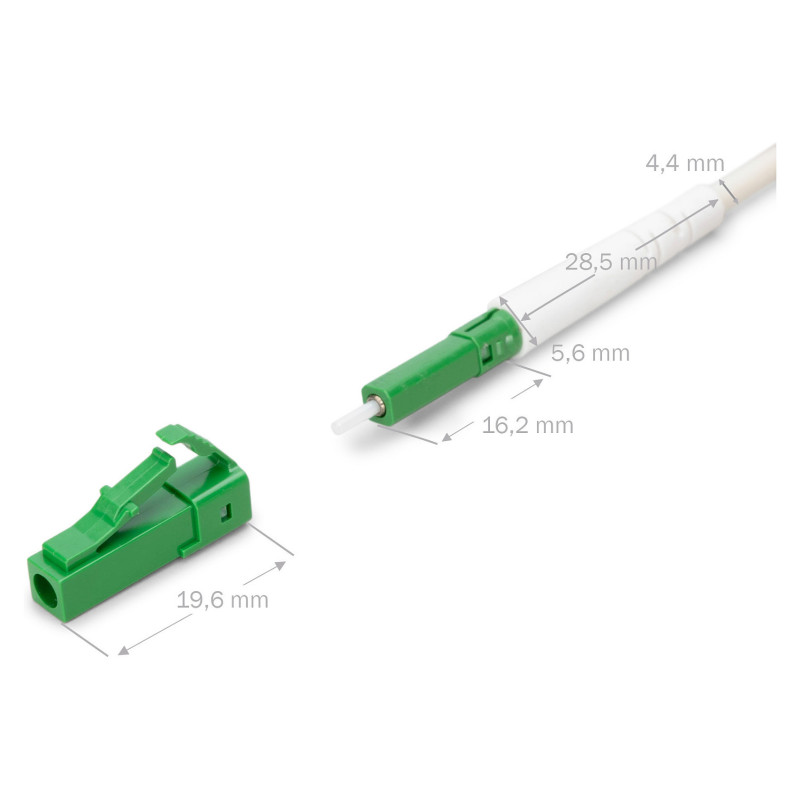

Cable diameter: 2.8 mm
Bending radius: 1 cm

Packaging data

Package width: 230 mm
Package depth: 340 mm
Package height: 24 mm
Package weight: 90 g

Packaging content

Quantity per pack: 1 pc(s)
