„Digitus DS-33170“ sąsajos plokštės / adapteris

Digitus M.2 NGFF / NVMe SSD PCI Express 3.0 (x4) Add-On Card. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCI 3.0. Product colour: Black, Country of origin: China. Data transfer rate (max): 6 Gbit/s. Width: 114 mm, Depth: 70 mm, Height: 20 mm. Cables included: SATA, Package weight: 145.5 g

Use M.2 NGFF/NVMe SSDs at PCIe x4 slots on the mainboard - B & M key

- NGFF/NVMe SSD M.2 adapter card for PCIe slots: x4/x8/x16
- Supports NVMe Key B/M M.2 SSD including 2230, 2242, 2260 & 2280
- Supports M-Key M.2 SSD, B-Key and B+M Key M.2 SSD
- Ultra-fast PCI express V3.0 data transfer at up to 6 Gbps / 32 GT/s
- Supports PCIe 3.0 / SATA 3.0
- Low-profile slot bracket included

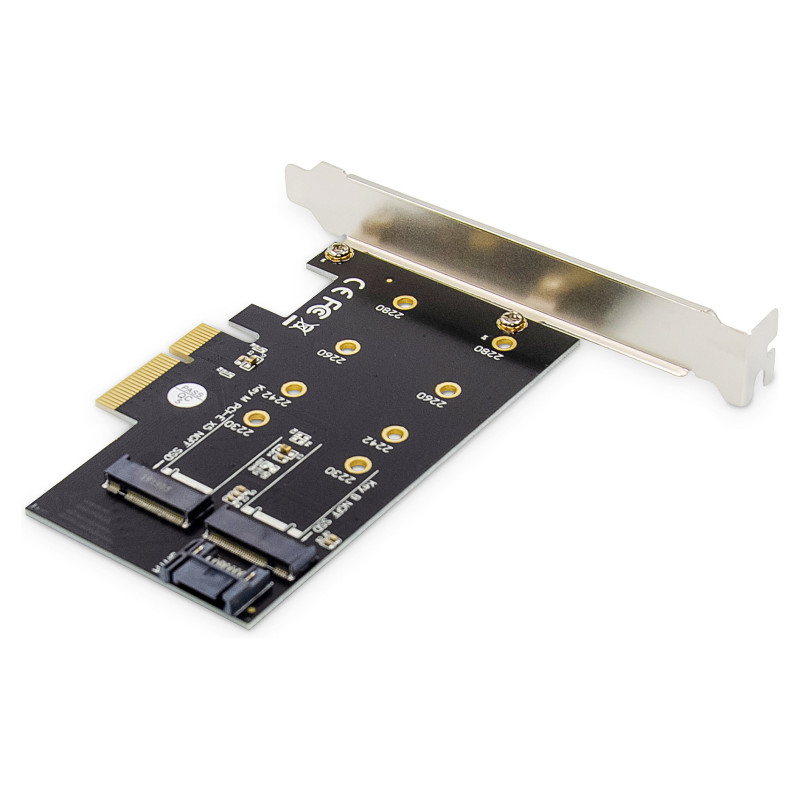

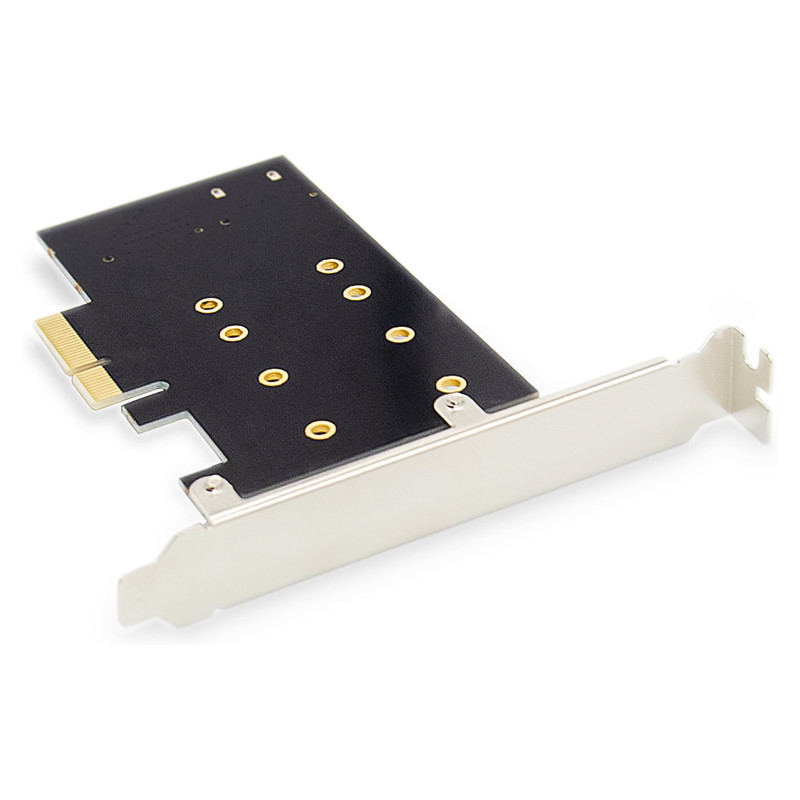

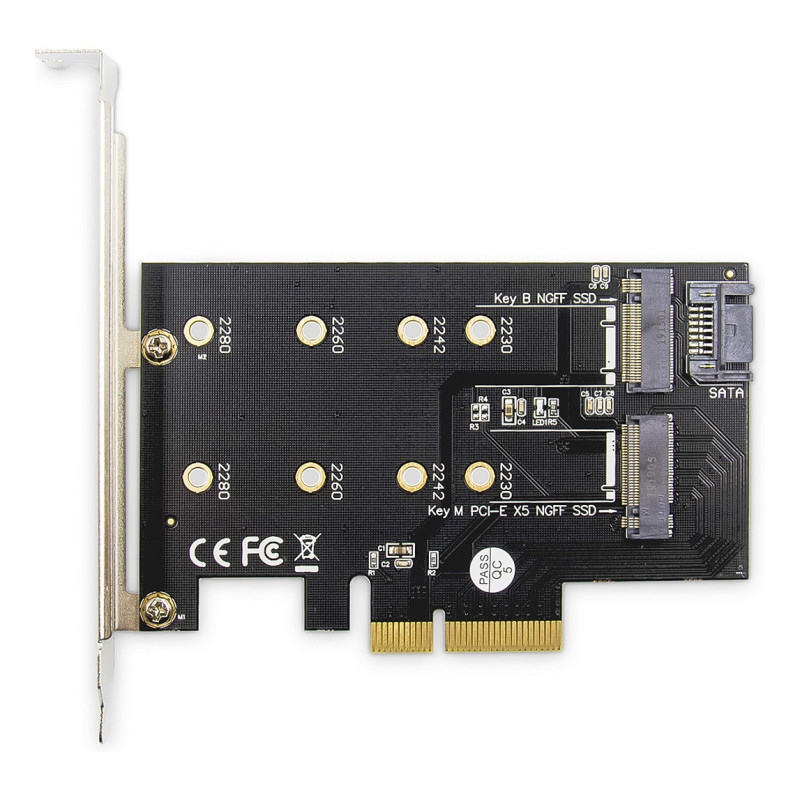

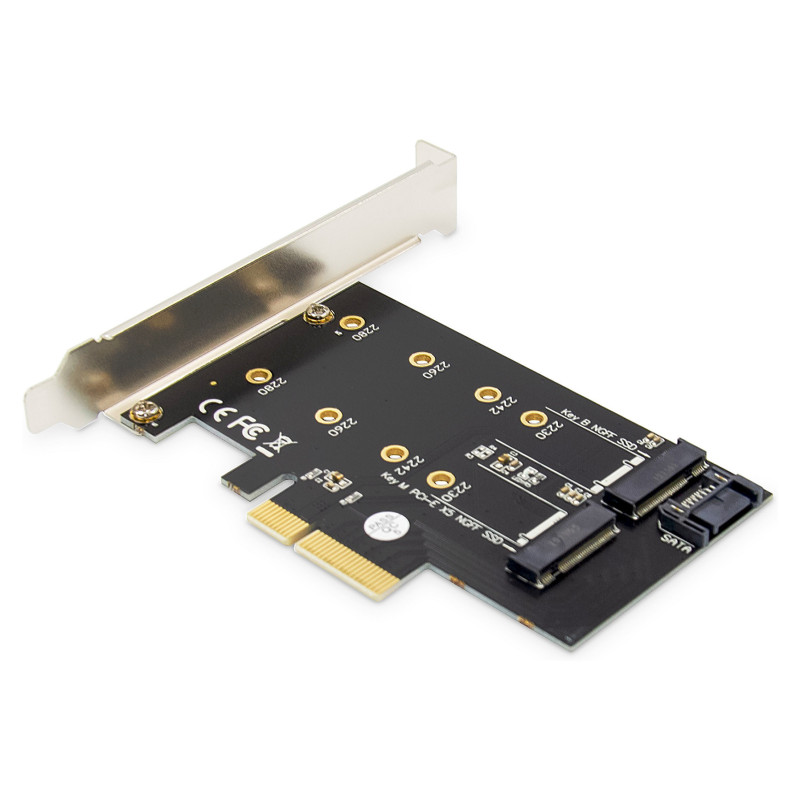

This PCIe x4 adapter card is suitable for M.2 / NGFF storage media (NVMe) with B, M, B+M key and the dimensions 2230, 2242, 2260 & 2280. Together with the x4 interface and PCIe 3.0 standard, data transfers of up to 6 Gbps (32 GT/s) are possible. Storage media can either be connected via the integrated SATA interface for M.2 SATA SSDs, or via the PCI interface for NVMe PCIe SSDs. Go into turbo mode with the multi-functional M.2 PCIe 3.0 add-on card from DIGITUS®.

Ports & interfaces

Host interface: PCIe
Output interface: M.2
Expansion card standard: PCI 3.0
Feature: NVMe
SATA revision: 3.0
Number of M.2 (M) slots: 2

Design

Feature: Internal
Product colour: Black
Country of origin: China

Features

Data transfer rate (max): 6 Gbit/s

Weight & dimensions

Width: 114 mm
Depth: 70 mm
Height: 20 mm
Weight: 41.2 g

Packaging data

Quantity: 1
Cables included: SATA
Feature: Mounting brackets included
Feature: Quick installation guide
Package weight: 145.5 g

Logistics data

Harmonized System (HS) code: 84733020
