„Digitus DS-12890“ KVM komutatorius

Digitus KVM Switch, 4-Port, 4K60Hz, 4 x DP in, 1 x DP/HDMI out. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Input voltage: 100 - 240, 5 V, AC input frequency: 50 - 60 Hz, Input current: 0.6 A. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP, Server operating systems supported: Windows 2000 Server

Operate 4 PCs with one USB keyboard and mouse - switch between four computers by pressing a button or with the remote control

- Use a monitor, a mouse and a keyboard to operate four computers
- USB ports for mouse and keyboard
- Audio connections for microphone/speaker
- Integrated USB hub with 2 x USB 3.0 connections for additional peripheral equipment
- Switching between the PCs via switch on the KVM switch, remote control or hot key on the keyboard
- External receiver for signals from remote control included
- Compatible with HDMI 2.0 / HDCP 2.2 / DisplayPort 1.2 / HDR / FreeSync

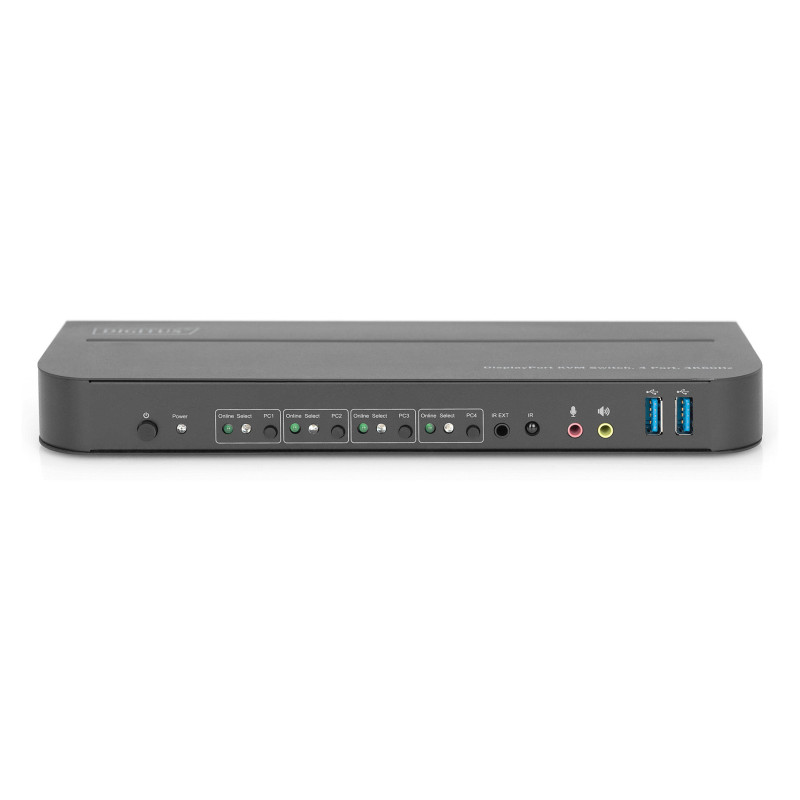

- LED status and functional displays on the front side
- Wall installation possible
- Plug and Play - no driver installation required

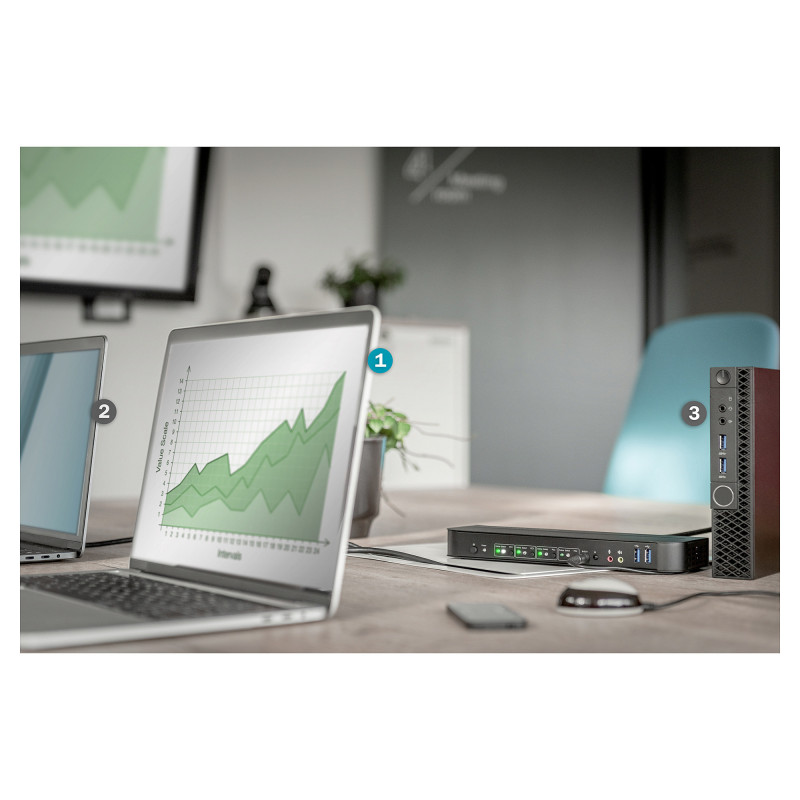

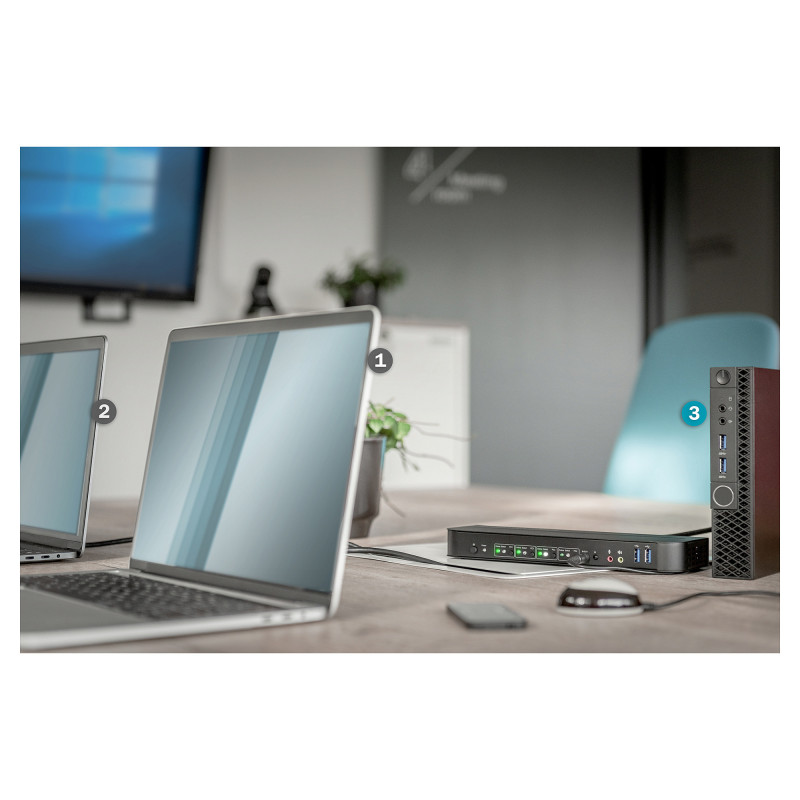

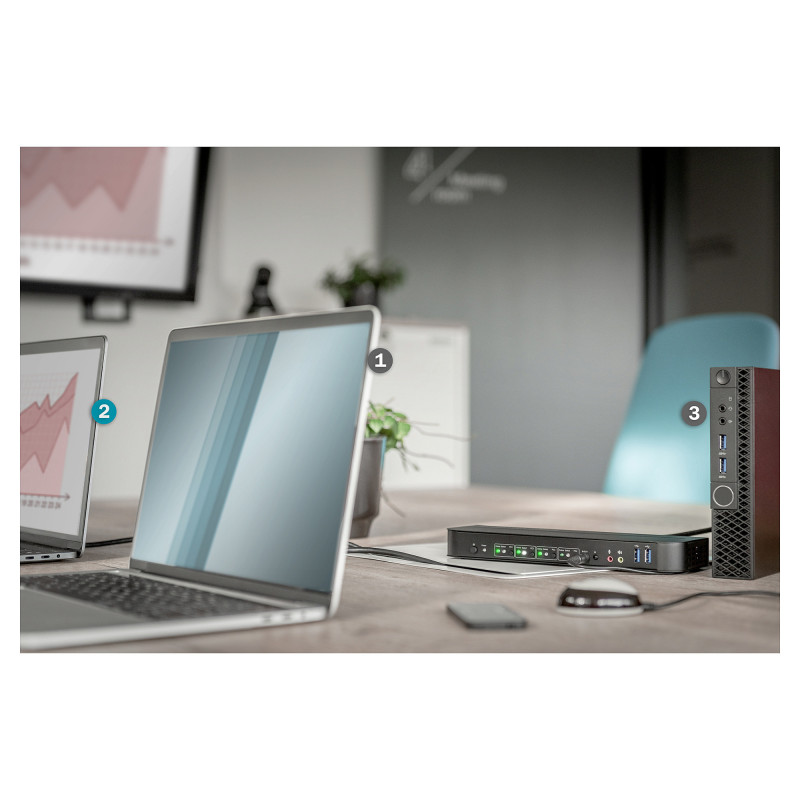

With the DIGITUS® 4-Port KVM Switch, you can operate four 4k-compatible PCs using a single USB keyboard and mouse. By pressing a button or using the remote control included in delivery, you can switch comfortably between the PCs, sparing you the trouble of replugging all cables. Output to a monitor occurs either via the integrated HDMI® or the DisplayPortTM output. You can also switch between the audio signals for the microphone and speaker. In addition, two USB 3.0 ports are included on the front side for use with other peripheral devices like USB sticks or external hard drives on all PCs. If you place the KVM switch in an inaccessible location, you can use the IR receiver and connection cable included in delivery even if the KVM switch itself is not within the range of the remote control. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing and the option of wall mounting.

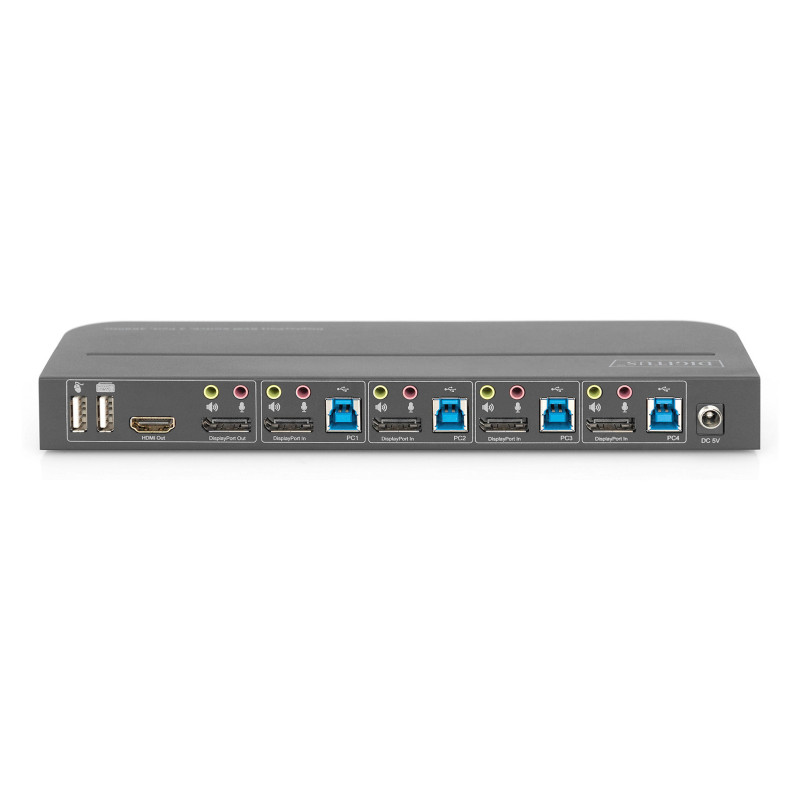

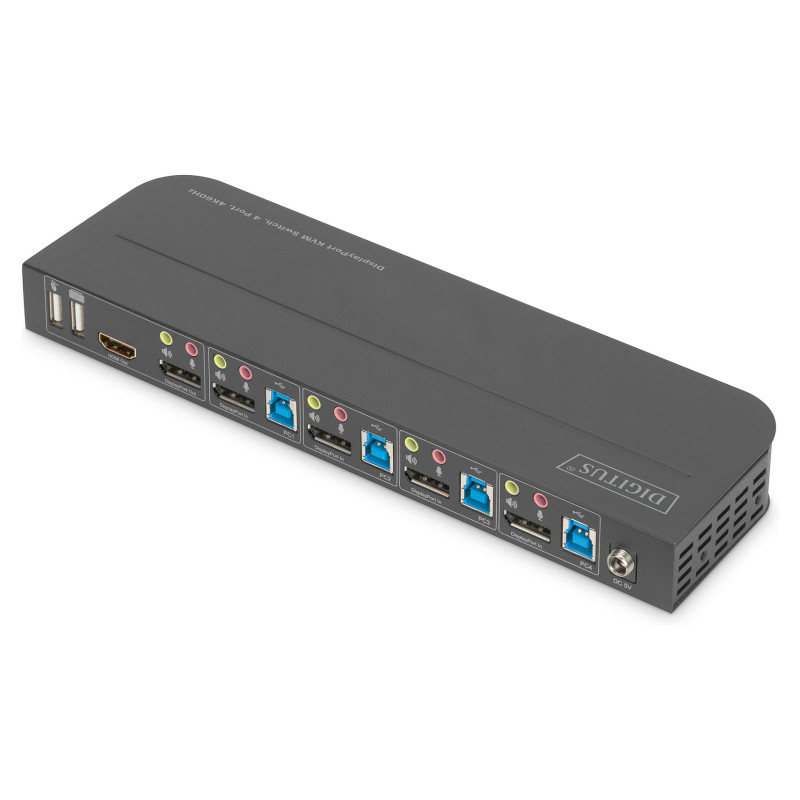

Ports & interfaces

Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI/DisplayPort
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 5
DisplayPort version: 1.2
Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB B
USB 2.0 Type-A hub ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
Feature: HDCP
Feature: Plug and Play

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Display switch button
Feature: Push button

Power

Input voltage: 100 - 240, 5 V
AC input frequency: 50 - 60 Hz
Input current: 0.6 A
Output voltage: 5 V
Output current: 3 A
Power consumption (typical): 11.75 W
Feature: External power adapter

System requirements

Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Server operating systems supported: Windows 2000 Server

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 80 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 75 mm
Depth: 243 mm
Height: 26 mm
Weight: 505.4 g

Packaging data

Package width: 230 mm
Package depth: 180 mm
Package volume: 2691 cm³
Package weight: 1.33 kg

Other features

Ports quantity: 8

Logistics data

Harmonized System (HS) code: 85176200
UK Trade Tariff code: 84718000
Country of origin: China
