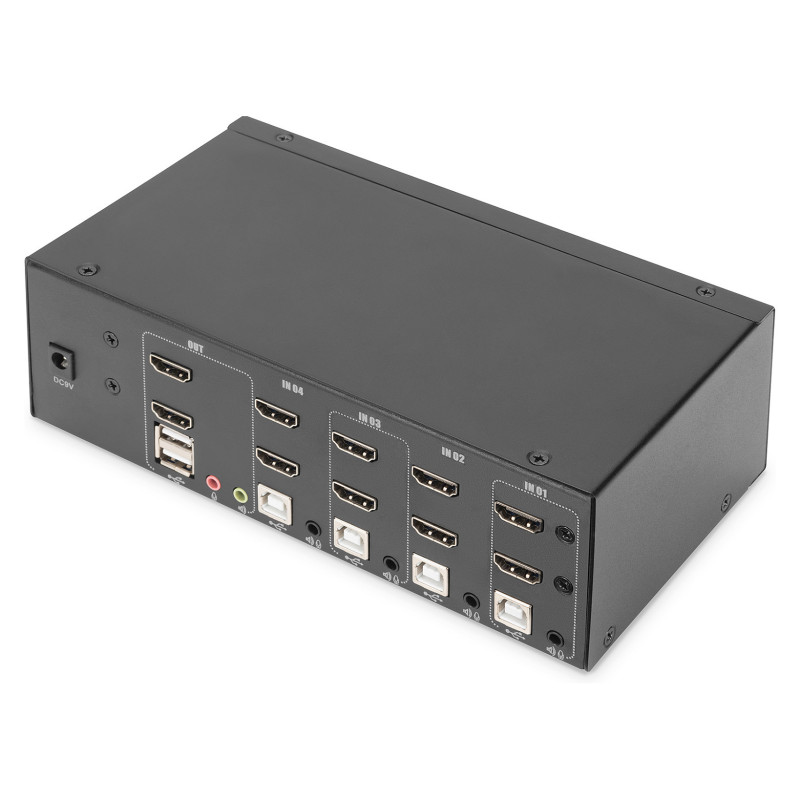

„Digitus DS-12883“ KVM komutatorius

Digitus KVM Switch, 4 Port, Dual Display, 4K, HDMI®. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Black, Housing material: Metal, LED indicators: Status. Output current: 0.3 A. Width: 202 mm, Depth: 110 mm, Height: 66 mm

Operate 4 PCs with dual display using a USB keyboard and mouse combination - switch between two computers by pressing a button

- Use two monitors, one mouse / keyboard to operate 4 computers with dual display
- Supports a maximum UHD resolution of 4K / 30 Hz + FreeSync
- USB ports for mouse and keyboard
- Audio connections for microphone / speakers, supports Dolby True HD and DTS HD Master Audio
- Integrated USB hub with USB A port for additional peripheral devices
- Switching between the PCs via switch on the KVM switch or hotkey on the keyboard

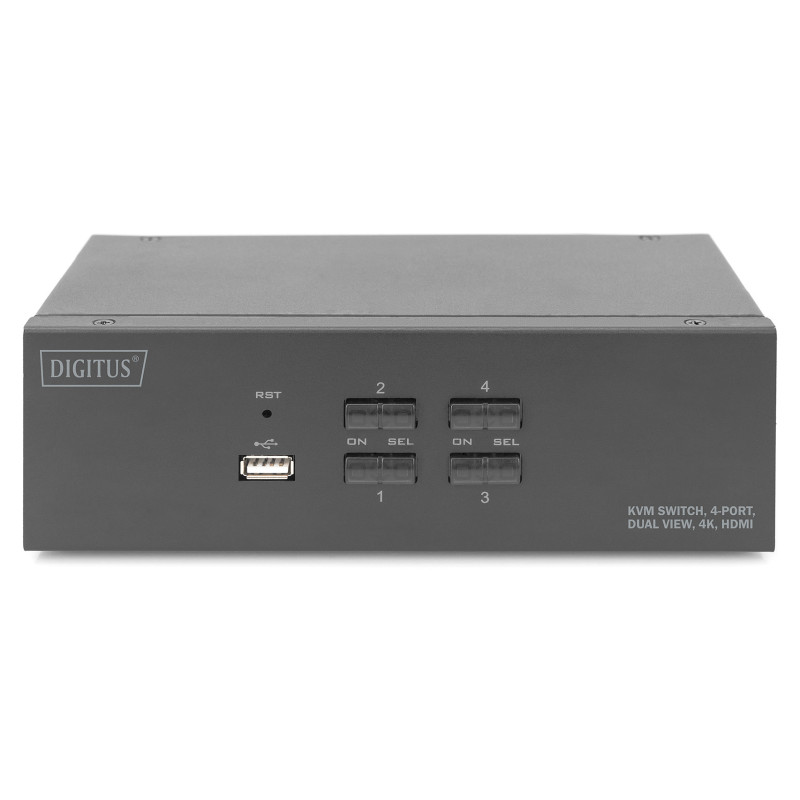

- LED status and function indicators on the front
- No more time-consuming re-plugging of connection cables necessary
- True plug and play - no software or driver installation required (BIOS hardware connection)
- Robust metal housing

With the DIGITUS® 4-Port KVM Switch for dual displays, you can operate four 4k-compatible PCs using a single USB keyboard and mouse combination. By pressing a button or hot key, you can switch comfortably between all four PCs and are spared the trouble of replugging all cables. Output on up to two monitors is provided via two HDMI® outputs on the rear side. You can also switch between the audio signals for the microphone and speaker. In addition, a USB port is included on the front side for use with other peripheral devices like USB sticks or external hard drives on both PCs. The connected peripheral devices are each assigned to the active PC. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing.

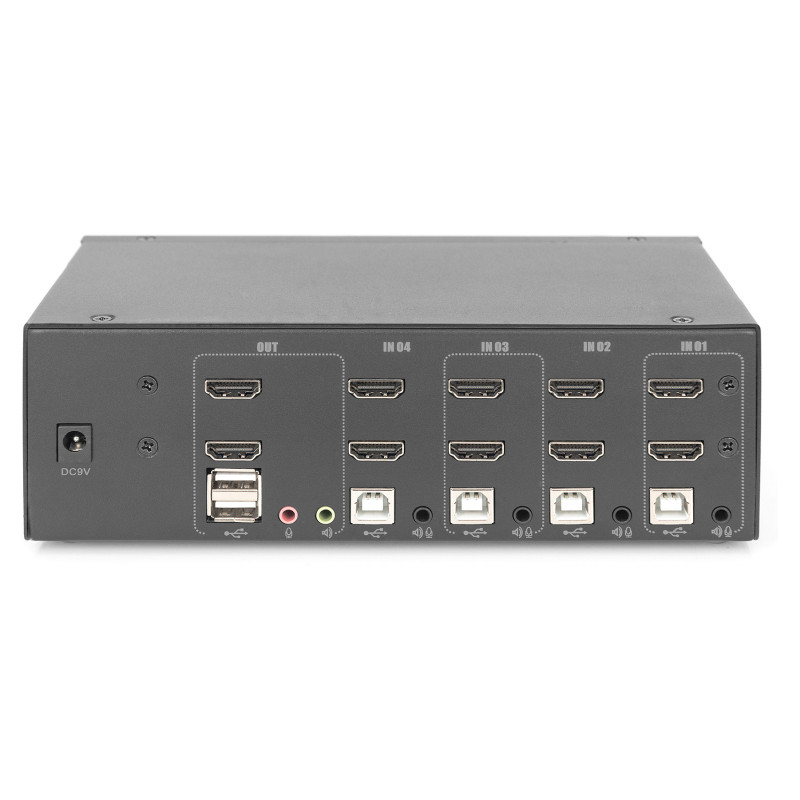

Ports & interfaces

Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 10
HDMI version: 1.4b
USB 2.0 Type-B ports quantity: 4
Console ports: HDMI, USB A
Console USB ports quantity: 2
Feature: USB hub
USB 2.0 Type-A hub ports quantity: 3
USB connector type: USB Type-A
Feature: Audio connections
Headphone outputs: 1
Number of microphone inputs: 1
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Feature: Plug and Play

Design

Product colour: Black
Housing material: Metal
LED indicators: Status

Power

Output current: 0.3 A
Feature: External power adapter

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 202 mm
Depth: 110 mm
Height: 66 mm
Weight: 920 g

Packaging data

Package width: 210 mm
Package depth: 210 mm
Package height: 160 mm
Package volume: 5292 cm³
Package weight: 13.2 kg

Packaging content

Cables included: HDMI, KVM
Feature: Quick installation guide
Feature: AC adapter included

Logistics data

UK Trade Tariff code: 84718000
Country of origin: China
