„Digitus DS-12851“ KVM komutatorius

Digitus KVM Switch, 2x1 DP, DP Out,USB. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5 V. Width: 132 mm, Depth: 92 mm, Height: 44 mm

With a resolution of 4K @ 60HZ and two DisplayPort inputs, this KVM switch offers impressive image quality and flexibility when connecting to multiple devices. The additional connections on the front panel and support for Dolby True HD and DTS HD Master Audio make it a versatile choice for all kinds of applications.

- Resolution: 4K @ 60HZ( 3840x2160 @60HZ)

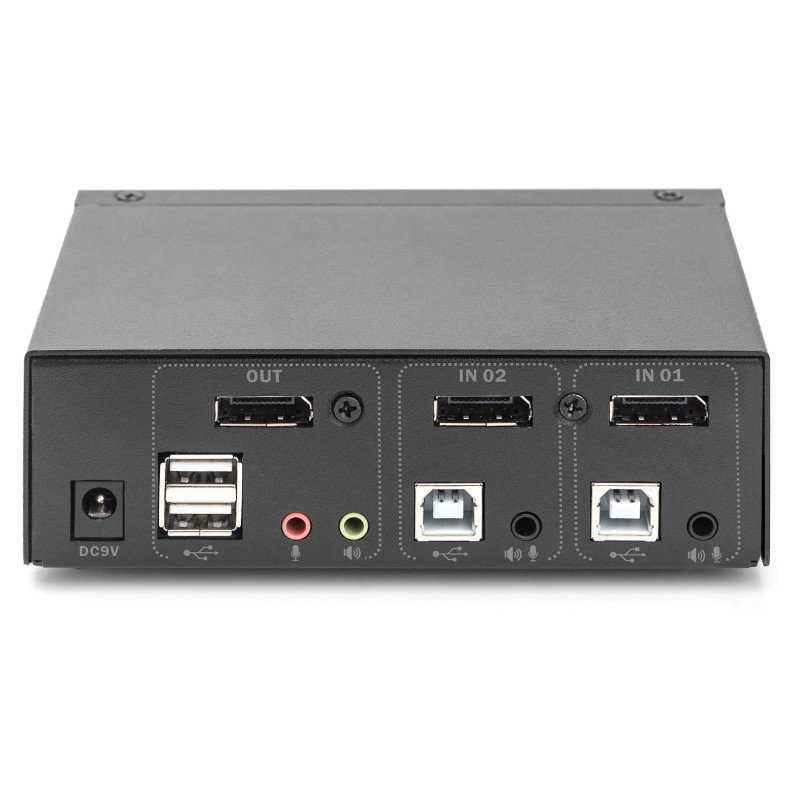

- Inputs: 2 x Displayport inputs (2x1), 2 x USB B, 2 x audio combo jack 3.5 mm jack (microphone, speaker)
- Outputs (console): 1 x display port, 2 x USB A (mouse, keyboard), 2 x stereo audio 3.5m jack (microphone, loudspeaker)

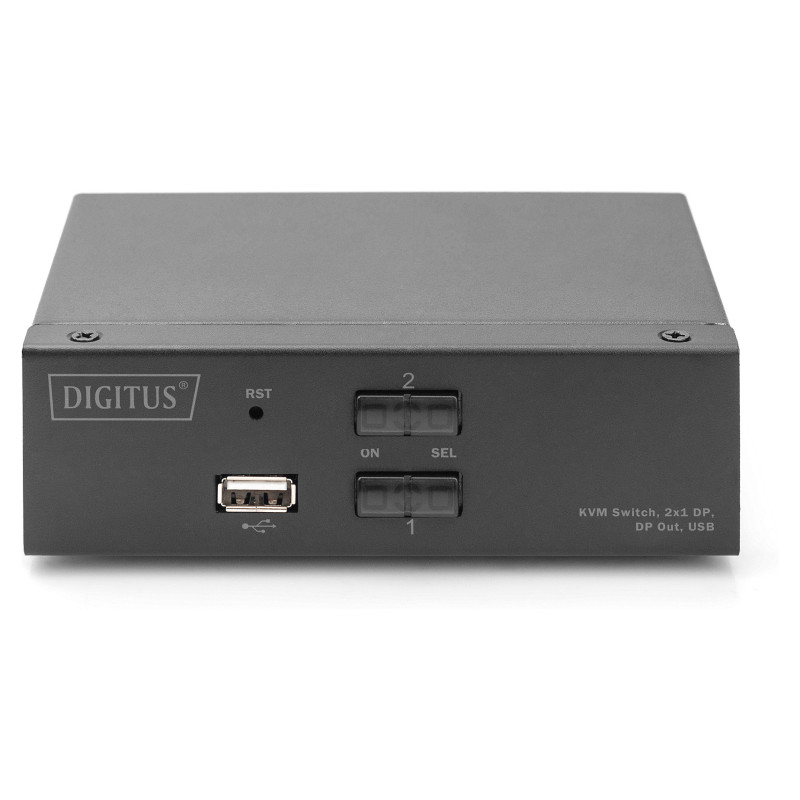

- Additional connection on the front: 1 x USB A for further peripheral devices, such as printers or USB sticks
- USB specification: USB 2.0 compliant (FullSpeed)
- Supported audio formats: Dolby True HD, DTS HD Master Audio
- Switching between PCs: Switch on front panel or hot keys
- Status LED on front panel shows current configuration
- The unit works platform-independently, suitable for all operating systems

The DS-12851 is an advanced desktop KVM switch that offers seamless switching between two groups of DP+ audio +MIC+USB devices. It comes equipped with a set of local control interfaces that allow you to easily manage and control all of your connected devices. The front USB interface provides easy access for connecting USB peripherals such as a keyboard, mouse, USB flash drive, printer, and more. With support for both hotkey switching and panel button switching control, the DS-12851 makes it easy to switch between your devices on the fly, without any interruption to your workflow. Whether you're a professional working on multiple projects or a gamer looking for seamless control over your gaming setup, the DS-12851 has got you covered. With its sleek and compact design, the DS-12851 is perfect for use in a wide range of settings, including home offices, gaming rooms, and professional workspaces. So if you're looking for a reliable and easy-to-use interface controller that can keep up with your demanding needs, look no further than the DS-12851.

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 2
USB 2.0 Type-B ports quantity: 2
Console ports: 3.5mm headphone, DisplayPort, USB A, 3.5mm mic
Console USB ports quantity: 2
Console DisplayPorts ports quantity: 1
USB 2.0 Type-A hub ports quantity: 1
USB connector type: USB Type-A, USB Type-B
Feature: Audio connections
Headphone outputs: 2
Number of microphone inputs: 2
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Video bandwidth: 60 Hz
Feature: Plug and Play
Audio decoding technologies: Dolby TrueHD, DTS-HD Master Audio

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Hot keys

Power

Power source: DC
Input voltage: 5 V

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 132 mm
Depth: 92 mm
Height: 44 mm
Weight: 465 g

Packaging data

Package width: 185 mm
Package depth: 93 mm
Package height: 225 mm
Package type: Box

Packaging content

Cables included: KVM
Feature: Manual
