DeLOCK 89008 sąsajos plokštės / adapteris

DeLOCK PCI Express x4 Card to 4 x external SuperSpeed USB (USB 3.2 Gen 1) USB Type-A female Quad Channel - Low Profile Form Factor. Host interface: PCIe, Output interface: PCIe, SATA, USB 3.2 Gen 1 (3.1 Gen 1), Expansion card form factor: Low-profile. Product colour: Grey, Purpose: PC. Data transfer rate (max): 5 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Linux operating systems supported: Kernel 3.3. Package type: Box

Description

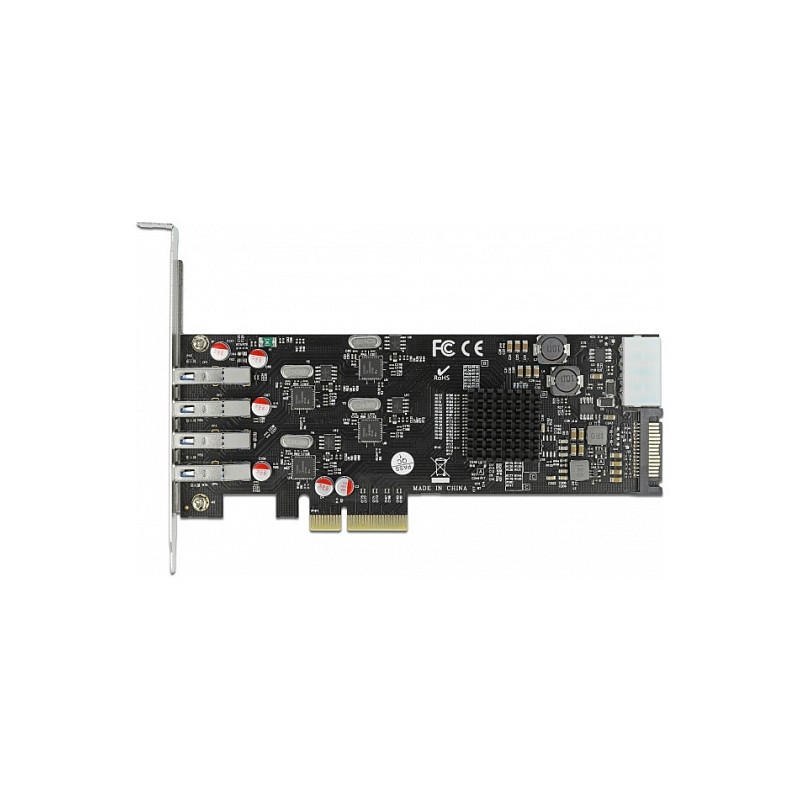

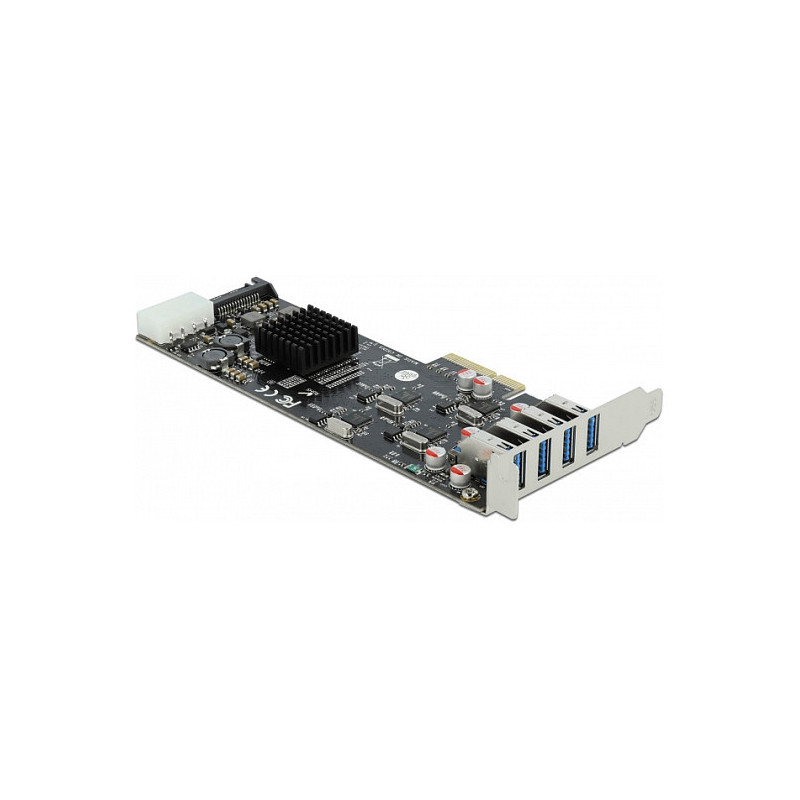

The PCI Express card by Delock expands a PC by four external USB 3.0 ports. Each port is supported by a single Renesas chip, which provides a high data transfer rate. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Due to the vertical direction of the USB 3.0 ports, it is possible to install it into a low profile slot.

Ports & interfaces

Host interface: PCIe
Output interface: PCIe, SATA, USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor: Low-profile
Expansion card standard: PCIe 2.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
Internal SATA ports quantity: 1

Design

Feature: Internal
Product colour: Grey
Purpose: PC

Features

Data transfer rate (max): 5 Gbit/s

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64
Linux operating systems supported: Kernel 3.3

Packaging data

Quantity: 1
Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
