DeLOCK 88306 InfiniBand / šviesolaidinis kabelis

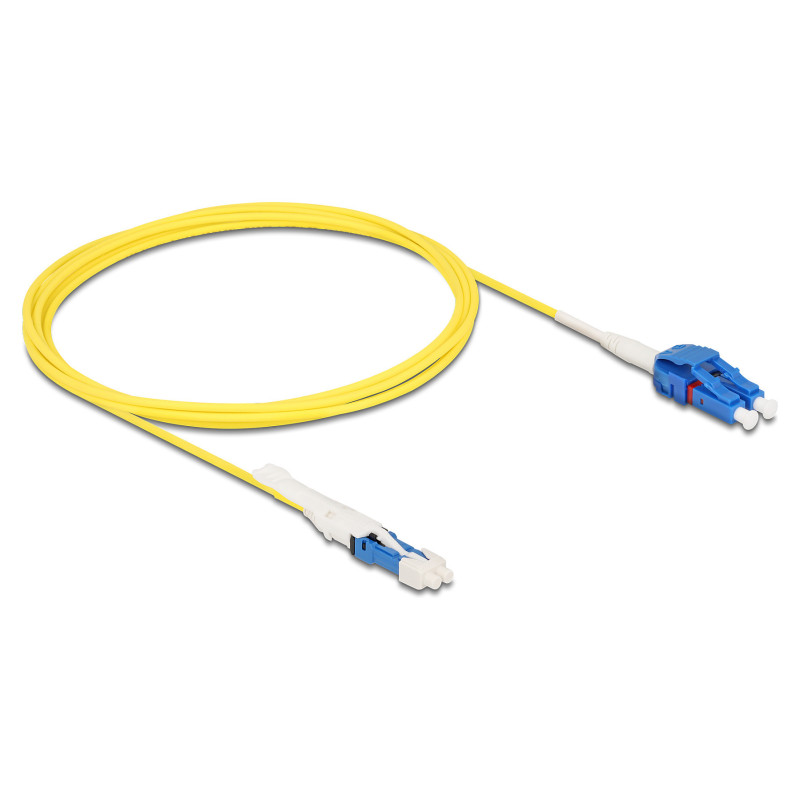

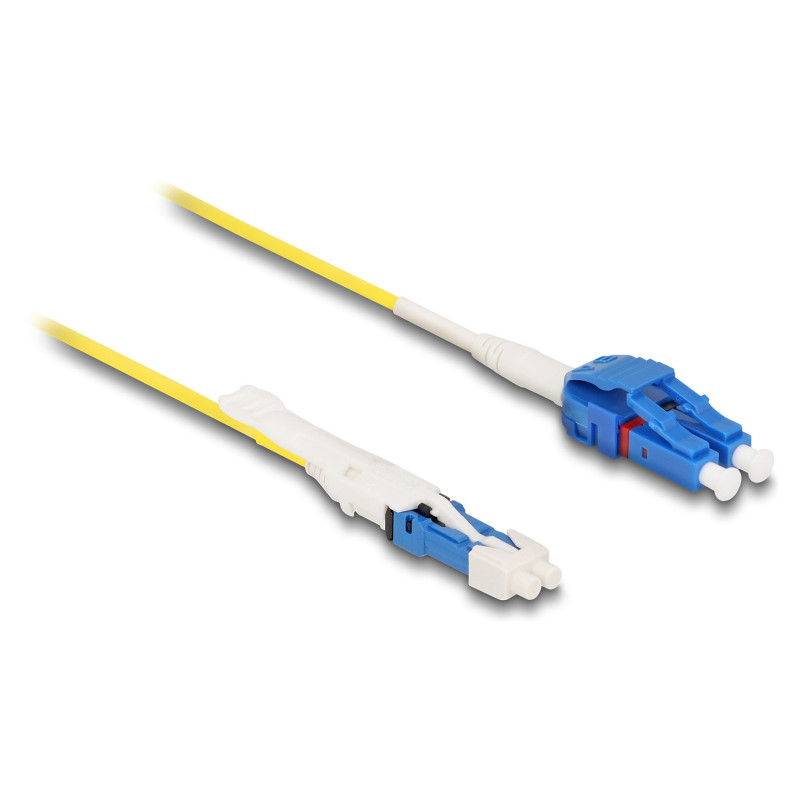

DeLOCK Optical Fiber Cable CS male to LC Duplex singlemode G657A2 / OS2 Uniboot 2 m. Cable length: 2 m, Fibre optic type: OS2, Connector 1: CS, Connector 2: LC, Core diameter: 9 µm, Full duplex

This optical cable by Delock can be used to connect transceivers with CS interface and for cabling the optical fiber network in data centres.

CS connector
The CS (Connector Senko) plug belongs to the Very Small Form Factor (VSFF) connectors and has a smaller form factor than comparable LC Duplex connectors. The plug is particularly suitable for applications with high packing density. The push-pull tab on the connector makes it easy to plug and unplug.

Features

Cable length: 2 m
Fibre optic type: OS2
Cable shape: Round
Connector 1: CS
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Blue, Yellow
Feature: Full duplex
Core diameter: 9 µm
Cladding diameter: 125 µm
Fiber mode structure: Single-mode
Insertion loss: 0.2 dB
Return loss: 55 dB
Jacket material: Low smoke zero halogen (LSZH)
Connector material: Ceramic
Polarity: A/B
Feature: Plug and Play

Operational conditions

Operating temperature (T-T): -20 - 70 °C

Weight & dimensions

Cable diameter: 2 mm

Packaging data

Package type: Polybag

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Country of origin: China
