„DeLOCK 66498“ vaizdo jungiklis

DeLOCK HDMI Switch 3 x HDMI in to 1 x HDMI out 4K 60 Hz with Audio Extractor. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. AC input voltage: 100-240 V, AC adapter frequency: 50-60 Hz, AC adapter input current: 0.3 A. Width: 75 mm, Depth: 168 mm, Height: 21 mm. Quantity per pack: 1 pc(s), Cables included: USB

With this HDMI switch by Delock up to three HDMI devices can be used with one HDMI monitor, TV or projector. The button on the device or the remote control can be used to switch between the HDMI devices.

Audio extractor
This function can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.

Audio Return Channel (ARC)
ARC can be enabled at the push of a button on the device or the remote control. Then the audio signal of the connected TV device is routed to the S/PDIF connectors of the switch.

Ports & interfaces

Video port type: HDMI
HDMI ports quantity: 4
HDMI in: 3
Number of HDMI outputs: 1
Digital audio coaxial out: 1
Feature: S/PDIF out port
Feature: 3.5 mm (1/8-inch) out
Feature: DC-in jack

Features

Material: Metal
Product colour: Black
Feature: HDCP
Maximum refresh rate: 60 Hz
Bandwidth: 18 Gbit/s
LED indicators: Yes
Bandwidth: 600 MHz
Maximum resolution: 3840 x 2160 pixels
Cable length: 0.5 m
Feature: 3D
HD type: 4K Ultra HD

Power

AC input voltage: 100-240 V
AC adapter frequency: 50-60 Hz
AC adapter input current: 0.3 A
AC adapter output voltage: 5 V
AC adapter output current: 1 A
Power consumption (max): 5 W

Weight & dimensions

Width: 75 mm
Depth: 168 mm
Height: 21 mm

Packaging content

Quantity per pack: 1 pc(s)

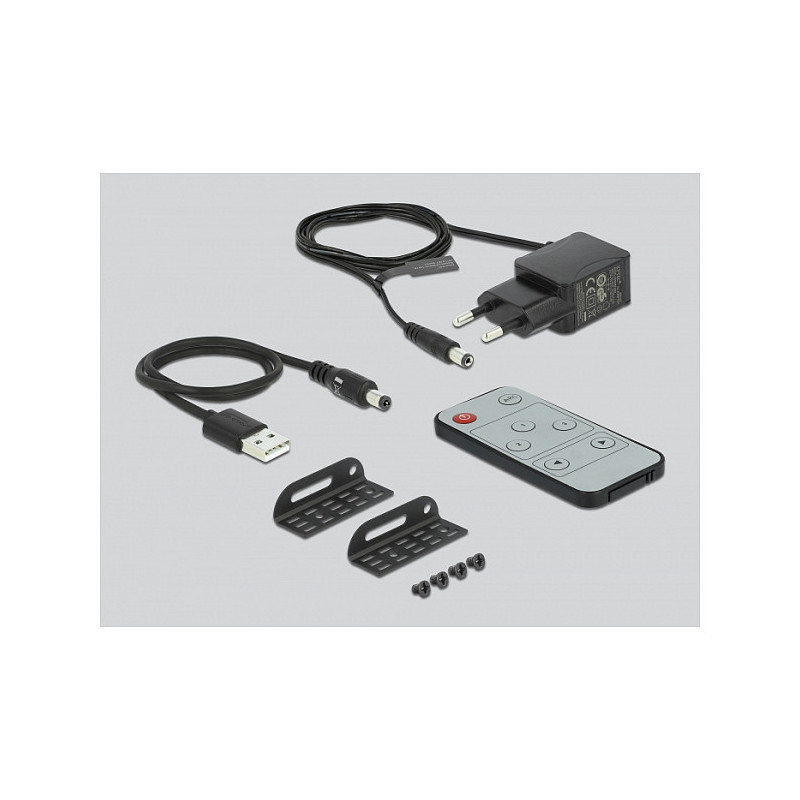

Feature: Mounting kit
Feature: Remote control included
Feature: Manual
Cables included: USB
Feature: AC adapter included

Logistics data

Country of origin: China
