„DeLOCK 66454“ vaizdo jungiklis

DeLOCK HDMI Matrix Switch 4 x HDMI in to 2 x HDMI out 4K 60 Hz with Audio Extractor. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50 - 60 Hz, AC adapter input current: 0.3 A. Width: 105 mm, Depth: 250 mm, Height: 20 mm. Quantity per pack: 1 pc(s)

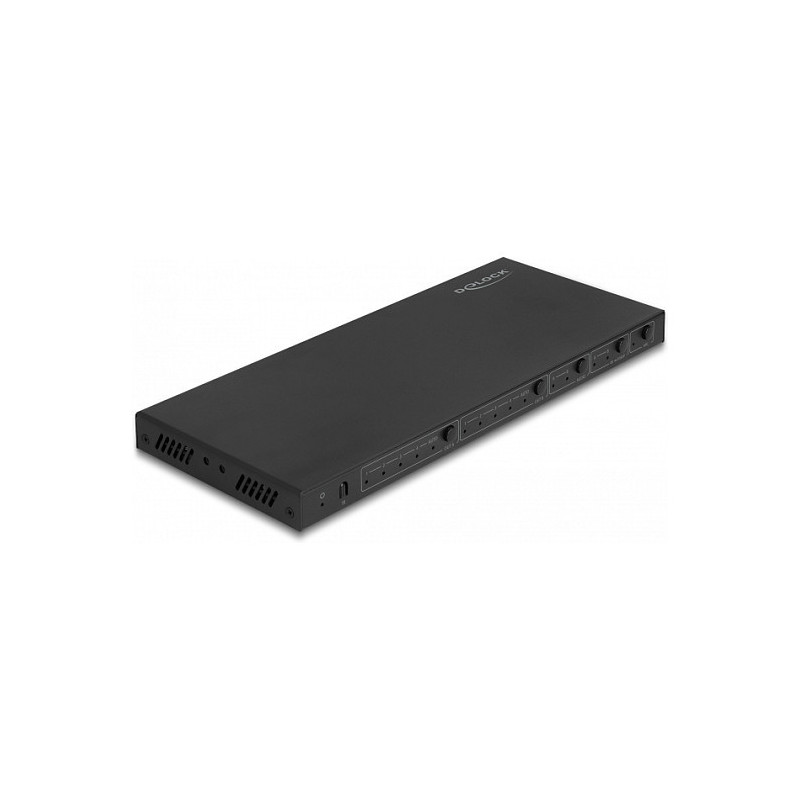

With this HDMI switch by Delock up to four HDMI devices can be used with two HDMI monitors, TVs or projectors. The button on the device or the remote control can be used to switch between the HDMI devices.

Matrix switch
Each input can be switched to each output; thus, the desired source can be selected for each monitor. Parallel output of one source to two monitors is also possible.

Downscaler
If a monitor does not support the high resolution, the image can be scaled from 4K to 1080p with the integrated downscaler.

Audio extractor
This function can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.

Audio Return Channel (ARC)
ARC can be enabled at the push of a button on the device or the remote control. Then the audio signal of the connected TV device is routed to the S/PDIF connectors of the switch.

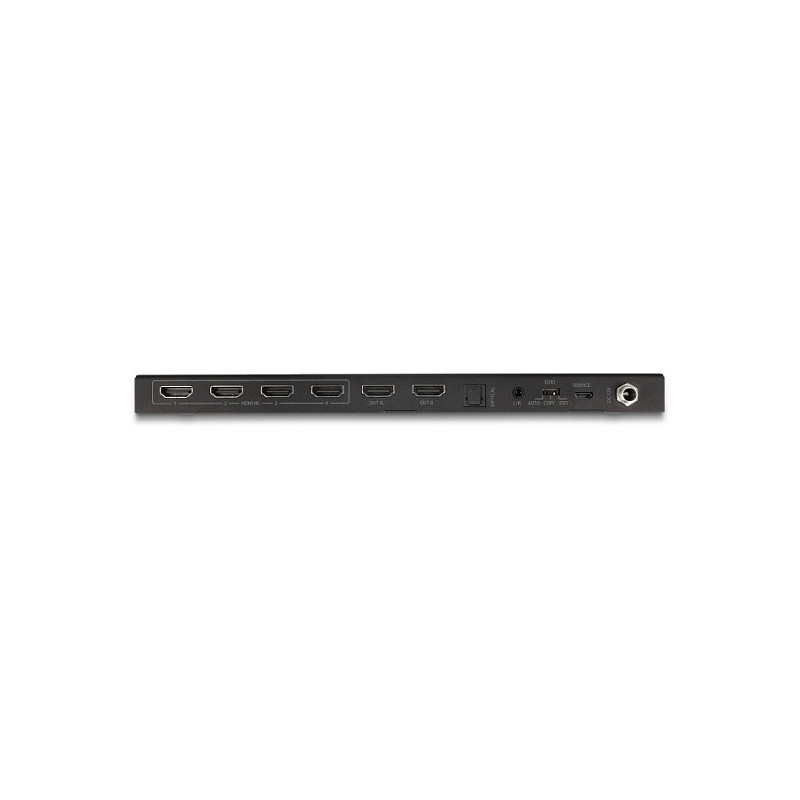

Ports & interfaces

Video port type: HDMI
HDMI ports quantity: 6
HDMI in: 4
Number of HDMI outputs: 2
Digital audio optical out: 1
Feature: 3.5 mm (1/8-inch) out
Feature: DC-in jack

Features

Material: Metal
Product colour: Black
Feature: Extended display identification data (EDID)
Feature: High Dynamic Range (HDR) supported
Feature: HDCP
Maximum refresh rate: 60 Hz
LED indicators: Yes
Bandwidth: 600 MHz
Maximum resolution: 3840 x 2160 pixels
HDCP version: 1.4/2.2

Power

AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50 - 60 Hz
AC adapter input current: 0.3 A
AC adapter output voltage: 12 V
AC adapter output current: 1 A
Power consumption (max): 4 W

Weight & dimensions

Width: 105 mm
Depth: 250 mm
Height: 20 mm

Packaging content

Quantity per pack: 1 pc(s)

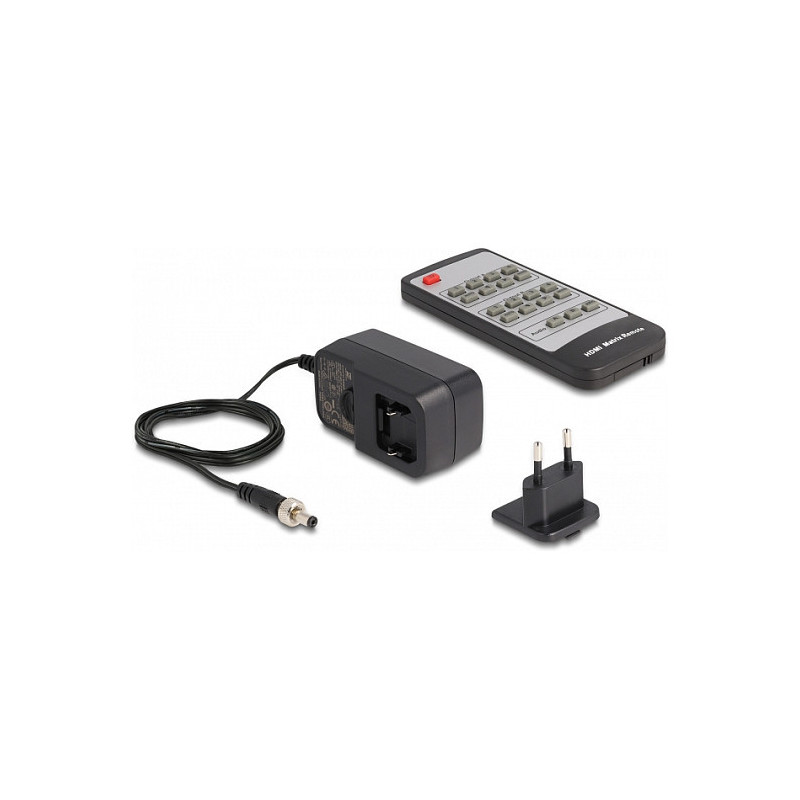

Feature: Remote control included
Feature: Manual
Feature: AC adapter included
Feature: Mounting brackets included
