„DeLOCK 64070“ sąsajos šakotuvas

DeLOCK 64070. Host interface: USB 2.0, Hub interfaces: RS-232, USB 2.0. Data transfer rate: 0.4608 Mbit/s, Product colour: Black, Housing material: Metal. Input voltage: 100 - 240 V, Input current: 0.2 A, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10, Windows 7, Windows 8.1. Width: 102 mm, Depth: 268 mm, Height: 40 mm

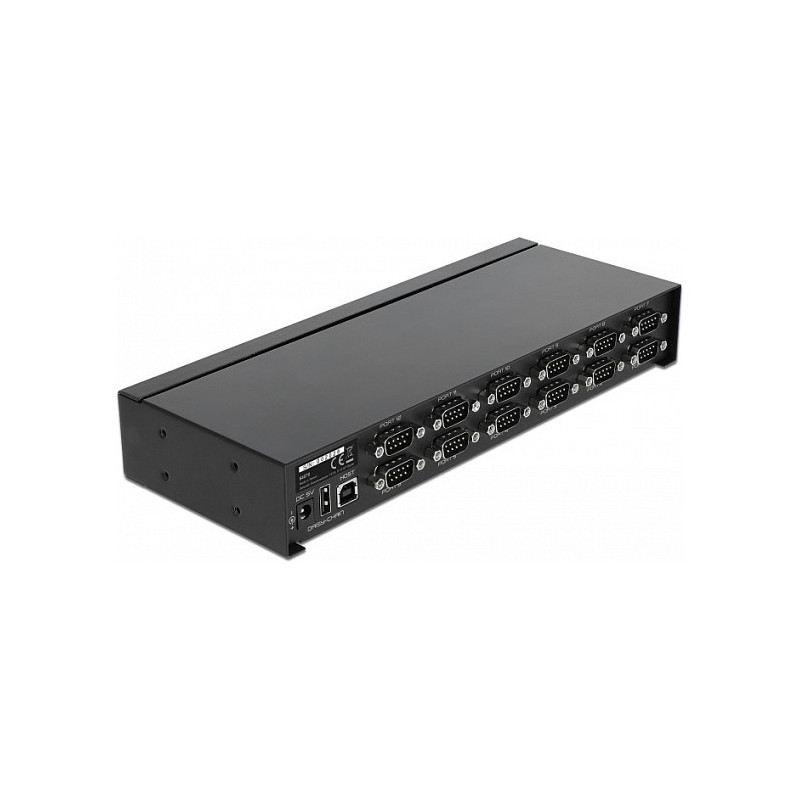

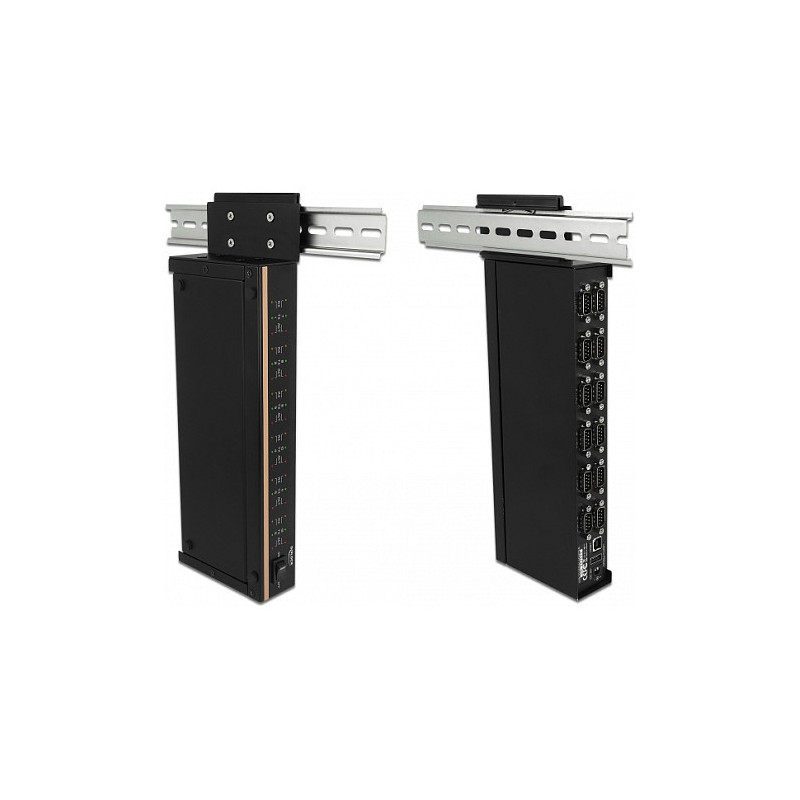

This compact RS-232 hub with High Speed USB 2.0 to 12 x RS-232 serial by Delock supports connections for printers, controllers, measuring devices etc. Up to four of these hubs can be cascaded (series connection), thus up to 48 RS-232 ports are provided on one USB 2.0 port. The LEDs on each single port indicate the current RS-232 status. A Windows application supports centralized control of the serial COM ports. The hub is suitable as a desktop device and for wall or DIN rail mounting.

Ports & interfaces

Host interface: USB 2.0
Hub interfaces: RS-232, USB 2.0
USB 2.0 ports quantity: 2
Ports quantity: 14
RS-232 ports: 12
Feature: DC-in jack

Features

Data transfer rate: 0.4608 Mbit/s
Product colour: Black
Housing material: Metal
Feature: Surge protection

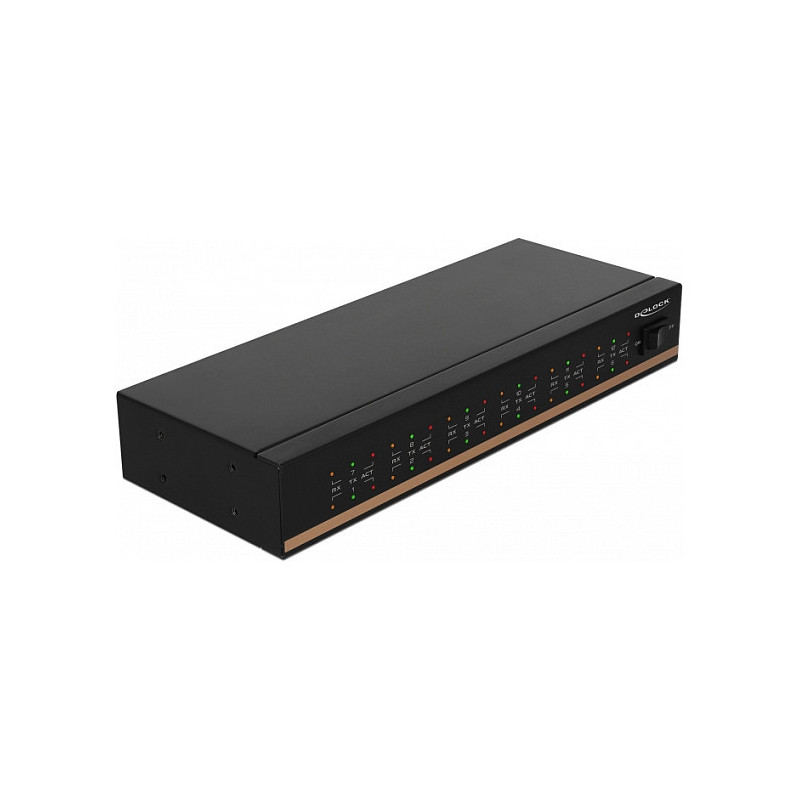

LED indicators: Yes
Cable length: 1.2 m
Feature: Plug and Play

Power

Input voltage: 100 - 240 V
Input current: 0.2 A
AC input frequency: 50 - 60 Hz
Output voltage: 5 V
Output current: 1 A

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8.1
Linux operating systems supported: Yes

Weight & dimensions

Width: 102 mm
Depth: 268 mm
Height: 40 mm
Weight: 1.03 kg

Packaging data

Quantity per pack: 1 pc(s)
Package type: Box

Packaging content

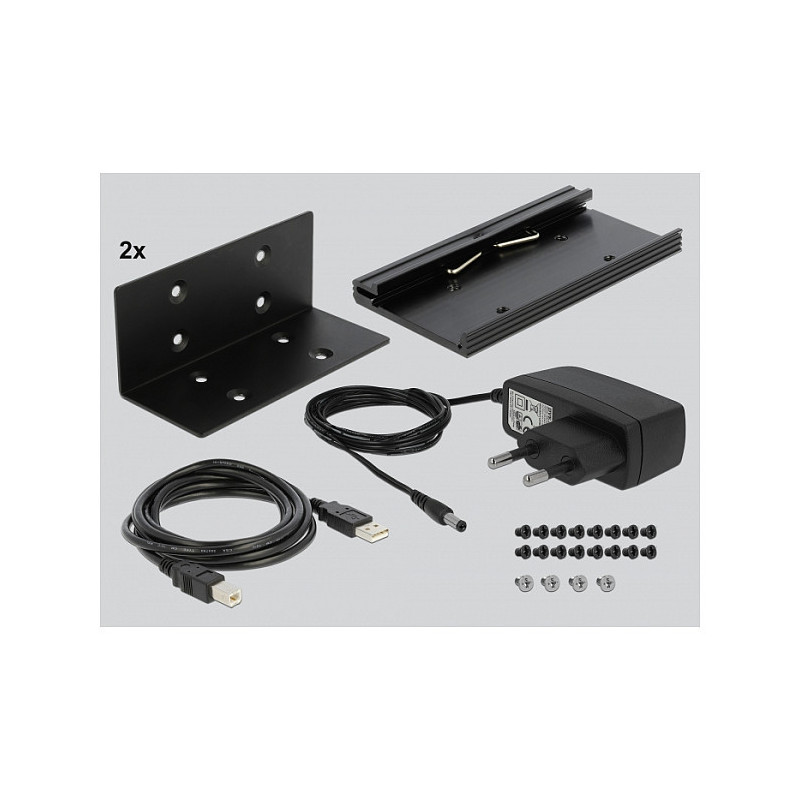

Feature: AC adapter included
Cables included: USB Type-A to USB Type-B
Feature: Manual

Operational conditions

Operating temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 80%
