„DeLOCK 63934“ konsolės ilgintuvas

DeLOCK 63934. Width: 43 mm, Depth: 47 mm, Height: 24 mm. Power source type: AC, Input voltage: 100 - 240 V, Input frequency: 50 - 60 Hz

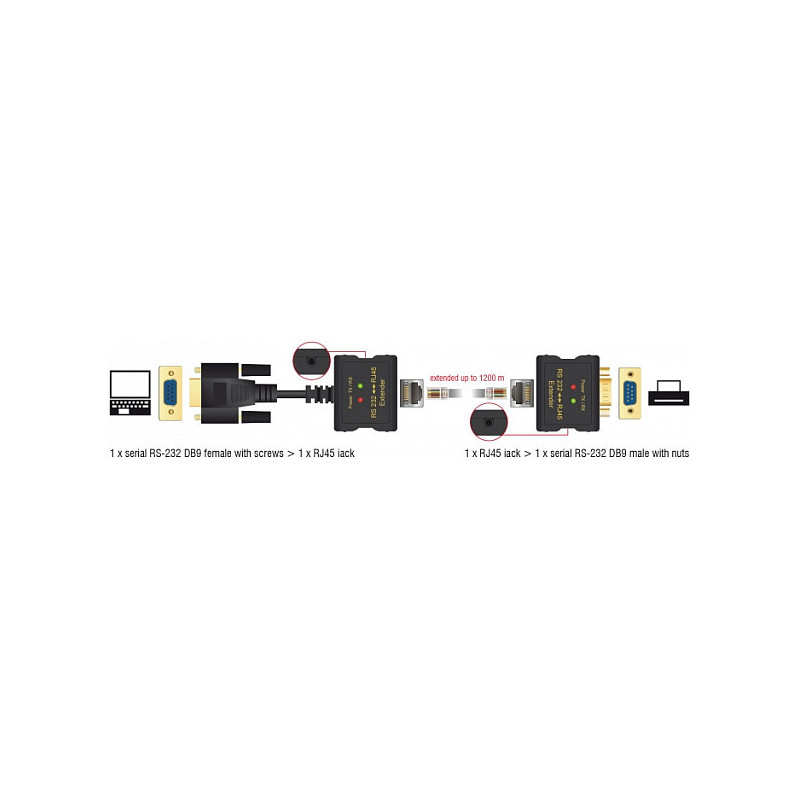

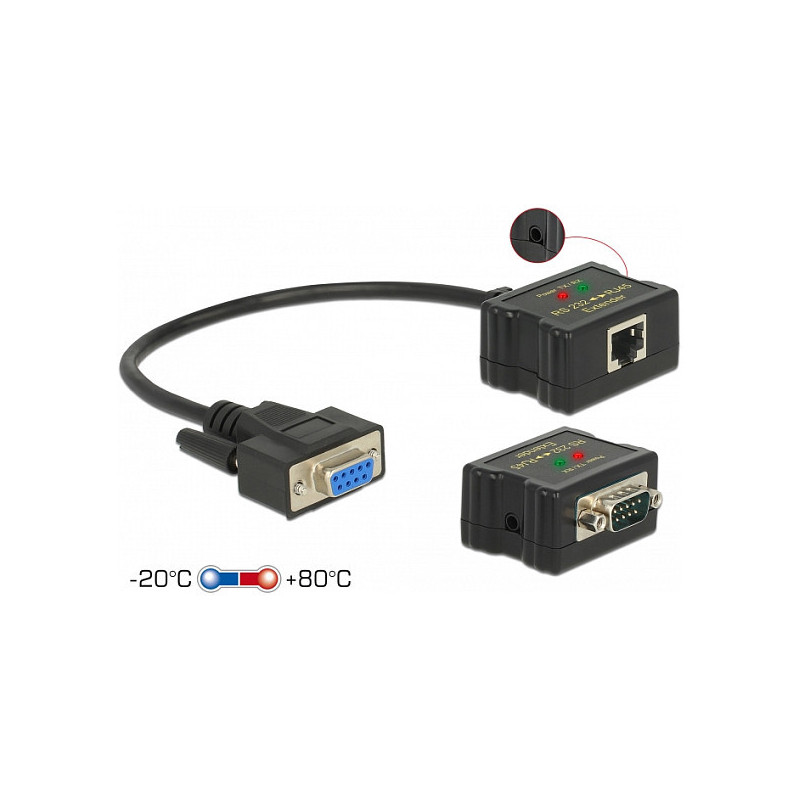

This RS-232 Extender with two converters and RJ45 connectors by Delock can bridge long distances between RS-232 devices bidirectionally and OS independently. The differential transmission technology prevents data errors that can occur caused by external interference or different ground potentials. Additional power supplies on the converters ensure the quality of the data signals. Cable lengths of up to 1200 m are achieved. The RS-232 Extender connects scanners, measurement instruments, machines, computers, IOT devices etc.

Technical details

Type: Console transmitter
Data transfer rate: 0.4608 Mbit/s
Feature: Ethernet LAN
Maximum transfer distance: 1200 m
Product colour: Black
Feature: Connection to PC
Housing material: Plastic
LED indicators: Activity, Power

Ports & interfaces

RS-232 ports: 1
RJ-45 ports quantity: 1

Weight & dimensions

Width: 43 mm
Depth: 47 mm
Height: 24 mm
Weight: 70 g

Operational conditions

Operating temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 20 - 90%

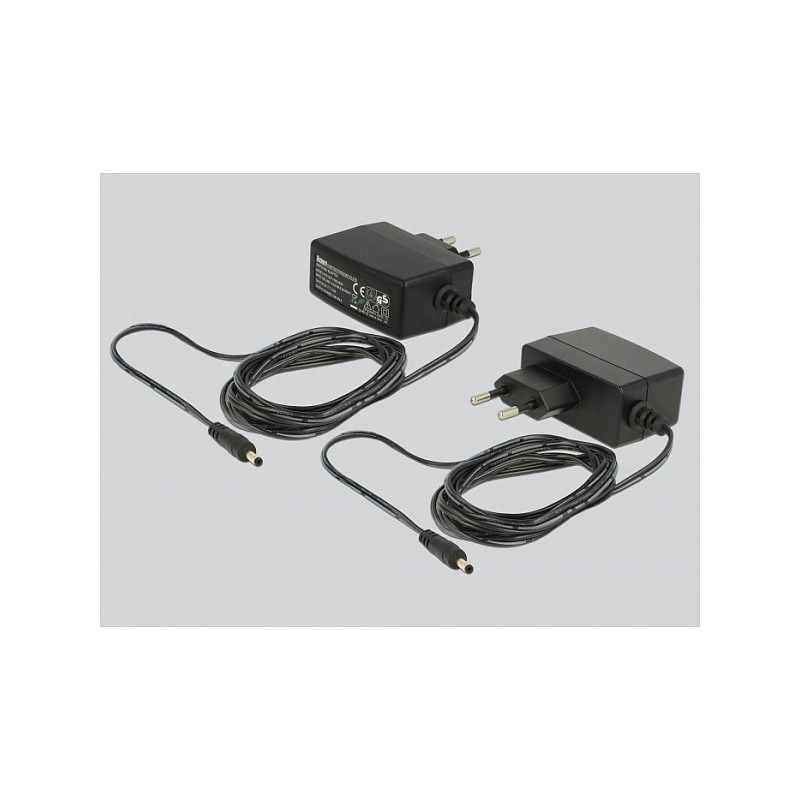

Power

Power source type: AC
Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Input current: 0.5 A
Output voltage: 5 V
Output current: 2 A
