DeLOCK 63917 sąsajos plokštės / adapteris

DeLOCK 63917. Host interface: SATA, Output interface: M.2. LED indicators: Activity, Power. Data transfer rate (max): 6 Gbit/s. Windows operating systems supported: Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64. Width: 30 mm, Depth: 114 mm, Height: 11 mm

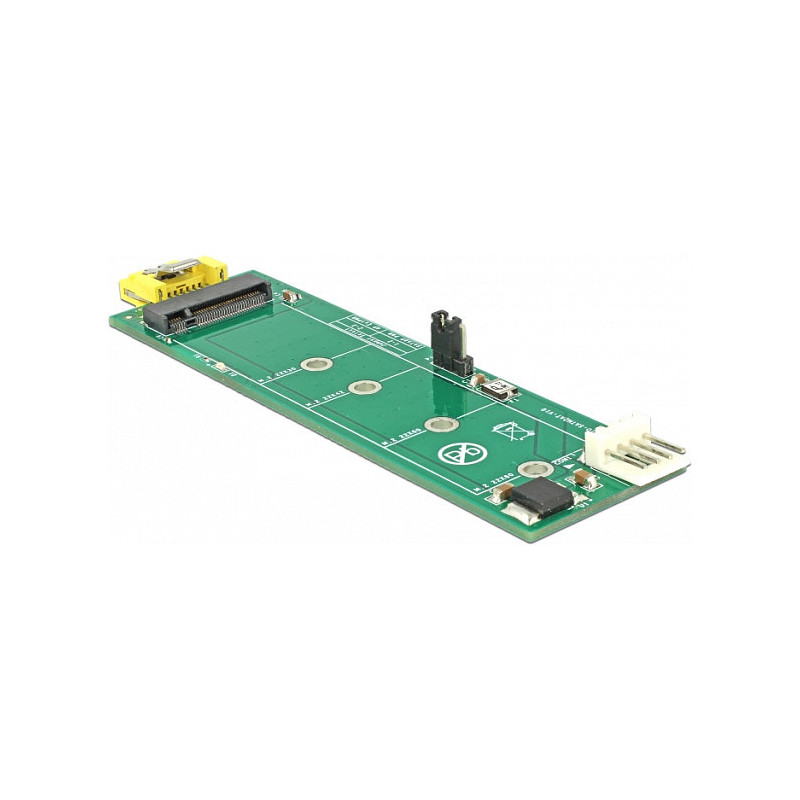

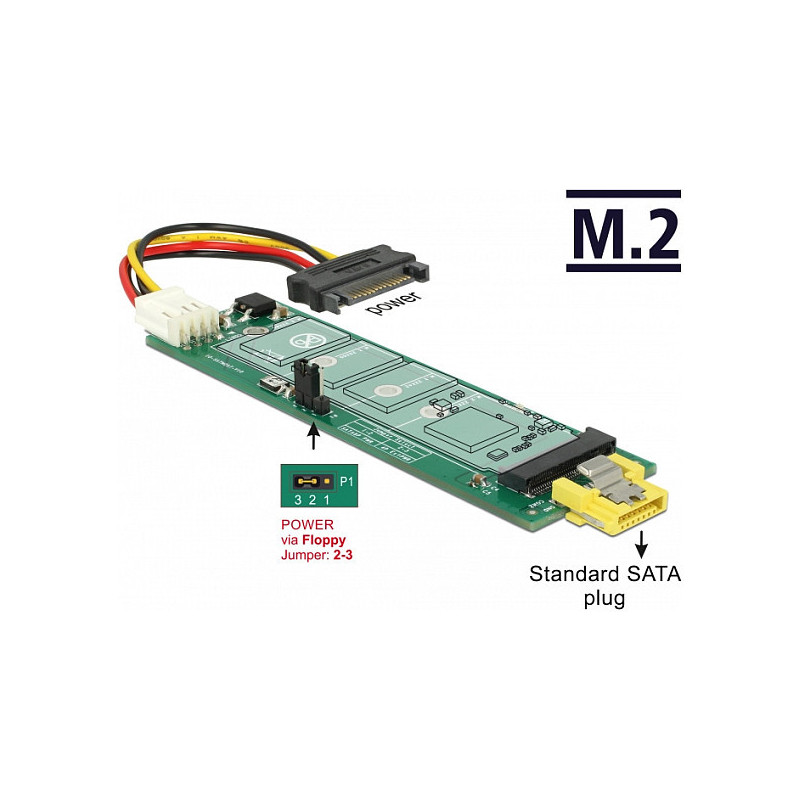

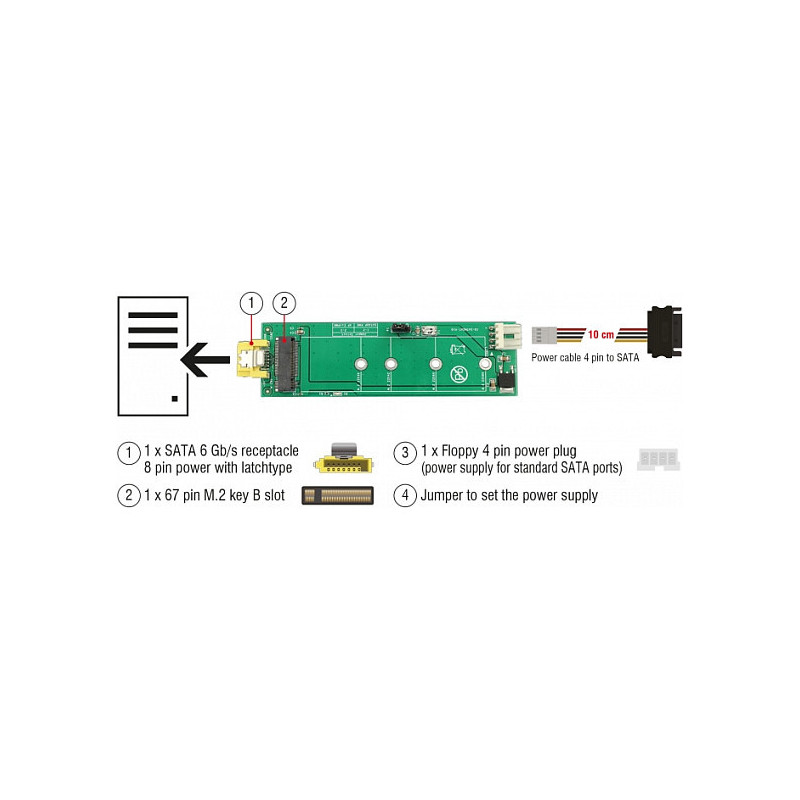

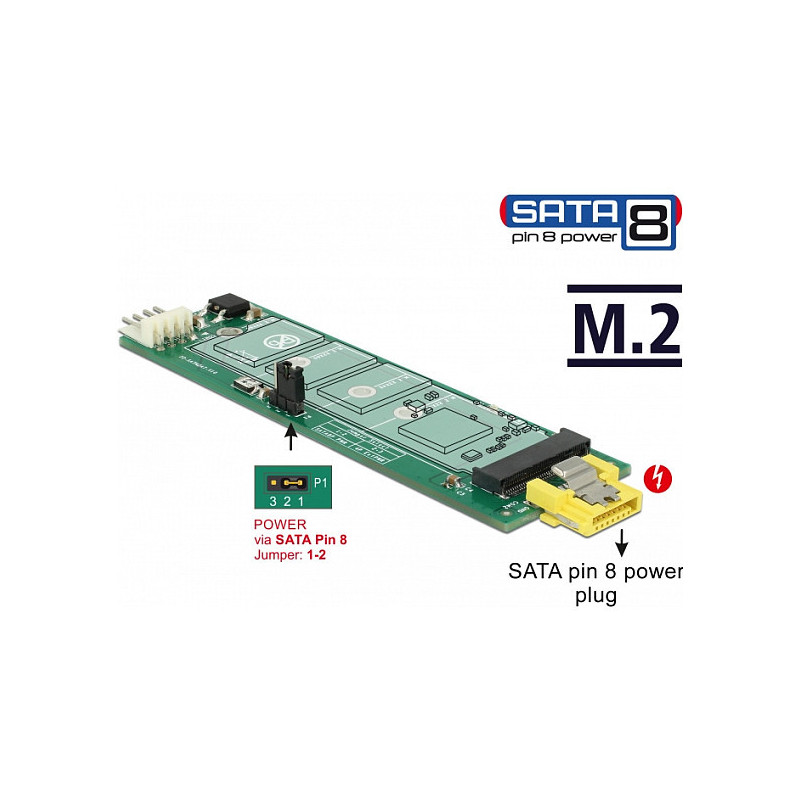

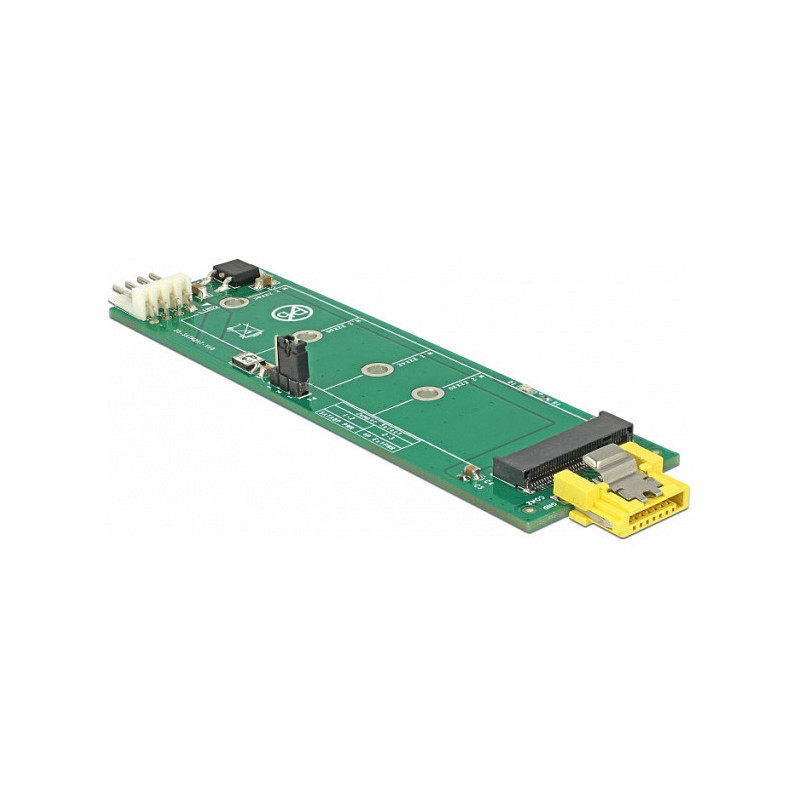

This converter by Delock enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format. The converter can be connected to a SATA pin 8 power plug and does not need an additional power supply. Additionally, the converter can be connected to a standard SATA port, then a power supply to the 4 pin power connector is needed.

Ports & interfaces

Host interface: SATA
Output interface: M.2
Number of M.2 (B) slots: 1
Peripheral (Molex) power connectors (4-pin): 1

Design

Feature: Internal
LED indicators: Activity, Power

Features

Data transfer rate (max): 6 Gbit/s

System requirements

Windows operating systems supported: Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64

Weight & dimensions

Width: 30 mm
Depth: 114 mm
Height: 11 mm

Packaging data

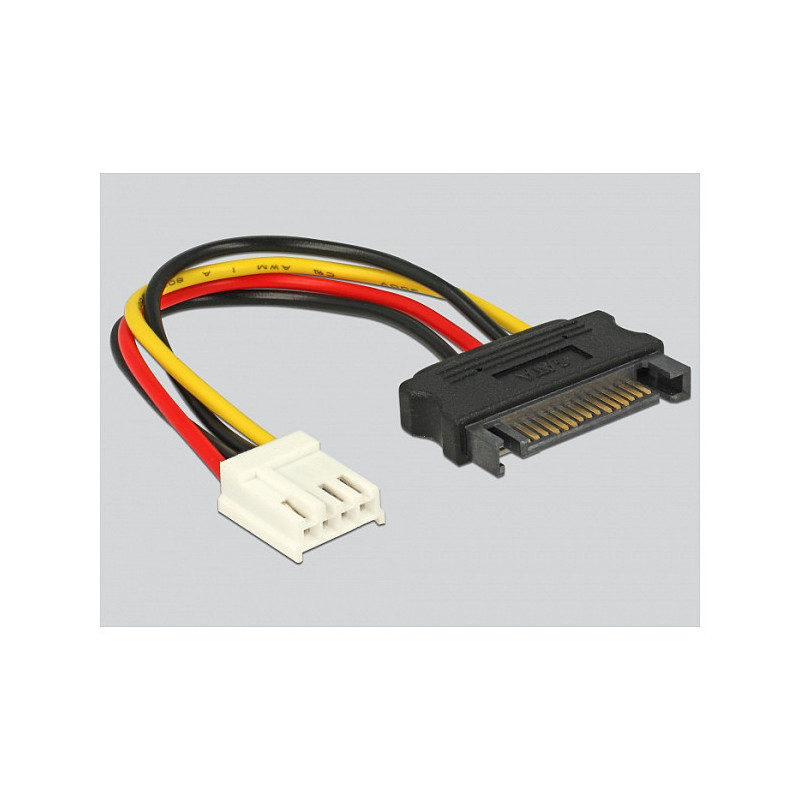

Cables included: DC
Feature: Manual

Logistics data

Harmonized System (HS) code: 84733020
