„DeLOCK 11500“ sąsajos šakotuvas

DeLOCK 11500. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 10000 Mbit/s, Maximum refresh rate: 144 Hz, Supported graphics resolutions: 3840 x 2160, 7680 x 4320. Power supply type: USB, Output voltage: 20 V, Output current: 5 A. Width: 57 mm, Depth: 66 mm, Height: 15 mm. Quantity per pack: 1 pc(s), Package type: Hanging box

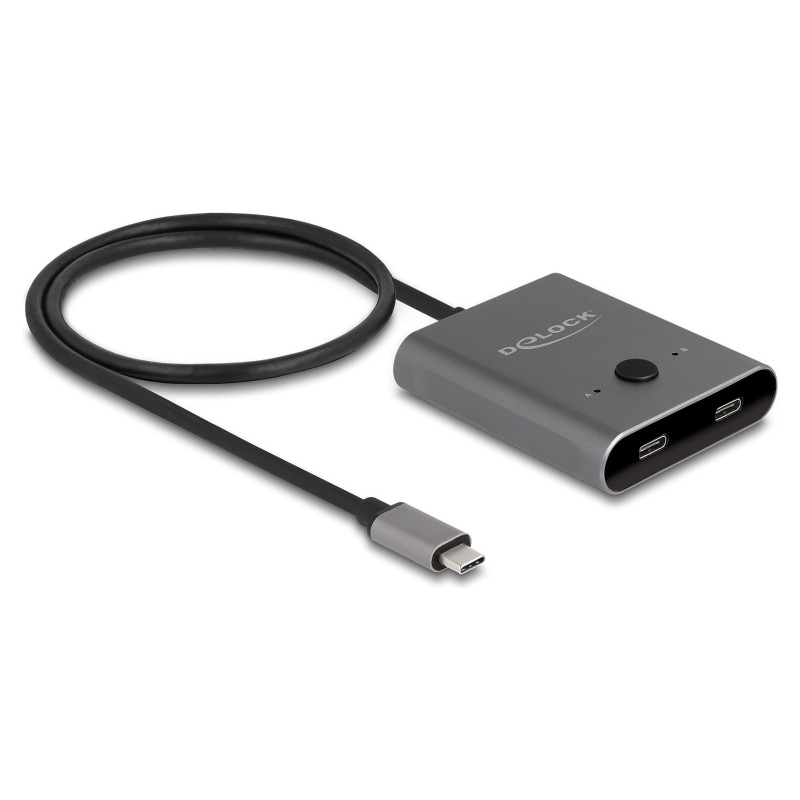

This USB Type-C™ switch by Delock is a manual bidirectional switch for connecting different devices with USB Type-C™ port. This switch offers two different applications.

Function 1
One USB Type-C™ device like a monitor or external storage can be connected to two computers. With the push of a button, you can select the computer that will be connected to the device.

Function 2
Two USB Type-C™ devices like a monitor or USB-PD charger can be connected to one computer. At the push of a button, the device that is connected to the computer can be selected.

Flexible use
The switch supports graphics signals with up to 8K resolution, USB-C™ with up to USB 10 Gbps data rate and Power Delivery with up to 100 W. This makes it flexible to use in a wide range of applications.

Note
Thunderbolt™ devices or cables are not supported.
Please use short length and high-quality cables, especially for higher resolutions.

Ports & interfaces

Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 3
Ports quantity: 4

Features

Data transfer rate: 10000 Mbit/s
Maximum refresh rate: 144 Hz
Supported graphics resolutions: 3840 x 2160, 7680 x 4320
Supported video modes: 1620p, 4320p
Product colour: Grey
Housing material: Metal
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HD type: 8K Ultra HD
LED indicators: Yes
Cable type: Round cable
Cable length: 0.5 m
Feature: Plug and Play
Country of origin: China

Power

Power supply type: USB
Output voltage: 20 V
Output current: 5 A

Weight & dimensions

Width: 57 mm
Depth: 66 mm
Height: 15 mm

Packaging data

Quantity per pack: 1 pc(s)
Package type: Hanging box

Packaging content

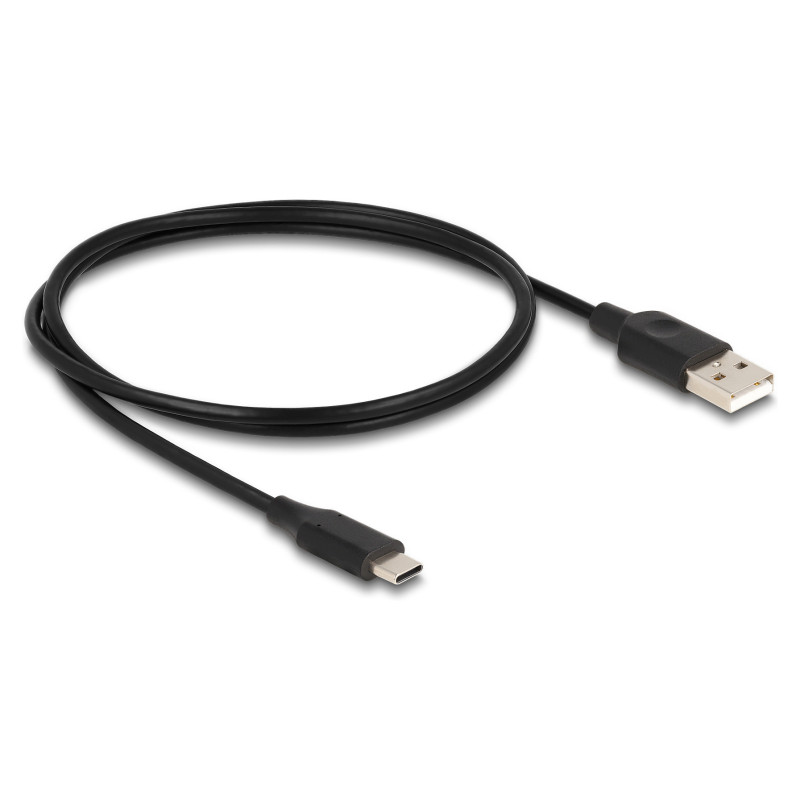

Cables included: USB Type-A to USB Type-C
Feature: Manual
