DeLOCK 11484 KVM jungiklis

DeLOCK 11484. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 8K Ultra HD, Maximum resolution: 7680 x 4320 pixels, Video bandwidth: 30 Hz. Product colour: Black, Housing material: Metal, Cable length: 1 m. Power source: AC, Input voltage: 100-240 V, AC input frequency: 50-60 Hz. Width: 75 mm, Depth: 243 mm, Height: 26 mm

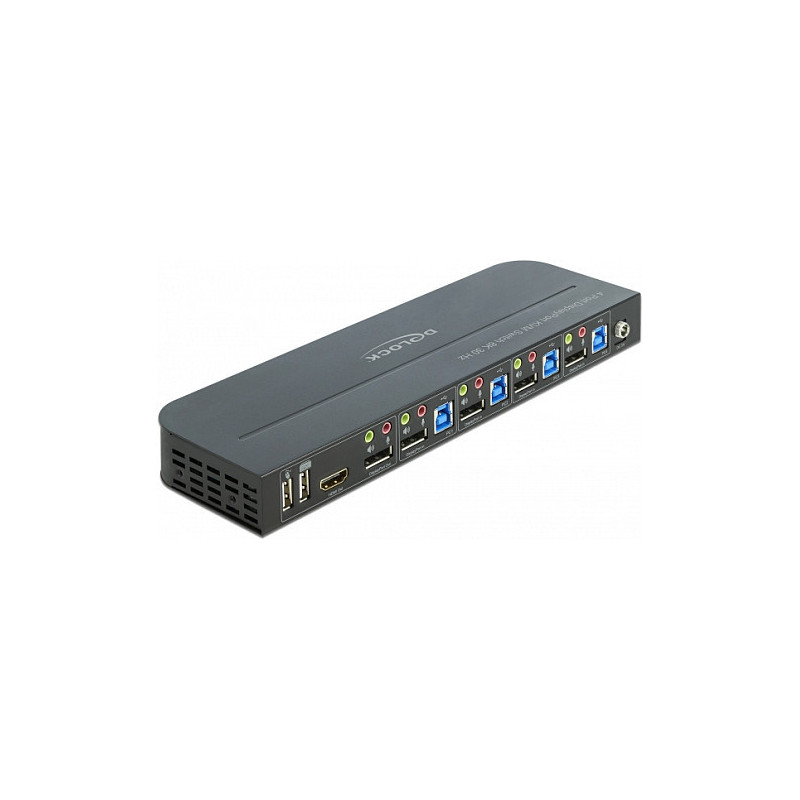

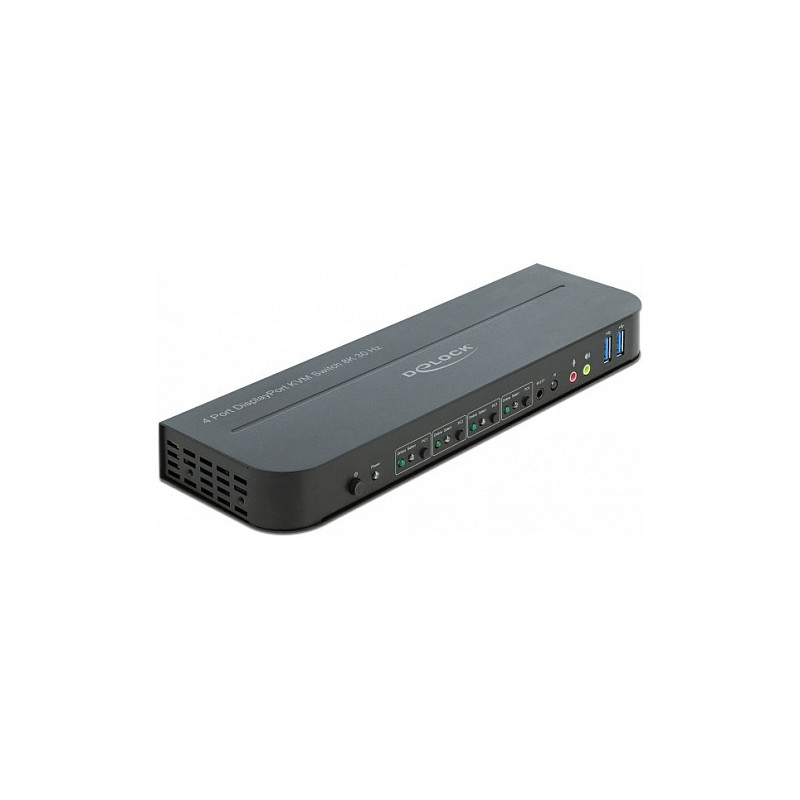

This KVM switch by Delock is a convenient solution for connecting four computers with DisplayPort output to one DisplayPort monitor.
Additionally there is an HDMI output for connection of two monitors, of which only one can be active at a time.

Peripheral devices
Furthermore, two USB 2.0 ports for a mouse and keyboard, and two USB 3.0 ports for a hard drive or USB memory can be connected.

Flexible Control
The active computer can be selected by mouse gesture, keyboard hotkey, button on the device or infrared remote control.

Multi-Stream Transport (MST)
With the support of MST (Multi-Stream Transport), multiple monitors can be used at the DisplayPort output with an optional MST hub.

Ports & interfaces

Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI/DisplayPort
HDMI ports quantity: 1
DisplayPorts quantity: 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
Console ports: DisplayPort, HDMI, USB A
Feature: Audio connections
Headphone outputs: 4
Number of microphone inputs: 8
Feature: DC-in jack

Performance

HD type: 8K Ultra HD
Maximum resolution: 7680 x 4320 pixels
Video bandwidth: 30 Hz
Feature: HDCP

Design

Product colour: Black
Housing material: Metal
Cable length: 1 m

Power

Power source: AC
Input voltage: 100-240 V
AC input frequency: 50-60 Hz
Input current: 0.6 A
Output voltage: 5 V
Output current: 3 A

Weight & dimensions

Width: 75 mm
Depth: 243 mm
Height: 26 mm

Packaging data

Package type: Box

Packaging content

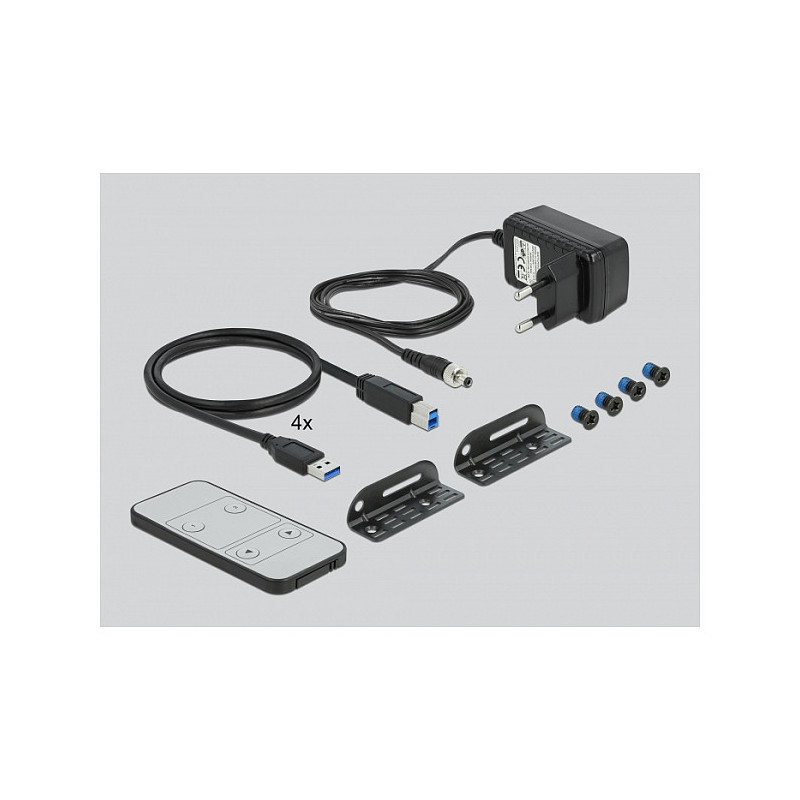

Cables included: USB Type-A to USB Type-B
Feature: Manual
Feature: AC adapter included

Logistics data

Harmonized System (HS) code: 85176200
Country of origin: China
