DeLOCK 11482 KVM jungiklis

DeLOCK 11482. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 8K Ultra HD, Maximum resolution: 7680 x 4320 pixels, Video bandwidth: 30 Hz. Product colour: Black, Housing material: Metal. Power source: AC, Input voltage: 100-240 V, AC input frequency: 50-60 Hz. Width: 75 mm, Depth: 178 mm, Height: 26 mm

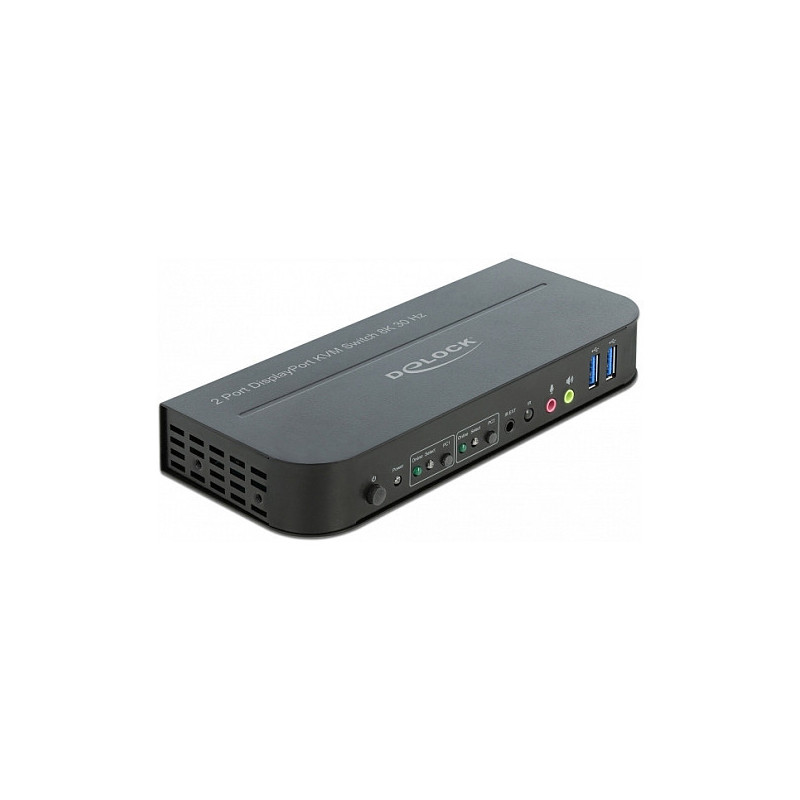

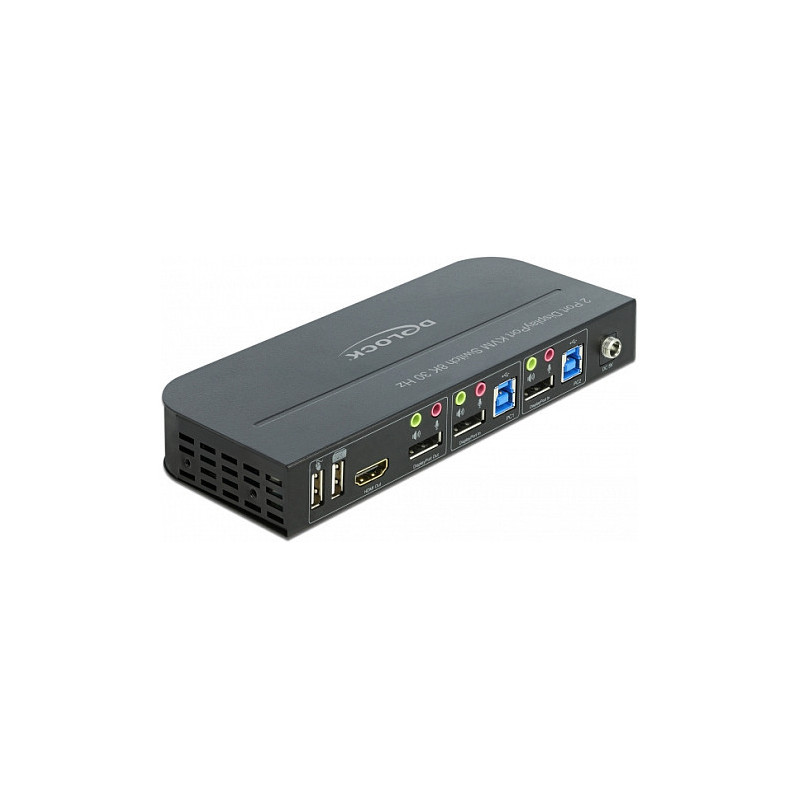

This KVM switch by Delock is a convenient solution for connecting two computers with DisplayPort output to a DisplayPort monitor.
Additionally there is an HDMI output for connection of two monitors, of which only one can be active at a time.

Peripheral devices
Furthermore, two USB 2.0 ports for a mouse and keyboard, and two USB 3.0 ports for a hard drive or USB memory can be connected.

Flexible Control
The active computer can be selected by mouse gesture, keyboard hotkey, button on the device or infrared remote control.

Multi-Stream Transport (MST)
With the support of MST (Multi-Stream Transport), multiple monitors can be used at the DisplayPort output with an optional MST hub.

Ports & interfaces

Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI/DisplayPort
HDMI ports quantity: 1
DisplayPorts quantity: 3
DisplayPort version: 1.4
Console ports: DisplayPort, HDMI, USB B
Feature: USB hub
USB 2.0 Type-A hub ports quantity: 2
USB connector type: USB Type-A, USB Type-B
Feature: Audio connections
Feature: DC-in jack

Performance

HD type: 8K Ultra HD
Maximum resolution: 7680 x 4320 pixels
Video bandwidth: 30 Hz
Feature: HDCP

Design

Product colour: Black
Housing material: Metal

Power

Power source: AC
Input voltage: 100-240 V
AC input frequency: 50-60 Hz
Output voltage: 5 V
Output current: 3 A

Weight & dimensions

Width: 75 mm
Depth: 178 mm
Height: 26 mm

Packaging data

Package type: Box

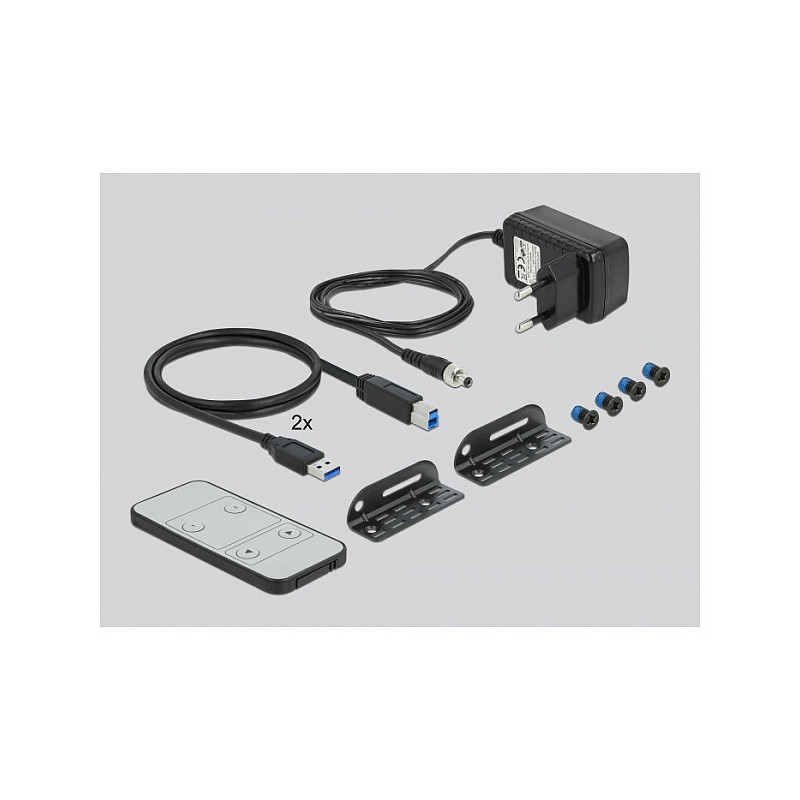

Packaging content

Cables included: USB
Feature: Manual
Feature: AC adapter included

Logistics data

Harmonized System (HS) code: 85176200
