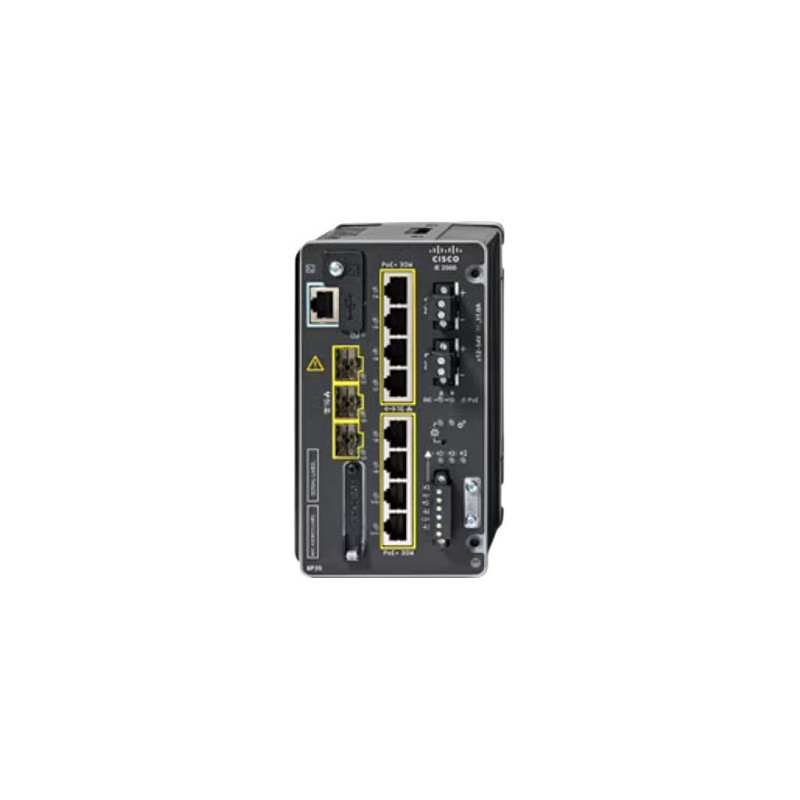

Cisco Katalizatorius IE-3500-8P3S-A tinklo komutatorius

Cisco Catalyst IE-3500-8P3S-A. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 24000 entries. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 12 - 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting

The Cisco IE3500 Rugged Series switches deliver high bandwidth, higher power and feature rich switching performance in a rugged and modular form factor. The Cisco IE3500 Rugged Series are designed with features that enable the industrial network infrastructure to seamlessly accommodate machine vision use cases, AI-driven analysis, virtualization, large scale networks, robust security, and edge-to-cloud connectivity.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack

Network

Feature: Link aggregation
Feature: Spanning tree protocol
Number of VLANs: 1024

Data transmission

MAC address table: 24000 entries

Security

DHCP features: DHCP server, DHCP snooping
Feature: IGMP snooping
IGMP entries: 1024

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Product colour: Black
Feature: DIN rail mounting

Performance

Memory type: DRAM
Internal memory: 8000 MB

Power

Power source: DC
Feature: Power supply included
DC input voltage: 12 - 54 V
Input current: 11 A
Power consumption (typical): 32 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 8
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 240 W
Total Power over Ethernet (PoE) budget: 360 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 134.4 mm
Depth: 152.4 mm
Height: 88.4 mm
Weight: 1.77 kg
