ATEN VE812 AV ilgintuvas

ATEN HDMI Extender over 1 CAT5e/6 Cable (100m) ,4Kx2K, 3 level cascadable / HDBaseT. Type: AV transmitter & receiver, Maximum resolution: 4000 x 2000 pixels, Cable types supported: Cat5e. Operating voltage: 5.3 V. Receiver dimensions (WxDxH): 103 x 141.7 x 30 mm, Receiver weight: 400 g, Transmitter dimensions (WxDxH): 103 x 141.7 x 30 mm

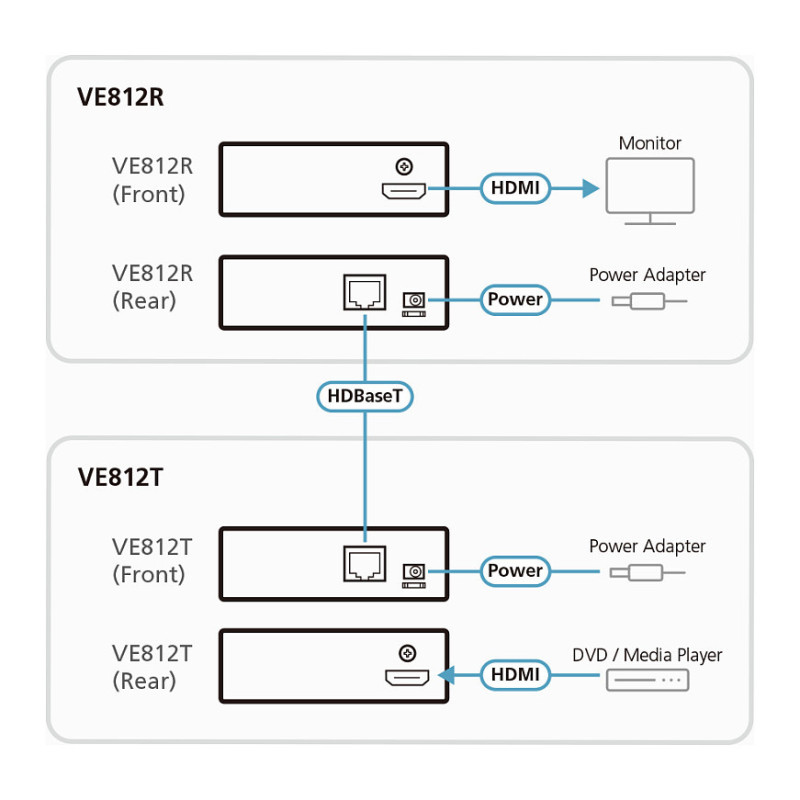

The VE812 HDMI HDBaseT Extender enables an HDMI display to be located up to 100 meters away from the source device. It can be conveniently extended using only one Cat 5e cable, which is cost-effective.

The VE812 supports HDMI (3D, Deep Color), Ultra HD (4k x 2k), and is HDCP compatible. Furthermore, the remote EDID pass-through ensures optimum video quality for any HDMI display.

The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.

Features

Type: AV transmitter & receiver
Maximum resolution: 4000 x 2000 pixels
Cable types supported: Cat5e
Maximum transfer distance: 100 m
LED indicators: Yes
Supported video modes: 1080p
Product colour: Black

Ports & interfaces

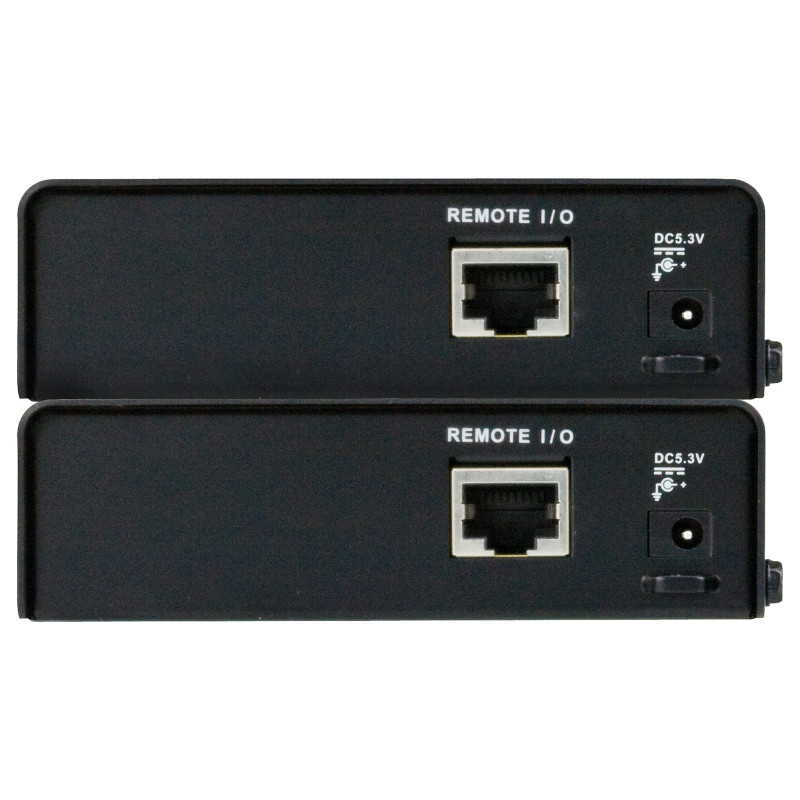

RJ-45 input ports: 1
RJ-45 output ports: 1

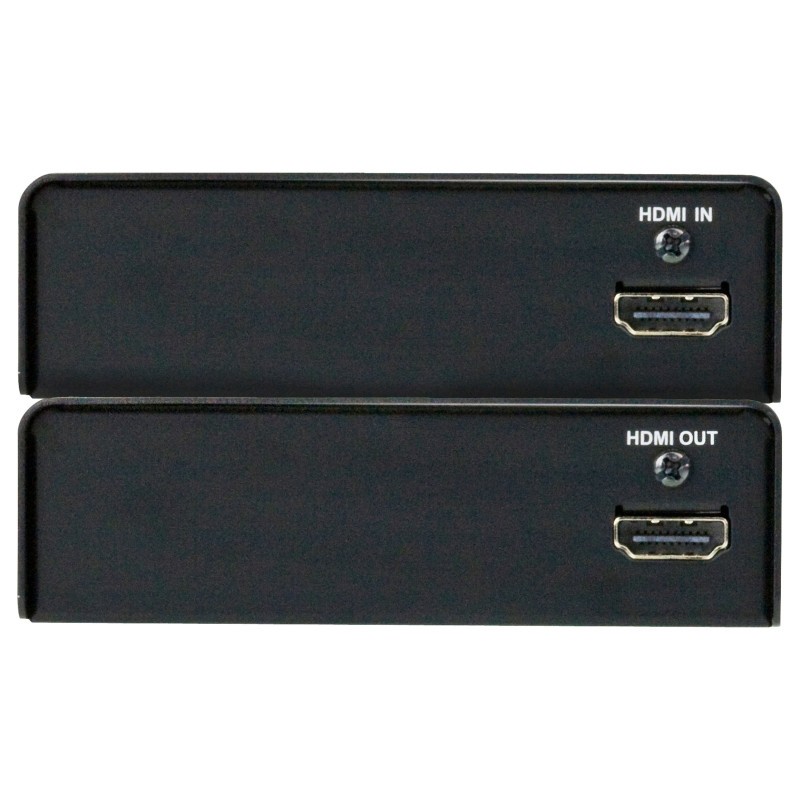

HDMI in: 1
Number of HDMI outputs: 1
Feature: DC-in jack

Power

Operating voltage: 5.3 V
Feature: External power adapter

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Receiver dimensions (WxDxH): 103 x 141.7 x 30 mm
Receiver weight: 400 g
Transmitter dimensions (WxDxH): 103 x 141.7 x 30 mm
Transmitter weight: 400 g

Technical details

Compliance certificates: RoHS
