ATEN VE801T AV plėtinys

ATEN HDMI HDBaseT-Lite (Class B) Transmitter (70m). Type: AV transmitter, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Power consumption (typical): 1.85 W. Dimensions (WxDxH): 87 x 103 x 30 mm, Weight: 240 g

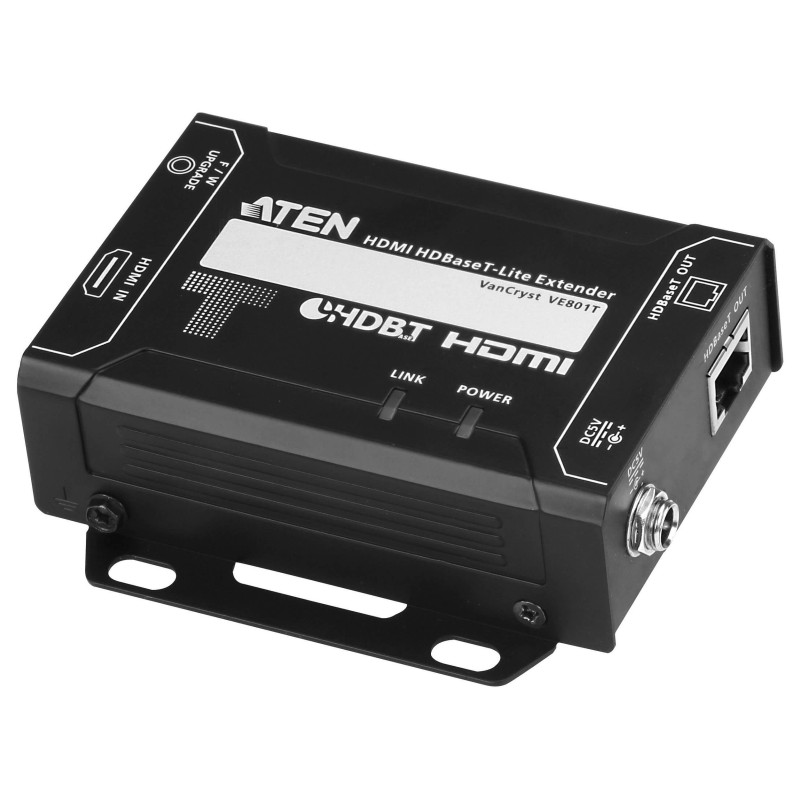

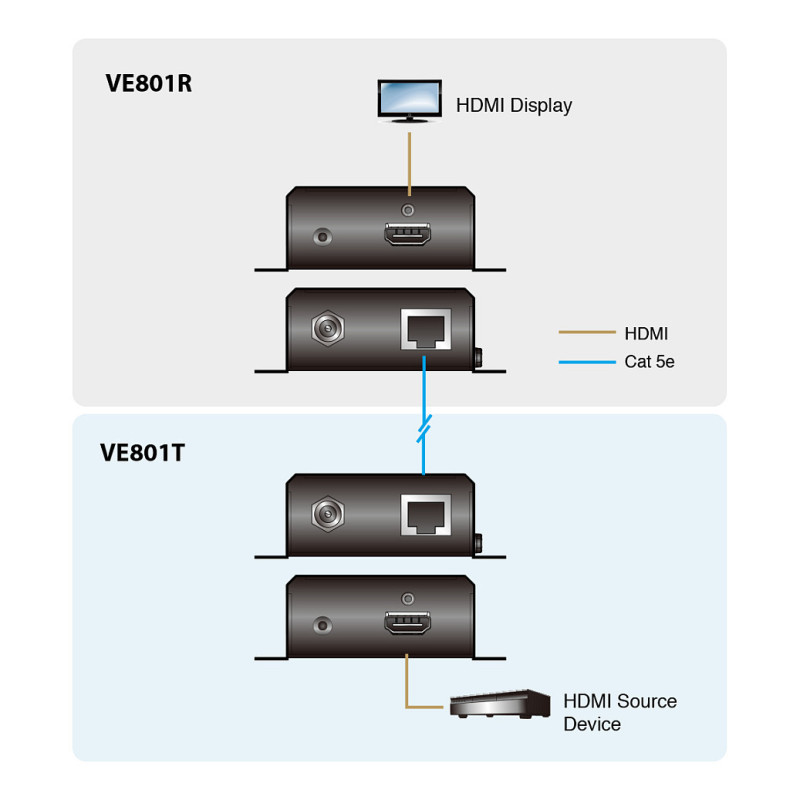

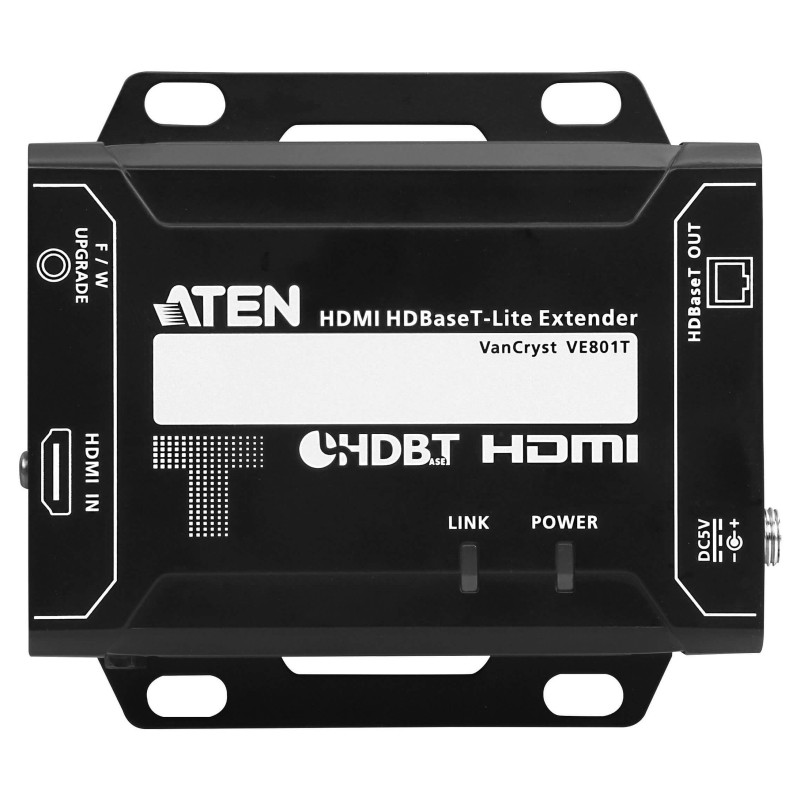

The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances.

* Compatible HDBaseT Receiver Units: VE801R

Features

Type: AV transmitter
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat5e, Cat6, Cat6a
Maximum transfer distance: 70 m
LED indicators: Yes
Supported video modes: 1080p
Bandwidth: 340 MHz
Feature: HDCP
Material: Metal
Product colour: Black

Ports & interfaces

Feature: Ethernet LAN

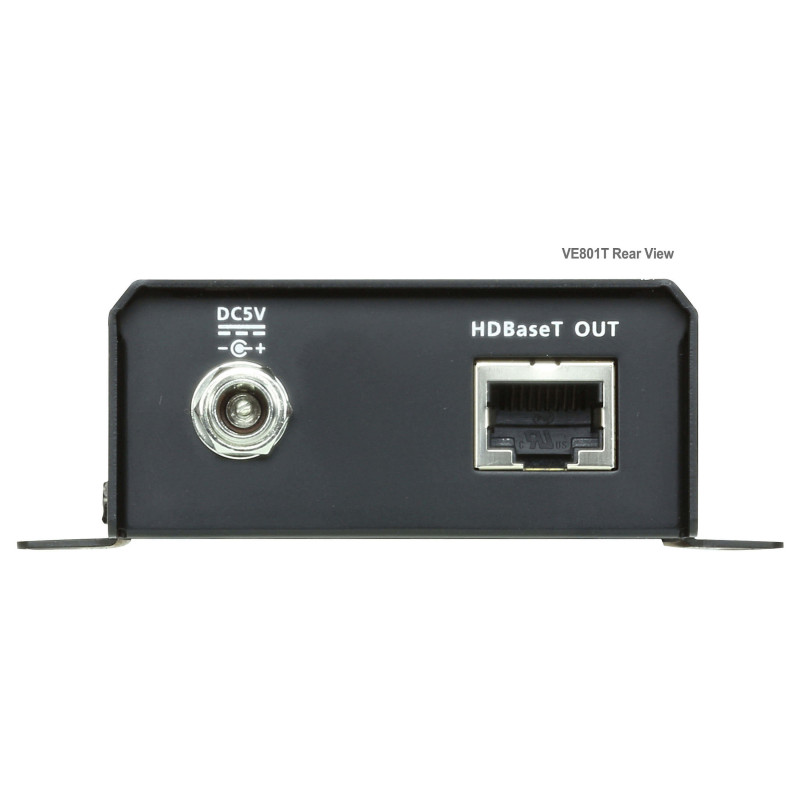

RJ-45 output ports: 1

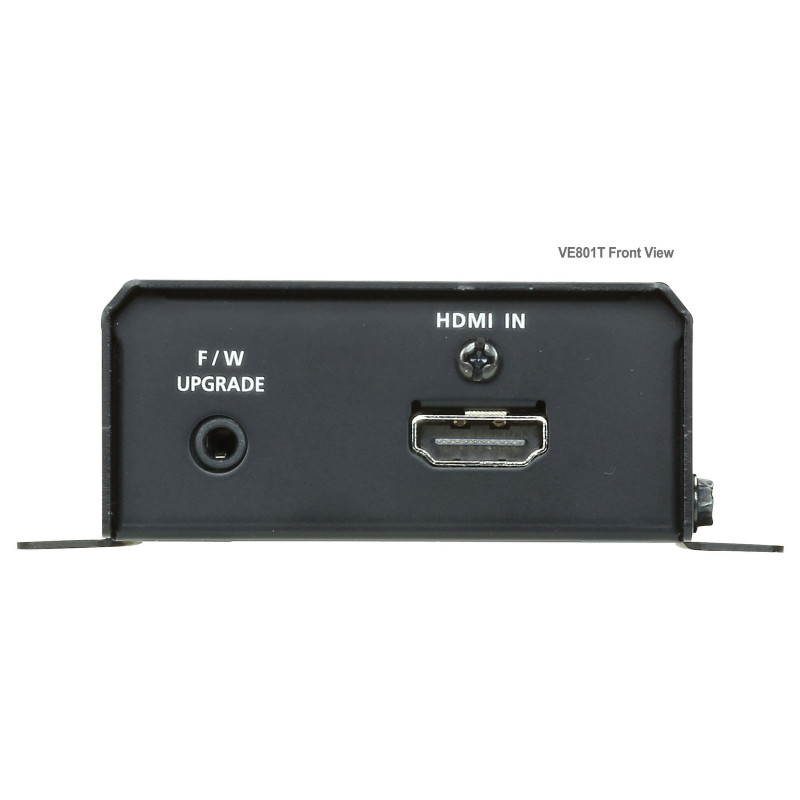

HDMI in: 1
Feature: DC-in jack

Power

Power consumption (typical): 1.85 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Dimensions (WxDxH): 87 x 103 x 30 mm
Weight: 240 g

Packaging content

Feature: AC adapter included

Technical details

Compliance certificates: RoHS
