ATEN US3312-AT KVM jungiklis

ATEN 2-Port USB-C 4K DisplayPort KVM Switch with Remote Port Selector. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K DCI, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.74 W. Width: 84.2 mm, Depth: 83.4 mm, Height: 29.9 mm

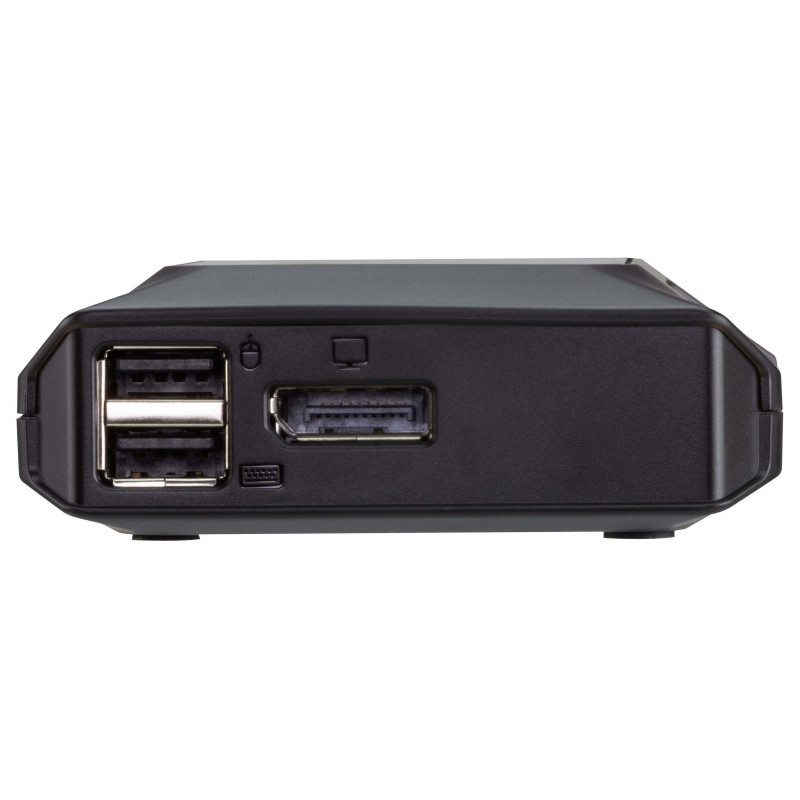

ATEN US3312 2-Port USB-C 4K DisplayPort KVM Switch with Remote Port Selector is developed for easy control and fast switch between two USB-C device sources from a single set of keyboard, mouse, and monitor. With cables coming already mounted on to it, the USB bus-powered US3312 supports two USB and one DisplayPort downstream ports, along with USB peripheral sharing capability. Containing a hook and an external remote port selector, the switch box can be placed anywhere to keep the workstation tidy while allowing users to instantly swap peripherals between the connected PCs and ensuring uninterrupted data transmission from a single user station. It supports resolutions up to True 4K (4096 x 2160 @ 60 Hz) to ensure that every detail of the video is displayed in the crisp and sharp UHD quality. The US3312 is a plug-and-play device that not only enhances the efficiency of multi-tasking, but also saves desktop space.

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPort version: 1.2
Console ports: DisplayPort, USB A
Console USB ports quantity: 2
Console DisplayPorts ports quantity: 1
USB connector type: USB Type-C

Performance

HD type: 4K DCI
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz

Design

Product colour: Black
Housing material: Plastic
Feature: Wired remote switch
Cable length: 1.2 m
Remote switch cable length: 1.8 m
LED indicators: Yes
Certification: true-4k

Power

Power source: DC
Input voltage: 5 V
Power consumption (typical): 0.74 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 84.2 mm
Depth: 83.4 mm
Height: 29.9 mm
Weight: 190 g

Packaging data

Package weight: 270 g

Packaging content

Packaging content: 1x 2-Port USB-C 4K DisplayPort KVM Switch with Remote Port Selector1x user instructions

Other features

Compatibility: VC925,VC965,VC985,VC986,UCE260,UCE60,UE250,UE150,2L-7D02DP,2L-7D03DP,VS194,VE901,VB905,VC986B,2L-7D03DP-1,2L-7D04DP,US3310,US3342,CS52DP

Logistics data

Country of origin: China
